Siemens HB510ABR1 built-in oven, stainless steel, A

Siemens

SAR 1,981.00
+ SAR 4,807.00 Air Shipping

Includes any applicable VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Description

Product Description
Siemens HB510ABR1, Built-in Oven
Highlights
- Reduce cooking time thanks to rapid heating.

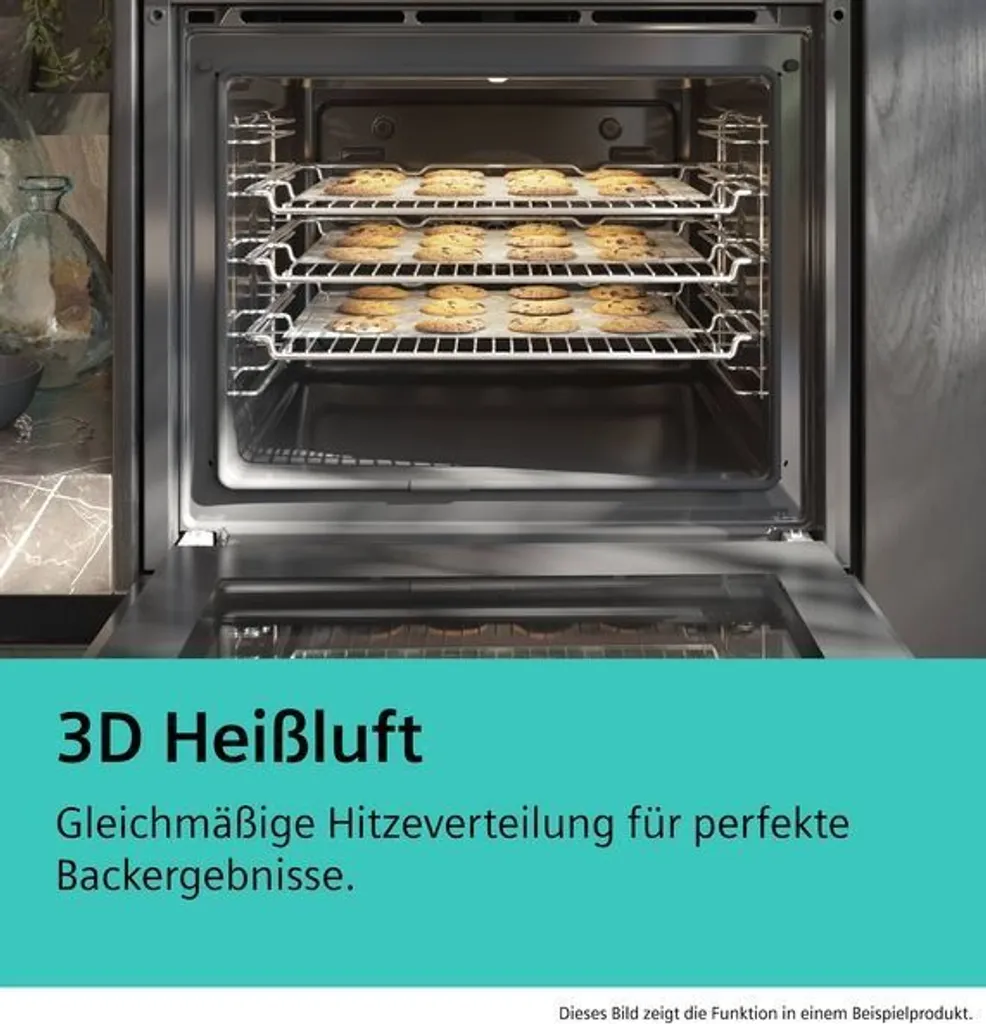

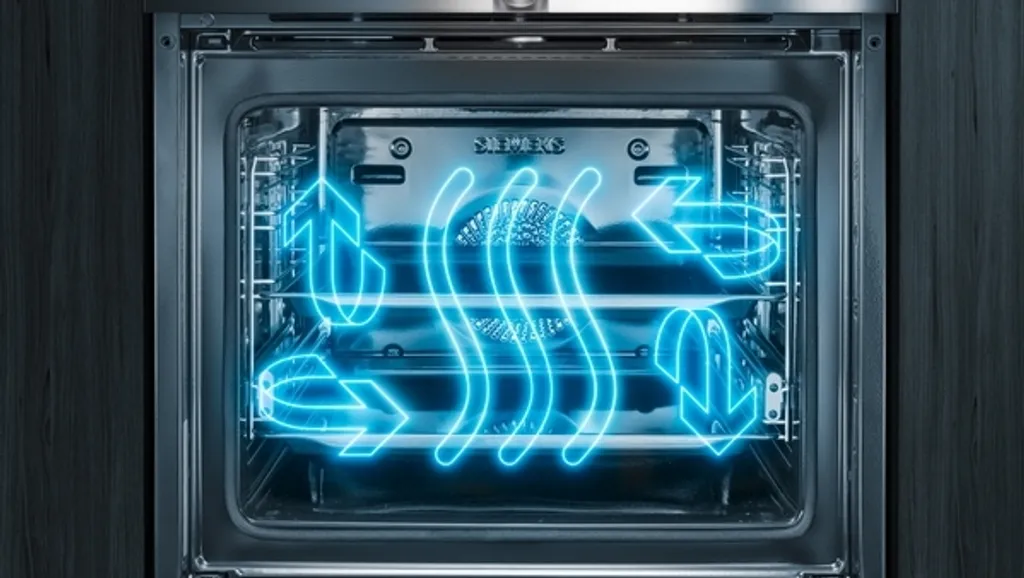

- 3D Hot Air: even heat on up to three levels. For excellent results.

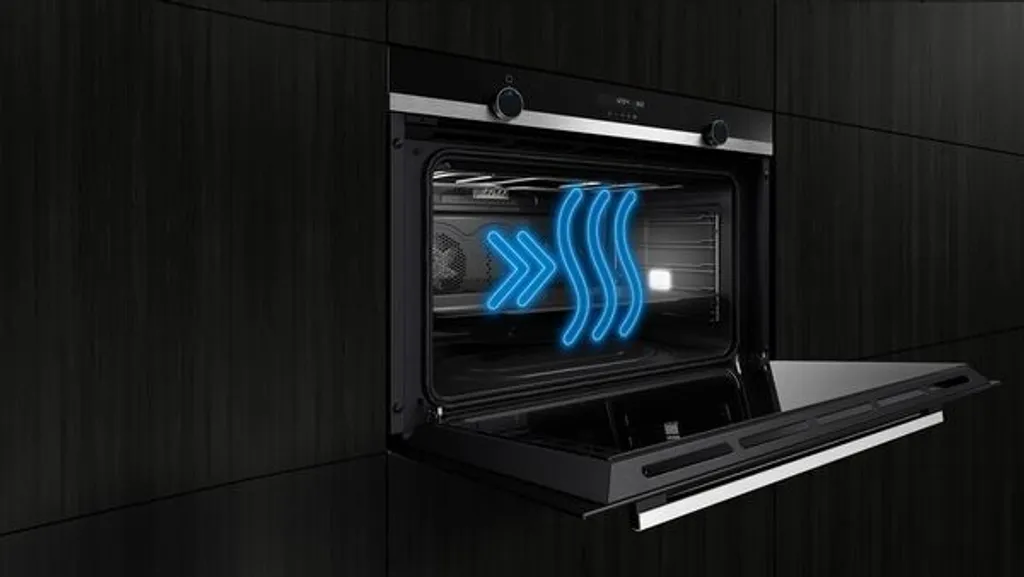

- Rapid heating: reaches the desired baking temperature faster.
Oven type and heating mode
Oven with 5 heating modes:
3D hot air, top/bottom heat, convection grill, large-area grill, gentle hot air
Temperature control from 50 °C - 275 °C
Oven capacity: 71 l
Accessory rack / pull-out system:
Shelf levels: 5
Pull-out system can be retrofitted
Design

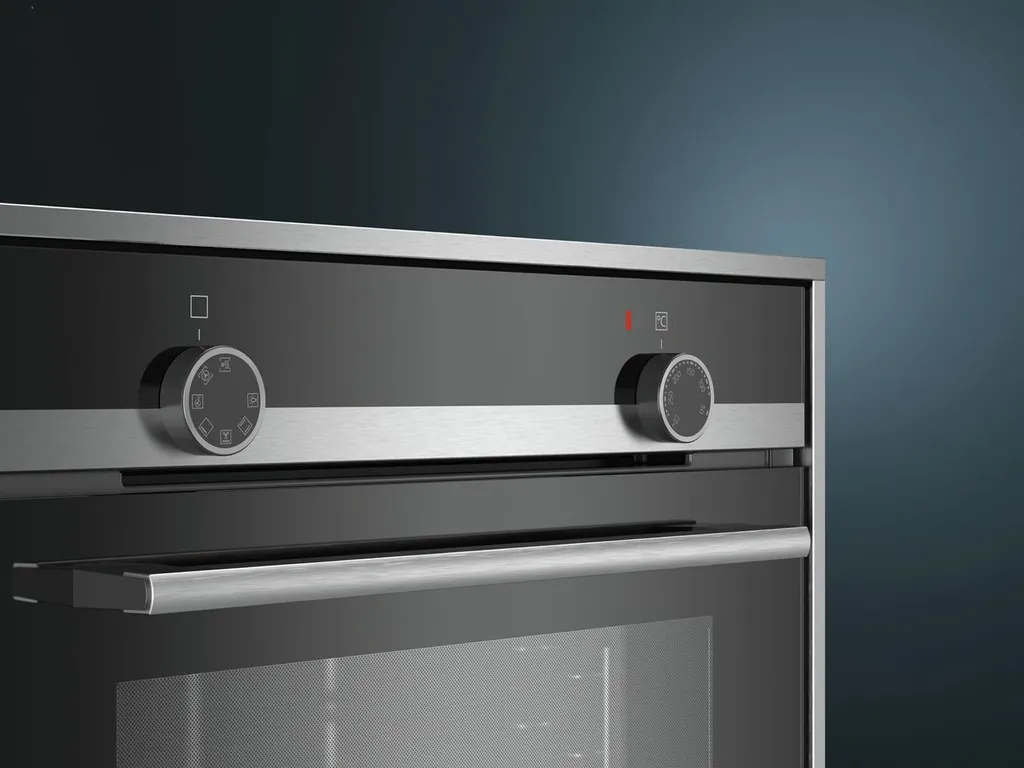

Rotary selector, round control knobs
Cleaning
Full glass inner door
Comfort
Visual heating indicator
Auto start
Metal handle
Rapid heating: Reaches the target temperature quickly without increased energy consumption
Halogen light
Cooling fan
Accessories

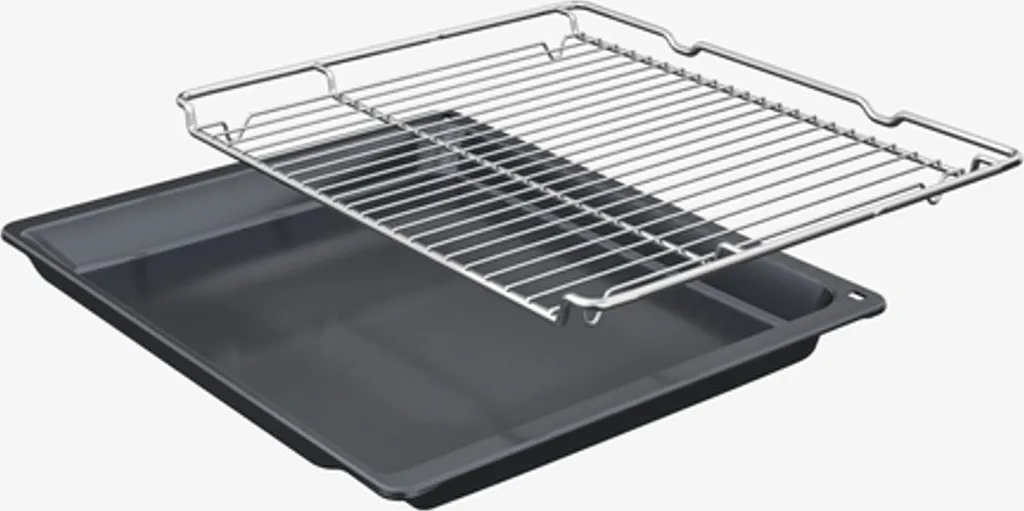

1 x combination rack, 1 x universal pan
Environment and safety
Very low window temperature
Triple-glazed door
Technical Info
Length of connection cable: 120 cm
Rated voltage: 220 - 240 V
Total electrical connection rating: 3.6 kW
em. Eu No. 65/2014): A (on a scale from A+++ to D)
Energy consumption per cycle in conventional mode: 0.97 kWh
Energy consumption per cycle in fan-assisted mode: 0.81 kWh
Number of cooking compartments: 1 Heat source: electric Interior volume: 71 l
Dimensions
Appliance dimensions (H x W x D): 595 x 594 x 548 mm
Niche dimensions (H x W x D): 595 mm x 560 mm x 550 mm

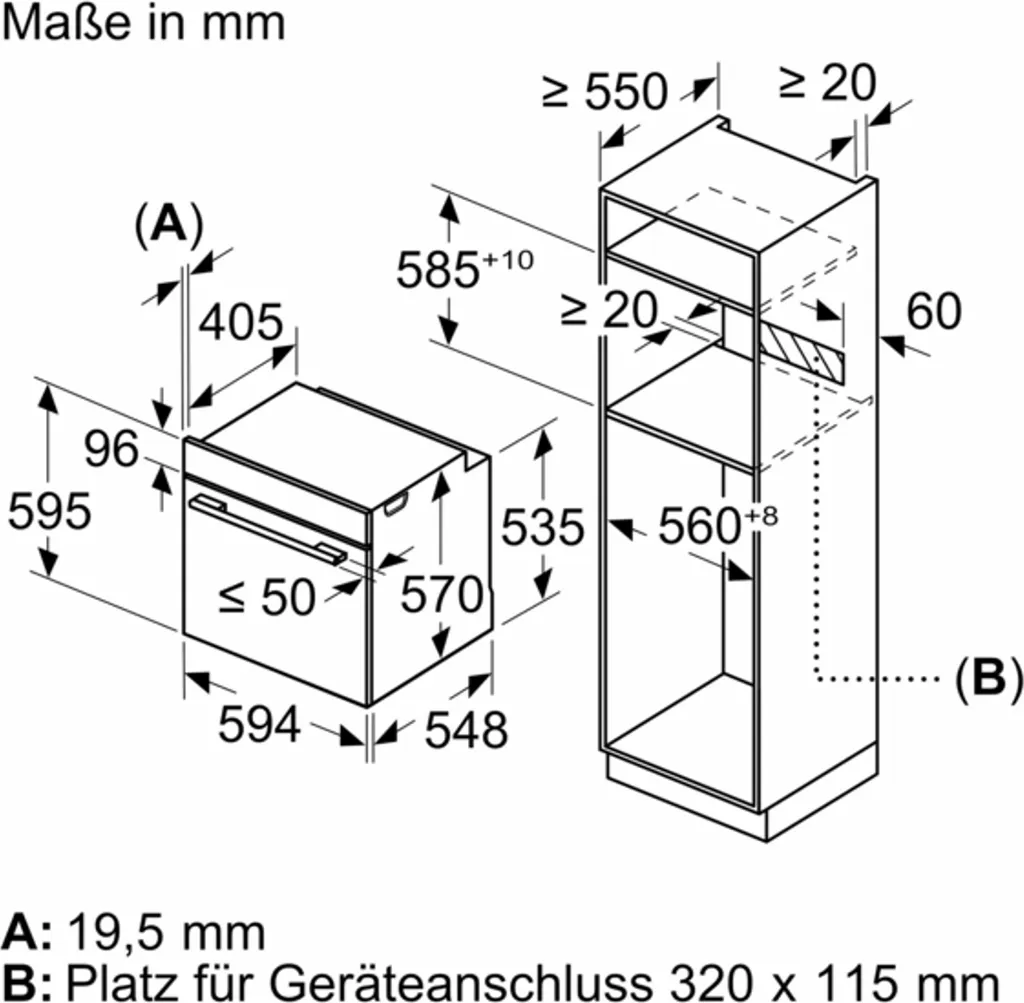

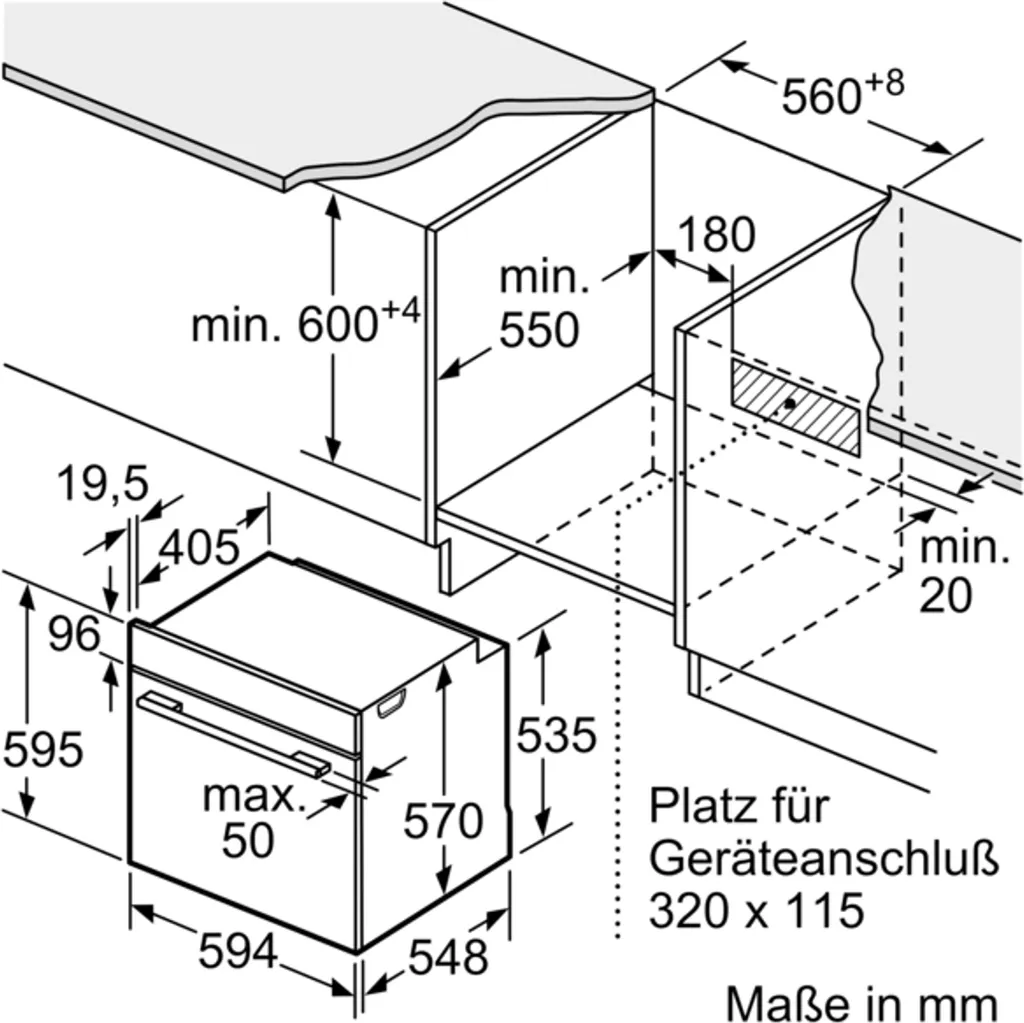

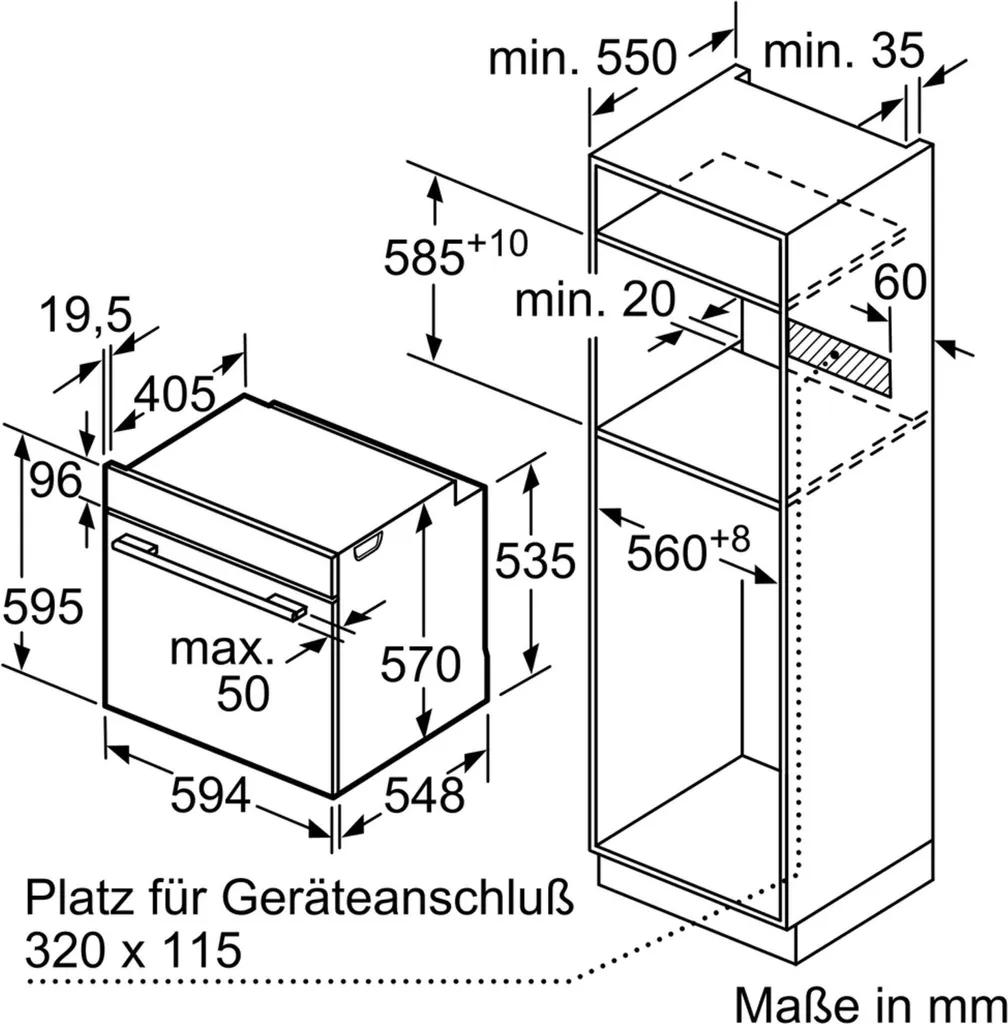

"Please refer to the technical drawing for dimensions and installation instructions for this appliance"
Technical Data
Product details
- Product group: Built-in oven
- Brand: Siemens
- Product name / family: Built-in oven
- Product series: iQ100
- International order designation: HB510ABR1
- Article number: HB510ABR1
- Ean number: 4242003839577
- Appliance color: Stainless steel
- Oven door color/material: Black
- Design: Built-in
- Controls: Mechanical
- Control panel material: Glass
- Control elements: Rotary knob; round
- Integrated hob controls: No
- Oven capacity: 71
- Door material: Glass
- Door hinge: Drop-down door
- Energy source: Electric
- Connected load: 3600 W
- Fuse rating: 16
- Voltage: 220-240 V
- Minimum voltage: 220 V
- Maximum voltage: 240 V
- Frequency: 50 60
- Minimum frequency: 50
- Maximum frequency: 60
- Connection cable length: 120.0 cm
- Plug type: Schuko/Gardy with grounding
- Product depth with door open (90°): 1040 mm
- Appliance height: 595 mm
- Interior depth: 415 mm
- Interior height: 357 mm
- Oven width: 480 mm
- Appliance width: 594 mm
- Appliance depth: 548 mm
- Packaged appliance height: 675 mm
- Packaged appliance width: 660 mm
- Packaged product depth: 690 mm
- Minimum niche height: 585 mm
- Maximum niche height: 595 mm
- Minimum niche width: 560 mm
- Niche width Maximum: 568 mm
- Niche depth: 550 mm
- Net weight: 32.4 kg
- Eprel Registration Number 2010: 166045
- Gross weight: 34.6 kg
- Energy type: Electric
- Operating modes: Large-area grill, hot air, gentle hot air, top/bottom heat, fan-assisted grill
- Number of interior spaces (2010/30/Ec): 1
- (2010/30/Eu): A
- Energy consumption per top/bottom heat cycle (2010/30/Ec): 0.97 kWh/cycle
- Energy consumption per hot air cycle (2010/30/Ec): 0.81 kWh/cycle
- Index (2010/30/Eu): 95.3 %
- Usable volume (of the interior) (2010/30/Ec): 71 l
- Net volume: 71 l
- Energy-efficient appliance, can optimize consumption (2017/1369/Eu): No
- Wireless communication possible: No
- Sim card slot available: No
- Type of control interface: No
- Remote upgrade option: No
- Remote update option for maintenance: No
- Voice control option: No
- Camera integrated: No
- Automatic program: No
- Display on the control panel: On the control panel
- Rotisserie with motor: No
- Fuse: No
- Included accessories: 1 x combination rack, 1 x universal pan
- Restore function: No
- Interior light: Yes
- Number of built-in lights: 1
- Interior light location: Top
- Cooking chamber material: Enameled Steel
- Integrated cleaning system: No
- Racks: 1
- External information system: No
- Side racks/shelves: Hanging rack
- Cooking levels: 5
- Timer: No preset timer
- Door opening type: Drop-down door
- Electronic clock: No
- Lockable door: No
- Interior lighting type: Round halogen lamp
- Baking tray guide: Grid
- Software update: No
- Number of baking trays: 1
Documents

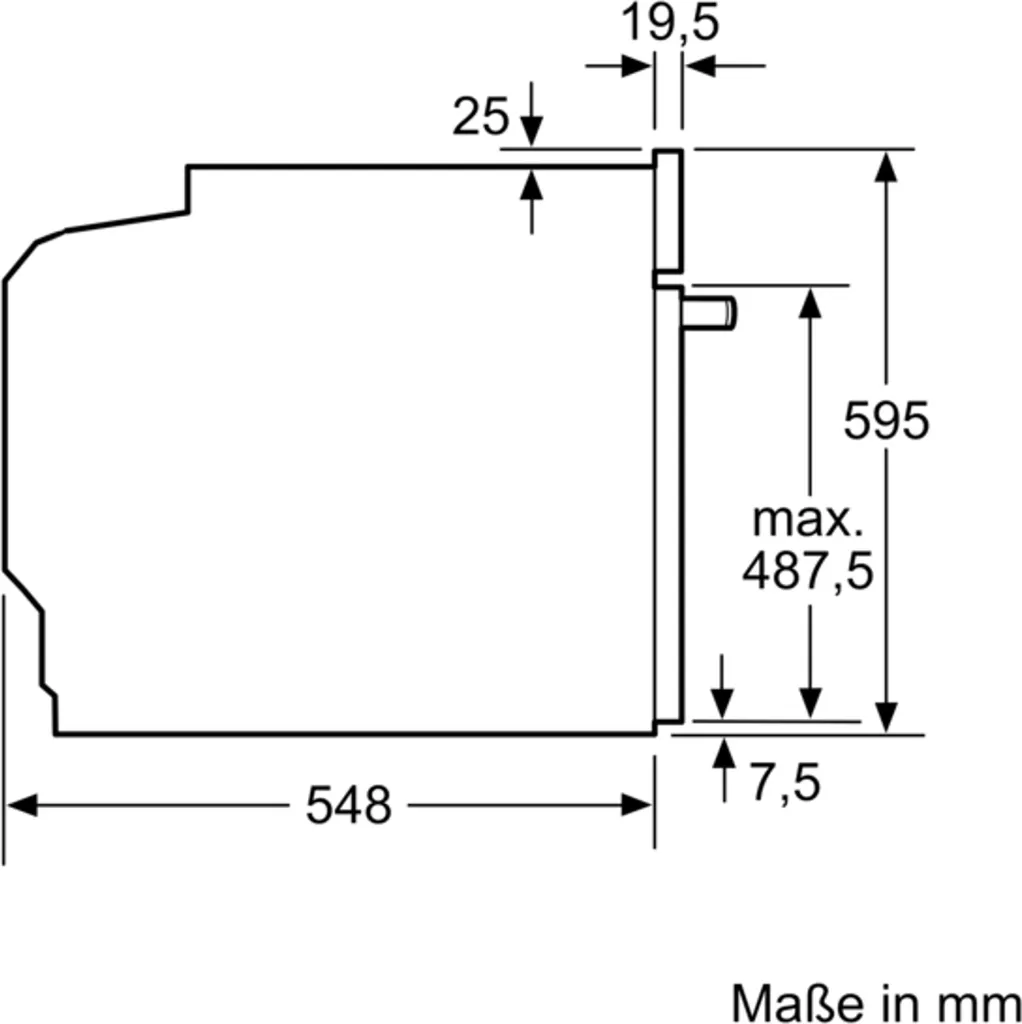

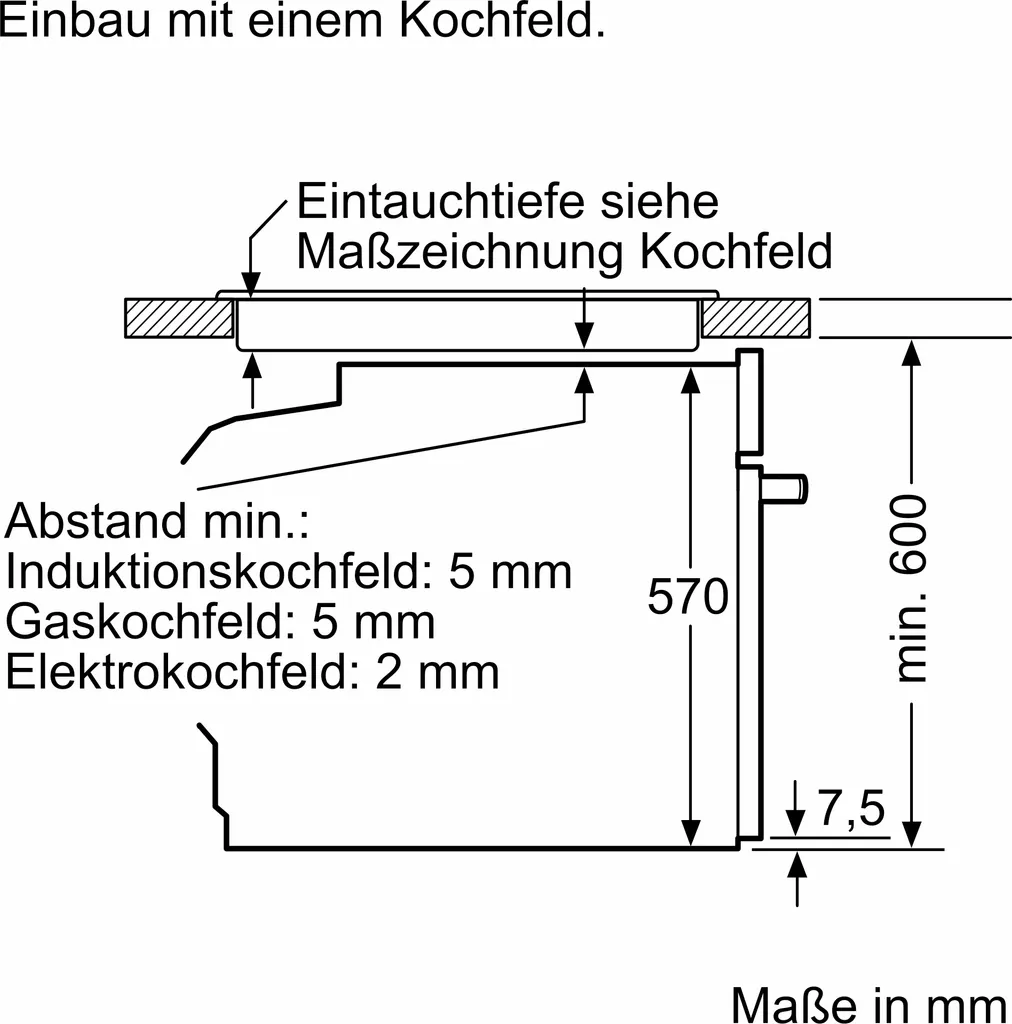

Dimensional drawings
Eu energy label
Features
Oven type and heating mode
Oven with 5 heating modes: 3D hot air, top/bottom heat, fan grill, large-area grill, gentle hot air
Temperature control from 50 °C - 275 °C
Oven capacity: 71 l
Accessory rack / pull-out system:
Shelf levels: 5
Extension retrofittable
Design
Rotary selector, round control knobs
Cleaning
Full glass inner door
Comfort
Visual heating control
Auto start
Metal handle
Rapid heating: Quickly reaches target temperature without increased energy consumption
Halogen light
Cooling fan
Accessories
Combination rack
1 x universal pan
Environment and safety
Very low window temperature
Triple door glazing
Technical information
Length of connection cable: 120 cm
Rated voltage: 220 - 240 V
Total electrical connection rating: 3.6 kW
em. Eu No. 65/2014): A (on a scale from A+++ to D)
Energy consumption per cycle in conventional mode: 0.97 kWh
Energy consumption per cycle in fan-assisted mode: 0.81 kWh
Number of cooking compartments: 1
Heat source: electric
Interior volume: 71 l
Dimensions
Appliance dimensions (H x W x D): 595 x 594 x 548 mm
Niche dimensions (H x W x D): 595 mm x 560 mm x 550 mm
"Please refer to the technical drawing for dimensions and installation instructions for this appliance"
Product series
: iQ100
Appliance color
: Stainless steel
Air fry function
: No
Product base color
: Gray
Oven door color / material
: Black
Design
: Built-in
Control
: Mechanical
Control Panel Material
: Glass
Control Elements
: Rotary Control
Integrated Hob Control Units
: No
Oven Capacity
: 71
Door Material
: Glass
Door Hinge
: Drop-Down Door
Energy Source
: Electric
Connected Load
: 3600 W
Fuse Rating
: 16
Voltage
: 220-240 V
Minimum Voltage
: 220 V
Maximum Voltage
: 240 V
Frequency
: 50; 60
Minimum frequency
: 50
Maximum frequency
: 60
Connection cable length
: 120 cm
Plug type
: Schuko/Gardy with grounding
Product depth with door open (90°)
: 104 cm
Appliance height
: 59.5 cm
Interior depth
: 41.5 cm
Interior height
: 35.7 cm
Oven width
: 48 cm
Appliance width
: 59.4 cm
Appliance depth
: 54.8 cm
Packaged height
: 67.5 cm
Packaged width
: 66 cm
Packaged depth
: 69 cm
Niche height Minimum niche height: 58.5 cm; Maximum niche height: 59.5 cm; Minimum niche width: 56 cm; Maximum niche width: 56.8 cm; Niche depth: 55 cm; Net weight: 32.7 kg; Gross weight: 34.2 kg; Energy type: Electric; Operating modes: Large-area grill, hot air, gentle hot air, top/bottom heat, fan-assisted grill; Eprel Registration Number 2010: 166045; Energy consumption per top/bottom heat cycle (2010/30/Ec): 0.97 kWh/cycle; Energy consumption per hot air cycle (2010/30/Ec): 0.81 kWh/cycle kWh/cycle
index (2010/30/Eu)
: 95.3 %
Usable volume (of the interior) (2010/30/Ec)
: 71 l
Net volume
: 71 l
Energy-smart appliance, can optimize consumption behavior (2017/1369/Eu)
: No
Wireless communication possible
: No
Network broadband technology
: Not applicable
Type of interface for control
: No
Remote upgrade capability
: No
Remote update capability for maintenance
: No
Voice control capability
: No
Camera integrated into the appliance
: No
Automatic program
: No
Display on the front panel
: On the control panel
Rotisserie with Motor: No Fuse: No Included Accessories: 1 x Combination Rack, 1 x Universal Pan Restore Function: No Interior Lighting: Yes Interior Lighting Location: Top Oven Interior Material: Enameled Steel Integrated Cleaning System: No Side Racks/Shelves: Hanging Rack Timer: No Door Opening Type: Drop-Down Door Electronic Clock: No Lockable Door: No Interior Lighting Type: Round Halogen Lamp Baking Tray Guide: Grid Software Update: No bsh-group.com/Product_Shots/3000x3000/27132401_HB510ABR1_PGA8_def.jpg
bsh-group.com/Documents/eudatasheet/de-De/HB510ABR1.pdf
bsh-group.com/Product_Shots/3000x3000/MCSA02289636_271_HE510ABR0_FullSizeCooker_Siemens_PGA2_def.jpg
bsh-group.com/Product_Shots/3000x3000/20271876_CB734G1B1_PGA6_def.jpg[De]
COMBINED_NOMENCLATURE_CODE: 85166080
RECYCLING_WEIGHT_CARDBOARD: 0.970
RECYCLING_WEIGHT_EPS: 0.000
RECYCLING_WEIGHT_PLASTIC: 0.139
RECYCLING_WEIGHT_WOOD: 0.270
RECYCLING_WEIGHT_OTHER: 0.100
RECYCLING_WEIGHT_PACKAGING: 1.479
Highlights
Optimal for the best baking results:
Whether cakes, cookies or pizza, whether on one, two or three baking trays at the same time: The innovative heat distribution in the oven ensures perfect results.
Drop-down door
Ease of use thanks to the convenient opening and closing of the drop-down door.
Faster to the desired baking temperature: rapid preheating.
The switchable rapid preheating function heats the oven up particularly quickly - without increased energy consumption. For example, it preheats to a temperature of 175°C in approximately 5 minutes (using the 3D hot air heating mode).
Oven type and heating modes
Oven with 5 heating modes:
3D hot air plus, top/bottom heat, convection grill system, large-area grill, gentle hot air
Temperature control from 50°C - 275°C
Oven capacity: 71 l
Accessory rack / pull-out system
Pull-out system can be retrofitted (see optional accessories)
Design
lightControl operating concept - for easy operation
Cleaning
Full glass inner door
Comfort
Drop-down door
Rapid heating
Halogen interior lighting
Cooling fan
Solid stainless steel oven handle
Accessories
1 x combination rack, 1 x universal pan
Environment and safety
Low door temperature
Technical information:
Power cord length: 120 cm
Rated voltage: 220 - 240 V
Total electrical connection rating: 3.6 kW
em. Eu No. 65/2014):
(on a scale from A+++ to D)
Energy consumption per cycle in conventional mode: 0.97 kWh
Energy consumption per cycle in fan-assisted mode: 0.81 kWh
Number of cooking compartments: 1
Heat source: electric
Interior volume: 71 l
Dimensions
Appliance dimensions (H x W x D): 595 x 594 x 548 mm
Niche dimensions (H x W x D): 595 mm x 560 mm x 550 mm
"Please refer to the technical drawing for dimensions and installation instructions for this appliance"
Product group
Built-in oven
Energy source
Electric
Installation type
Integrated
Door hinge
Bottom
Appliance dimensions (H x W x D)
595 x 594 x 548 mm
Niche dimensions (H x W x D)
595 x 560 x 550 mm
Top and bottom heat
Additional operating mode: Hot air
Additional operating mode: Grill
Control element
Rotary knob, round
Connection cable length
120 cm
Fuse rating
16 A
Electrical connection rating
3600 W
Voltage
220-240 V
Siemens HB510ABR1 iQ100 Built-in oven, stainless steel
3D hot air: even heat on up to three levels. For excellent results.
Rapid heating: reaches the desired baking temperature faster.
Oven type and heating mode
Oven with 5 heating modes: 3D hot air, top/bottom heat, fan grill, large-area grill, gentle hot air
Temperature control from 50 °C - 275 °C
Oven capacity: 71 l
Accessory rack / pull-out system:
Shelf levels: 5
Pull-out system can be retrofitted
Design
Rotary selector, round control knobs
Cleaning
Full glass inner door
Comfort
Visual heating indicator
Auto start
Metal handle
Rapid heating: Reaches the target temperature quickly without increased
energy consumption
Halogen light
Cooling fan
Accessories
1 x combination rack, 1 x universal pan
Features
Oven with 5 heating modes:
3D hot air plus, top/bottom heat, Convection grill system, large-area grill, gentle hot air
Temperature control from 50 °C - 275 °C
Oven capacity: 71 l
Telescopic rails can be retrofitted (see optional accessories)
Rotary selector
Full glass inner door
Drop-down door
Rapid heating
Halogen interior lighting
Cooling fan
Solid stainless steel oven handle
Safety
Low door temperature
Appliance dimensions (H x W x D): 595 x 594 x 548 mm
Niche dimensions (H x W x D): 595 mm x 560 mm x 550 mm
Perfect baking results on up to 3 levels thanks to innovative heat distribution - 3D hot air plus.
Whether cakes, cookies or pizza, whether on one, two or three baking trays at the same time: The innovative heat distribution in the oven ensures perfect results.
Faster Rapid heating to the desired baking temperature.
The switchable rapid heating function heats the oven up particularly quickly – without increased energy consumption. The waiting time until your oven is ready is reduced to a minimum. High-quality coating for easy cleaning - granite gloss enamel. High-quality coating for easy cleaning. Number of ovens: Oven size: Medium Oven type: Electric oven Total oven capacity: 71 l Net oven capacity: 71 l Grill: Fan-assisted operation: Warming function: Keep-warm function: Top and bottom heat: Rapid heating: Oven thermostat range: 50 - 275 °C Maximum temperature (convection): 275 °C Conventional heating (top/bottom heat): Maximum temperature (conventional): 275 °C Number of cooking programs: Appliance placement: Integrated
Product color:
Black, stainless steel
Control:
Rotary knob
Control position:
Front
Retractable knobs:
Door hinge:
Down
Door material:
Glass
Number of glass door panels:
Cooling door:
Door cooling fan:
Maximum ambient temperature:
50 °C
Effective shelf area:
1290 cm²
Cable length:
1.2 m
Energy consumption (conventional):
0.97 kWh
Energy consumption (forced convection):
0.81 kWh
Connected load:
3600 W
Ac input voltage:
220 - 240 V
Energy Efficiency Index (Eei):
95.3
Current:
16 A
lt):
Interior lighting:
Lamp type:
Halogen
Installation space width:
56 cm
Installation space depth:
55 cm
Installation space height:
58.5 cm
Width:
594 mm
Depth:
548 mm
Height:
595 mm
Weight:
31.3 kg
Depth with door open:
104 cm
Interior dimensions (W x D x H):
480 x 415 x 357 mm
Width in cm:
59.4
Total usable capacity in liters:
Main oven heating type:
Top/bottom heat + fan-assisted
Height in cm:
59.5
Oven operating mode:
electric
Depth in cm:
56.8
Design:
Built-in
Front decor:
Glass decor
Product type:
Oven
Number of ovens:
Single oven
Heat protection door:
Energy consumption convection/hot air in kWh:
0.81
Energy consumption conventional heating in kWh:
0.97
Dimensions in cm (W x H x D):
Oven type and heating method: Oven with 5 heating methods: 3D hot air plus top/bottom heat, convection grill system, large-area grill, gentle hot air. Temperature control from 50 °C to 275 °C. Oven capacity: 71 l. Accessory rack, pull-out system: Pull-out can be retrofitted (see 6 kW em. Eu No. 65/2014): A (on (on a scale from A+++ to D) Energy consumption per cycle in conventional mode: 0.97 kWh Energy consumption per cycle in fan-assisted mode: 0.81 kWh Number of cooking compartments: 1 Heat source: electric Interior volume: 71 l Dimensions Appliance dimensions (H x W x D): 595 x 594 x 548 mm Niche dimensions (H x W x D): 595 mm x 560 mm x 550 mm Please refer to the technical drawing for dimensions and installation instructions for this appliance.
Siemens Built-in Oven HB510ABR1 Stainless Steel Shorten your cooking time thanks to rapid preheating. Rapid preheating: reaches the desired baking temperature faster. 3D hot air: optimal baking results on up to 3 baking trays thanks to innovative heat distribution. Technical specifications: Color: Stainless steel Door color/material: Black Design: Built-in Control: Mechanical Controls: On the control panel, rotary knob, round Integrated hob controls: No Automatic program: No Door material: Glass Number of compartments: 1 Net capacity (of the interior): 71 l Display on the control panel: On the control panel Electronic clock: No Heating modes: Large-area grill, hot air, gentle hot air, top/bottom heat, convection grill Time functions Safety features Interior lighting: Yes Number of built-in lights: 1 Interior lighting position: Top Timer: No time preselection Energy source: Electric Connected load (W): 3600 Fuse rating (A): 16 Voltage (V): 220-240 Frequency (Hz): 50, 60 Length...

Product Information

Dimension : 34 kg
EAN : 4242003839577
Farbe : Schwarz
Höhe : 59.5 cm
Maße : 60 x 60 cm
Tiefe : 54.8 cm
Bauart : Einbau
Breite : 59.4 cm
Modell : HB510ABR1
Gewicht : 34 kg
EPREL ID : 166045
Bluetooth : Nein
Hersteller : Siemens
Lieferumfang : Siemens HB510ABR1 Backofen Edelstahl,1 Kombirost,1 Universalpfanne,
Dampffunktion : Nein
Fassungsvolumen : 71 l
Herstellernummer : HB510ABR1
Versenkbare Drehknöpfe : Nein

Images

Reviews

Be the first to review. Login

Does not include VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Qty:

Share on:

Siemens HB510ABR1 built-in oven, stainless steel,...

Cash on Delivery (COD)

Cash on Delivery is a payment method for customer orders of Honest Forwarder throughout the UAE and KSA.

For the Cash on delivery orders, you pay at the time the order is delivered by the delivery driver and the driver only accepts cash.

How cash on delivery (COD) works?

Choose Cash On Delivery as your payment method at the checkout page when you place your order.
Send us the order ID over WhatsApp. The order ID is shown in the Cash On Delivery confirmation page or email. Until this order ID verification is over, we can’t process your order.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
The delivery driver will collect the due amount for the order. The driver only accepts cash. Kindly make sure the exact amount is ready in cash for collection.

Product Return and cancellation

In the event of cancellation of your order, please write to us immediately at support@honestforwarder.com. It must be done as soon as possible, before the order is dispatched to the airport for departure.

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

We can’t accept the product return for a mere change of minds for the exchange or replacement after delivery. The return request is accepted only when it is due to product defect, damage reported on delivery or wrong item.

Credit Card & Debit Card

Honest Forwarder partners with Telr, a payment gateway company with the track record and presence in UAE, to offer a safe and secure credit/debit card processing.

Your transaction will be settled in SAR. Therefore, your bank will not charge any fee for the foreign currency conversion.

How Credit Card/Debit Card works?

Choose Credit Card/Debit Card as your payment method at the checkout page when you place your order.
Press Proceed to Pay at the checkout page and enter your credit card information in the next page of Telr, our Credit card payment gateway partner. Honest Forwarder never stores your credit card information.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
Any issue on processing your order, kindly report to us immediately at support@honestforwarder.com or through Contact Us page.

Product Return and Cancellation

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

Category links

Social Media links

Siemens HB510ABR1 built-in oven, stainless steel, A

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

Siemens HB510ABR1 built-in oven, stainless steel,...

Category links

Social Media links

Siemens HB510ABR1 built-in oven, stainless steel, A

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

Siemens HB510ABR1 built-in oven, stainless steel,...

Cash On Delivery Information

Cash on Delivery (COD)

Credit Card & Debit Card Payment Information

Credit Card & Debit Card

Max weight for health supplements.

VAT and Customs Duty For Oman

VAT and Customs Duty For Qatar

VAT and Customs Duty For Bahrain

Ask for price
