Siemens EA645GN17 Electric Cooktop Flat Frame

Siemens

SAR 1,039.00
+ SAR 839.00 Air Shipping

Includes any applicable VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Description

Product Description

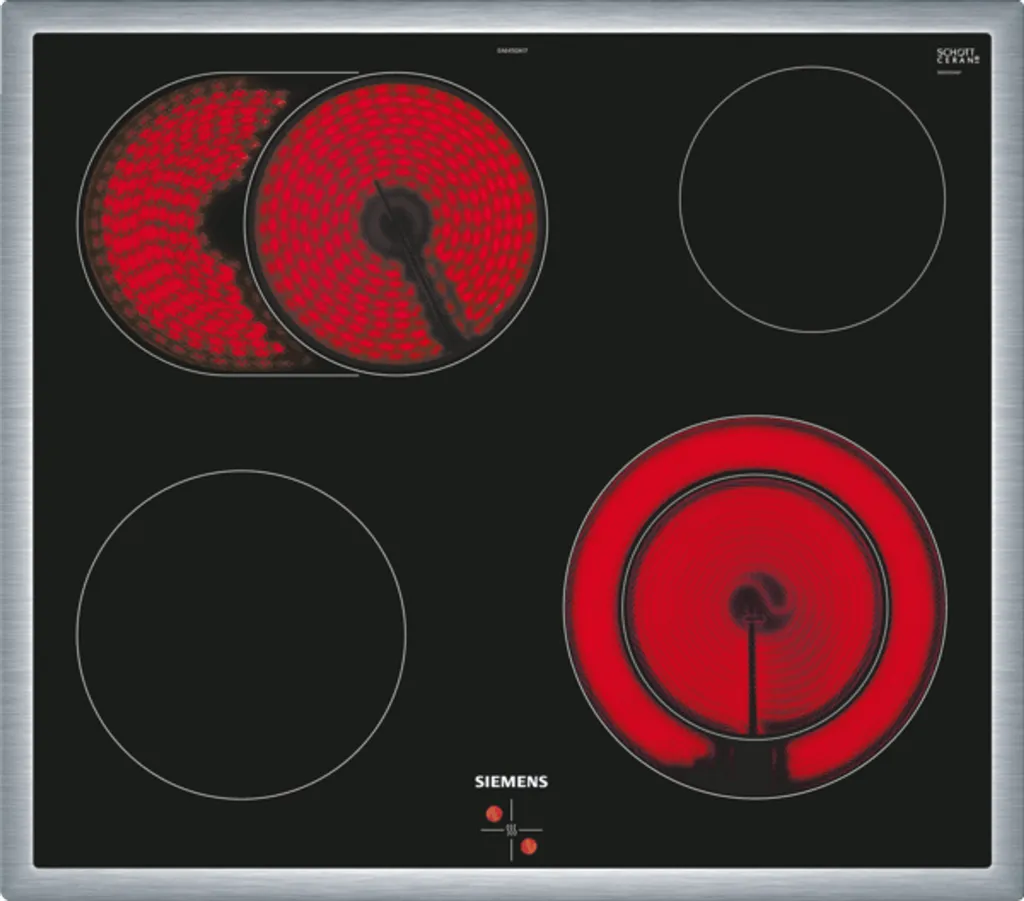

Siemens EA645GN17, Electric Cooktop
Highlights
- The modern glass-ceramic cooktop for more enjoyment while cooking and less work when cleaning.
- Dual-circuit cooking zone 21 cm: Space for large pots and pans.
- Extendable roasting zone: Extended cooking zone for large roasting pans.
- Rotary selector: Control the cooking zones via the rotary selector on the built-in oven.
60 cm: Space for 4 pots or pans.
Cooking zone flexibility
Roasting zone: Extra cooking zone that can be extended for large roasting pans.
Dual-circuit cooking zone: Use normal or larger cookware for the extendable cooking zone.
Front left cooking zone: 180 mm, 2 kW.
Rear left cooking zone: 265 mm, 170 mm, 2.4 kW.
Rear right cooking zone: 145 mm, 1.2 kW
Front right cooking zone: 210 mm, 145 mm, 1 kW
Ease of use

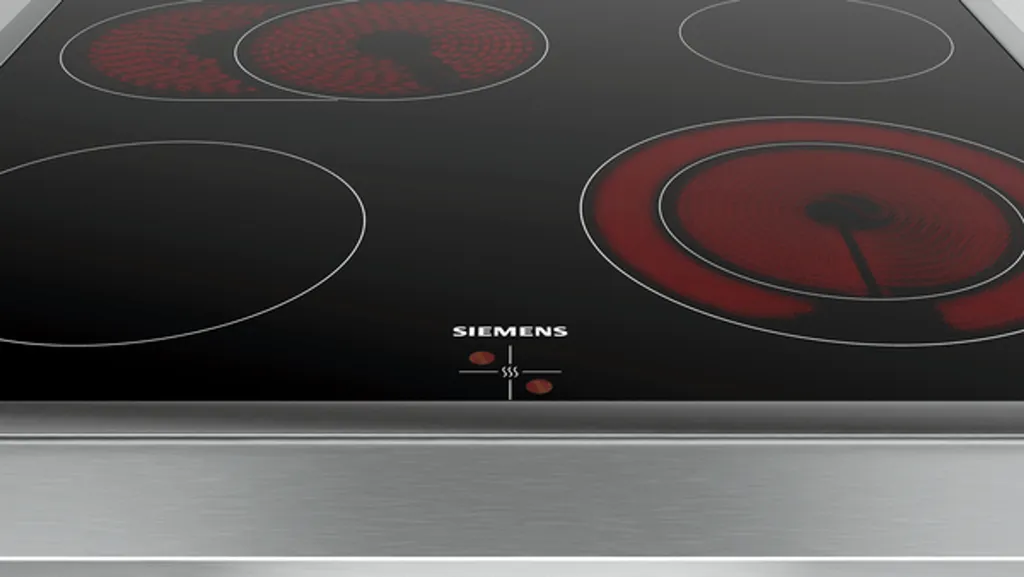

Operation: Control the cooking zone's power using the knobs on the hob.
Design

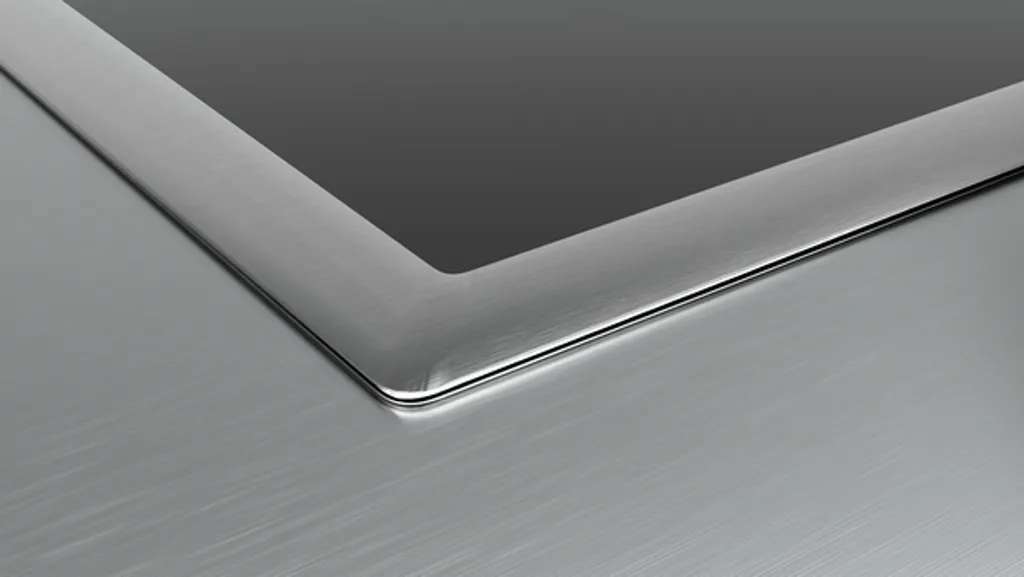

Frame: Flat frame design
Safety
Residual heat indicator for each cooking zone: shows which cooking zones are still hot.
Installation

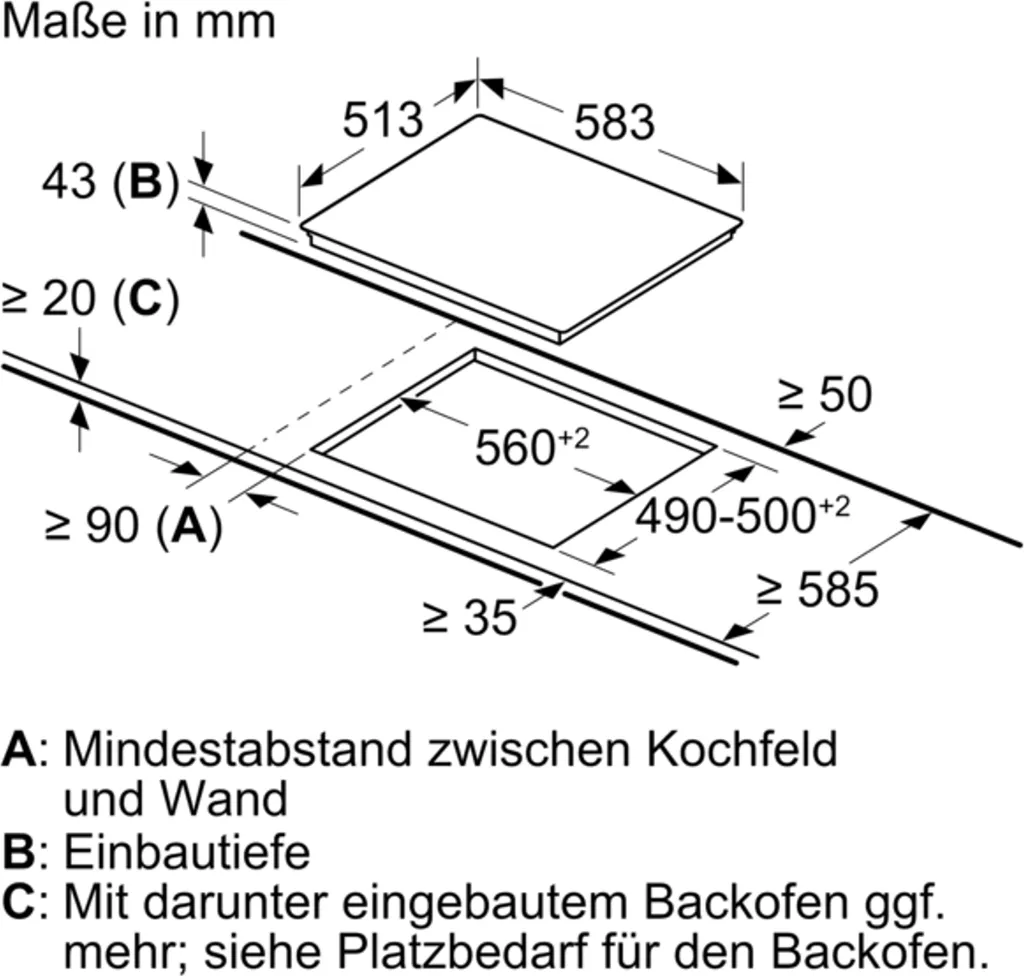

Appliance dimensions (H x W x D mm): 43 x 583 x 513
Required niche dimensions (H x W x D mm): 43 x 560 x (490 - 500)
Minimum worktop thickness: 16 mm
Total connected load: 7800 W
Technical Data
Product details
- Product group: Hob
- Brand: Siemens
- Product name / family: Glass ceramic hob
- Product series: iQ300
- International order designation: EA645GN17
- Article number: EA645GN17
- Ean number: 4242003611845
- Design: Built-in
- Control: Mechanical
- Control elements: Other
- Energy source: Electric
- Number of cooking zones that can be used simultaneously: 4
- Number of gas burners: 0
- Number of electric cooking zones: 4
- Number of solid hotplates: 0
- Number of radiant cooking zones: 4
- Number of halogen cooking zones: 0
- Number of induction cooking zones: 0
- Number of electric warming zones: 0
- Control location: External
- Control type: Combined with built-in ovens/cookers
- Main surface material: Glass ceramic
- Appliance color: Black
- Frame design: Frame
- Frame color: Stainless steel
- Power rating: 7800 W
- Voltage: 220-240 V
- Minimum voltage: 220 V
- Maximum voltage: 240 V
- Frequency: 50; 60
- Minimum frequency: 50
- Maximum frequency: 60
- Device width: 583 mm
- Device height: 43 mm
- Device depth: 513 mm
- Height of packaged device: 100 mm
- Width of packaged device: 750 mm
- Depth of packaged product: 590 mm
- Minimum niche height: 490 mm
- Maximum niche height: 500 mm
- Minimum niche width: 560 mm
- Maximum niche width: 560 mm
- Niche depth: 43 mm
- Net weight: 7.4 kg
- Gross weight: 8.2 kg
- Frame material: Stainless steel
- Energy consumption of the 1st heating element per kg: 188.8 Wh/kg
- Energy consumption of the 3rd heating element per kg: 193.9 Wh/kg
- Energy consumption of the 5th heating element per kg: 190.2 Wh/kg
- Energy consumption of the 7th heating element per kg: 190.0 Wh/kg
- Energy-smart appliance, can optimize consumption (2017/1369/Eu): No
- Wireless communication possible: No
- Type of interface for control: No
- Remote upgrade option: No
- Remote update option for maintenance: No
- Voice control option: No
- Automatic program: No
- Location of the cooking zone: front left
- Location of the 2nd cooking zone: center left
- Location of the 3rd cooking zone: rear left
- Location of the 4th cooking zone: center rear
- Location of the 5th cooking zone: rear right
- Location of the 6th cooking zone: center right
- Location 7th cooking zone: front right
- 8th cooking zone: front center/central
- 9th cooking zone: central
- Cooking zone type: radiant heating
- 3rd cooking zone type: radiant heating
- 5th cooking zone type: radiant heating
- 7th cooking zone type: radiant heating
- Cooking zone dimensions: 180 mm
- 3rd cooking zone dimensions: 265; 170 mm
- 5th cooking zone dimensions: 145 mm
- 7th cooking zone dimensions: 210; 145 mm
- Cooking zone power: 2000 W
- 3rd cooking zone power: 1600 W 2400.0 W
- Power of the 5th cooking zone: 1200.0 W
- Power of the 7th cooking zone: 1000 ; 2600.0 W
- Operating indicator light: No
- Cooking zone indicator light: 0
- Control: Stepless energy control
- Cover type: None
- Ignition: No
- Residual heat indicator: Separate
- Main switch: No
- Electronic clock: No
- Possibility of combining cooking zones/areas: No
- Time functions: No delay options
- Prevent boil-over with cooking sensor: No
- Flexible induction technology supported: No
- Hob with booster function: No
- Temperature control for perfect frying results: No
- Cord included: No
- Wok burner supported: No
- null: [De, Fr, It, Nl]
Documents
Dimensional drawings
Features
Operating instructions
User manual
60 cm: Space for 4 pots or Pans
Cooking zone flexibility
Roasting zone: Extra cooking zone that can be activated for large roasting dishes
Dual-circuit cooking zone: Use normal or larger cookware for the extendable cooking zone.
Front left cooking zone: 180 mm, 2 kW
Rear left cooking zone: 265 mm, 170 mm, 2.4 kW
Rear right cooking zone: 145 mm, 1.2 kW
Front right cooking zone: 210 mm, 145 mm, 1 kW
Ease of use
Operation: Control the power of the cooking zone with the knobs on the hob.
Design
Frame: Flat frame design
Safety
Residual heat indicator for each cooking zone: shows which cooking zones are still hot.
Installation

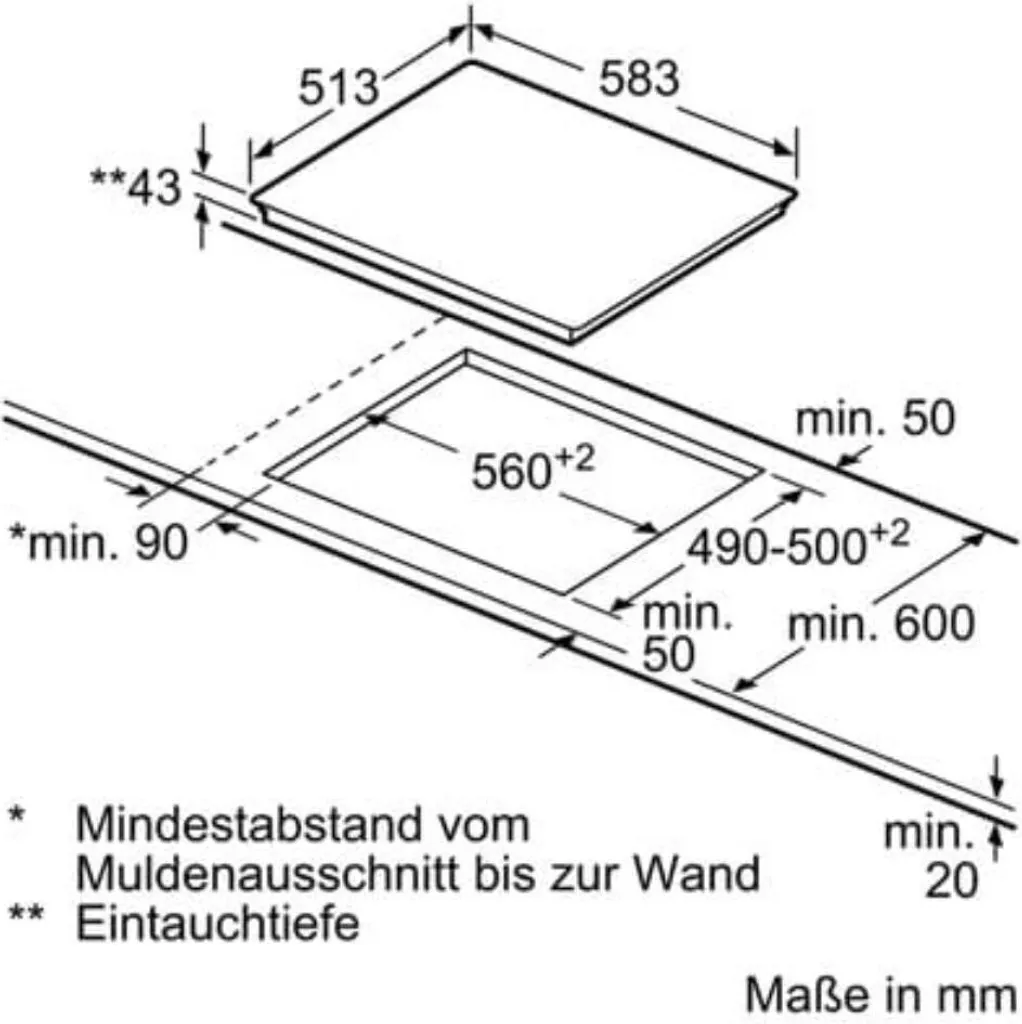

Dimensions of the appliance (H x W x D mm): 43 x 583 x 513
Required niche dimensions (H x W x D mm): 43 x 560 x (490 - 500)
Minimum worktop thickness: 16 mm
Total connected load: 7800 W
Product series
: iQ300
Design
: Built-in
Control
: Mechanical
Control elements
: Other
Power source
: Electric
Control location
: Outside the appliance
Control type
: Combined with built-in ovens/cookers
Main surface material
: Glass ceramic
Appliance color
: Black
Product base color
: Not applicable
Frame design
: Frame
Frame color
: Stainless steel
Connected load
: 7800 W
Voltage
: 220-240 V
Minimum voltage
: 220 V
Maximum voltage
: 240 V
Frequency
: 50; 60
Minimum frequency
: 50
Maximum frequency
: 60
Device width
: 58.3 cm
Device height
: 4.3 cm
Device depth
: 51.3 cm
Height of packaged device
: 10 cm
Width of packaged device
: 75 cm
Depth of packaged product
: 59 cm
Minimum niche height
: 49 cm
Maximum niche height
: 50 cm
Minimum niche width
: 56 cm
Maximum niche width
: 56 cm
Niche depth
: 4.3 cm
Net weight
: 7.4 kg
Gross weight
: 8.2 kg
Frame material
: Stainless steel
Energy consumption of the 1st heating element per kg
: 188.8 Wh/kg
Energy consumption of the 3rd heating element per kg
: 193.9 Wh/kg
Energy consumption of the 5th heating element per kg
: 190.2 Wh/kg
Energy consumption of the 7th heating element per kg
: 190.0 Wh/kg
Energy-smart device, can optimize consumption behavior (2017/1369/Eu)
: No
Wireless communication possible
: No
Network broadband technology
: Not applicable
Type of interface for control
: No
Remote upgrade capability
: No
Remote update capability for maintenance capability
: No
Voice control capability
: No
Automatic program
: No
Location of cooking zone
: front left
Location of 2nd cooking zone
: center left
Location of 3rd cooking zone
: rear left
Location of 4th cooking zone
: center rear
Location of 5th cooking zone
: rear right
Location of 6th cooking zone
: center right
Location of 7th cooking zone
: front right
Location of 8th cooking zone
: front center / central
Location of 9th cooking zone
: central
Type of cooking zone
: radiant heating
Type of 3rd cooking zone
: radiant heating
Type of 5th cooking zone
: radiant heating
Type of 7th cooking zone
: radiant heating
Dimensions of cooking zone
: 18 cm
Dimensions of the 3rd cooking zone
: 26.5 cm
Dimensions of the 5th cooking zone
: 14.5 cm
Dimensions of the 7th cooking zone
: 21 cm
Cooking zone power
: 2000 W
Power of the 3rd cooking zone
: 1600.0 ; 2400.0 W
Power of the 5th cooking zone
: 1200.0 W
Power of the 7th cooking zone
: 1000 ; 2600.0 W
Operating indicator light
: No
Control
: Stepless energy control
Cover type
: None
Type of gas safety device
: Not applicable
Ignition
: No
Residual heat indicator
: Separate
Main switch
: No
Safety devices
: Not applicable
Electronic clock
: No
Possibility of combining cooking zones/areas
: No
Time functions
: No delay options
bsh-group.com/Product_Shots/3000x3000/MCSA01752879_ET645FFP1E_ElectricHob_Siemens_PGA2_def.jpg
Flexible induction technology supported
: No
Hob with booster Function: No; Temperature control for perfect frying results: No; Cord included: No; Wok burner supported: No [De, Fr, It, Nl]; COMBINED_NOMENCLATURE_CODE: 85166050; RECYCLING_WEIGHT_CARDBOARD: 0.535; RECYCLING_WEIGHT_EPS: 0.299; RECYCLING_WEIGHT_PLASTIC: 0.000; RECYCLING_WEIGHT_WOOD: 0.000; RECYCLING_WEIGHT_OTHER: 0.004; RECYCLING_WEIGHT_PACKAGING: 0.838; Product Highlights: Space for even large pans, pots and roasters thanks to the 21 cm diameter; A Dual-circuit cooking zone
detects the size of the cookware placed on it and heats a larger or smaller cooking zone accordingly.
and switchable roasting zone

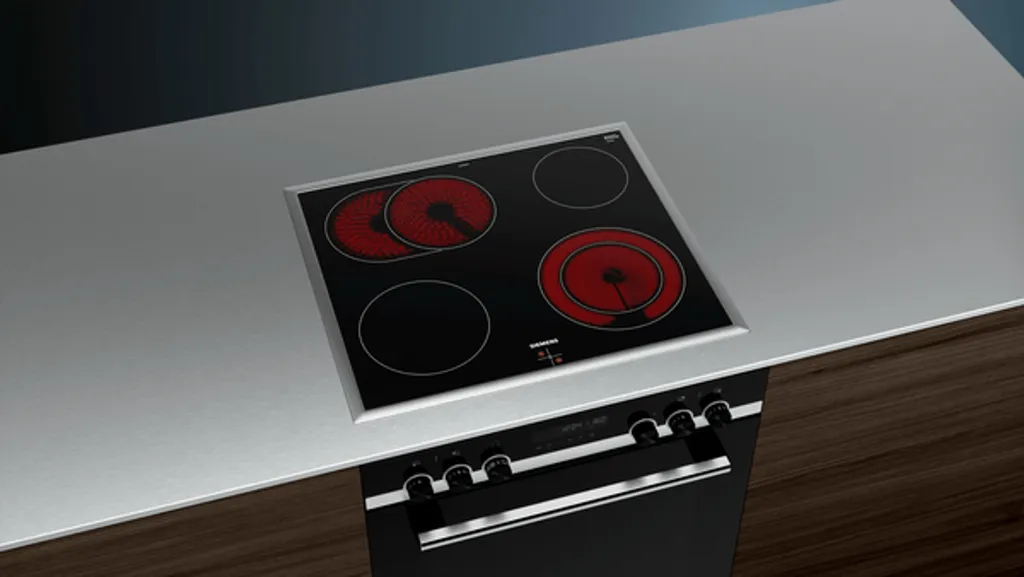

Cooking zones are operated via the rotary selectors on the built-in oven
Performance characteristics
Total connected load: 7.8 kW4
HiLight cooking zones
are ceramic hobs that heat up particularly quickly to the selected temperature.
Energy consumption of the hob: 190.7 Wh/kg 230 V mains connection complies with Vde safety standard
Features
Display at the front of the hob Residual heat indicator for each cooking zone
Cooking zone - front/outer left
Diameter of the cooking zone: 18 cm Heating power: 2000 W Energy consumption 188.8 Wh/kg
Cooking zone - rear/inner left
Roasting zone
One
Dual-circuit cooking zone
detects the size of the cookware placed on it and heats a larger or smaller cooking zone accordingly.
Diameter of small cooking zone: 17 cm Width of roasting zone: 26.5 cm Heating power of small cooking zone: 1600 W Heating power of large cooking zone: 2400 W Energy consumption 193.9 Wh/kg
Cooking zone - rear/inner right
Diameter of cooking zone: 14.5 cm Heating power: 1200 W Energy consumption 190.2 Wh/kg
Cooking zone - front/outer right
One
dual-circuit cooking zone
detects the size of the cookware placed on it and heats a larger or smaller cooking zone accordingly.
Diameter of small cooking zone: 14.5 cm Diameter of large cooking zone: 21 cm Heating power of small cooking zone: 1000 W Heating power of large cooking zone: 2200 W Energy consumption 190 Wh/kg
Housing properties
Width: 58.3 cm Depth: 51.3 cm Height: 4.6 cm Weight: 7.4 kg
Installation properties
Cutout width: 56 cm Cutout depth: 49 cm Cutout height: 4.3 cm
Colors
Stainless steel
Design:

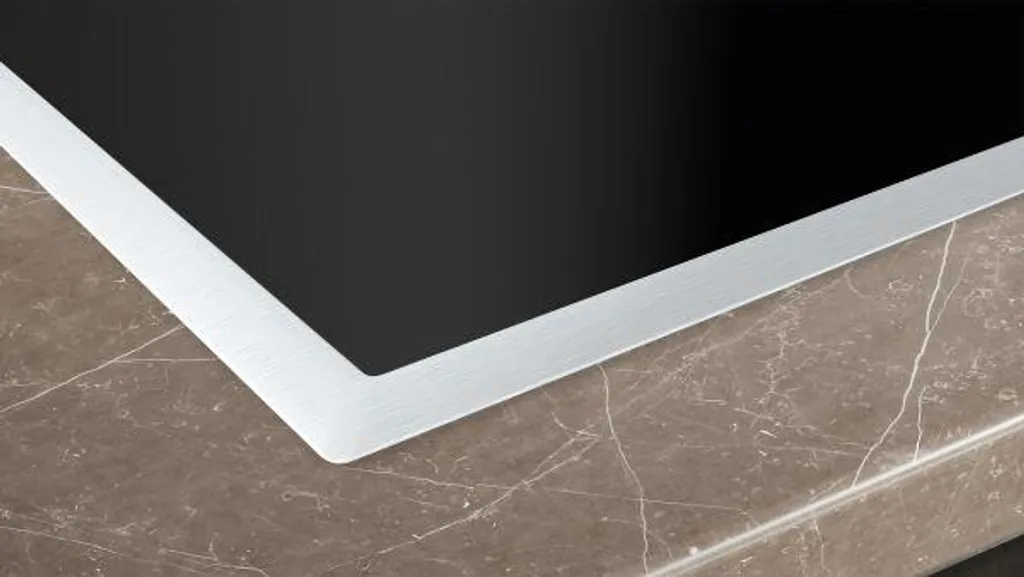

Flat frame design
Features:
4 high-speed cooking zones, including
1 roasting zone
1 dual-circuit cooking zone
Environment and safety:
4 residual heat indicators
Dimensions:
Min. worktop thickness: 16 mm
Flat frame design in stainless steel
EA645GN17
Electric hob, cooker-controlled
58 cm
Standard cooking zone front left: 180 mm / 2 kW
Roasting zone rear left: 265 mm, 170 mm / 2.4 kW, 1.6 kW
Dual-circuit cooking zone front right: 210 mm, 145 mm / 2.2 kW, 1 kW
Standard cooking zone rear right: 145 mm / 1.2 kW
Dimensions
Connected load: 7.8 kW
Cooking zones:
1 x Ø 180 mm, 2 kW;
1 x Ø 265 mm, 170 mm, 2.4 kW, 1.6 kW;
1 x Ø 210 mm, 145 mm, 2.2 kW, 1 kW;
1 x Ø 145 mm, 1.2 kW
Appliance dimensions: (W/D) 583 mm x 513 mm
Installation dimensions: (H/W/D) 43 mm x 560 mm x 490 mm
Energy source
Electric
Energy consumption of the hob
190.7 Wh/kg
Dimensions of the appliance (mm)
43 x 583 x 513 mm
Net weight (kg)
7.360 kg
Frame color
Stainless steel
Surface color
Stainless steel, black
Design
Built-in
Design line
Frame
Number of cooking zones
Number of cooking zones that can be used simultaneously
Type of control
Combined with built-in ovens/cookers
Frame finish
Frame
Appliance type
Integrated
Design
Design
Built-in appliance
2.02 Design line
Frame
Surface color
Stainless steel, black
Frame design
Frame
Frame color
Stainless steel
Installation type
Integrated
Number of electric cooking zones
Number of halogen cooking zones
Number of radiant cooking zones
Number of cooking zones that can be used simultaneously
Number of solid hotplates
Control type
Combined with built-in ovens/ranges
Sizes and weights
Appliance dimensions (mm)
46.0 x 583 x 513 mm
Net weight (kg)
7.000 kg
Cooking zone 1
Dimensions of cooking zone 1 (mm)
180 mm
Type of cooking zone 1
Standard radiant cooking zone
Position of cooking zone 1
Front left
Power of cooking zone 1 (kW)
2 kW
Cooking zone 2
Dimensions 2nd cooking zone (mm)
170; 265 mm
Type of 2nd cooking zone
Roasting zone, radiant heating
Location of 2nd cooking zone
rear left
Power of 2nd cooking zone (kW)
1.6; 2.4 kW
Cooking zone 3
Dimensions of 3rd cooking zone (mm)
145 mm
Type of 3rd cooking zone
Radiant heating
Location of 3rd cooking zone
rear right
Power of 3rd cooking zone (kW)
1.2 kW
Cooking zone 4
Dimensions of 4th cooking zone (mm)
145; 210 mm
Type of 4th cooking zone
Radiant heating
Location of 4th cooking zone
Front right
Power of 4th cooking zone (kW)
1; 2.2 kW
Connection
Electrical connection rating (W)
7,800 W
Frequency (Hz)
60; 50 Hz
Energy source
Electric
Product color:
Black
Appliance placement:
Integrated
Hob type:
Ceramic
Surface type:
Glass ceramic
Number of hobs/cooking zones:
4 zone(s)
Number of gas burners:
0 zone(s)
Number of electric hobs:
4 zone(s)
Type of cooking zone 1:
Regular
Cooking zone 1 shape:
Round
Position of cooking zone 1:
Rear left
Power source of cooking zone 1:
Electric
Size of cooking zone 1 (W x D):
170 x 265 mm
Power of cooking zone 1:
1600 W
Boost for cooking zone 1:
2400 W
Type of cooking zone 2:
Regular
Cooking zone 2 Shape:
Round
Position of cooking zone 2:
Front left
Burner/Cooking zone 2 Power source:
Electric
Diameter of cooking zone 2:
180 mm
Power of cooking zone 2:
2000 W
Type of cooking zone 3:
Simmering
Cooking zone 3 Shape:
Round
Position of cooking zone 3:
Rear right
Power source of cooking zone 2:
Electric
Diameter of cooking zone 3:
145 mm
Power of cooking zone 3:
1200 W
Type of cooking zone 4:
Large
Cooking zone 4 Shape:
Round
Position of cooking zone 4:
Front right
Power source of cooking zone 3:
Electric
Diameter of cooking zone 4:
145 mm 210 mm
Cooking zone diameter:
14.5 cm
Standard hob/cooking zone diameter:
18 cm
Large hob/cooking zone diameter:
21 cm
Extra-large rapid cooking zone diameter:
26.5 cm
Braising/cooking zone:
1000 W
Standard hob/cooking zone:
1200 W
Large hob/cooking zone:
2000 W
Extra-large high-speed hob:
2400 W
Control:
Touch
Residual heat indicator:
Electrical connection rating:
7800 W
Ac input voltage:
220 - 240 V
Ac input frequency:
50 - 60 Hz
Width:
583 mm
Depth:
513 mm
Height:
46 mm
Weight:
7 kg
Installation space width:
56 cm
Installation space depth:
50 cm
Installation space depth (min):
49 cm
Installation space depth (max):
4.3 cm
Package weight:
8 kg
Siemens Mda Eb cooktop EA645GN17
Manufacturer:
:Siemens Mda
Designation:
:Eb cooktop iQ300, glass ceramic
Type:
:EA645GN17
Energy type:
:Electricity
Design:
:Built-in
Main surface material:
:Glass ceramic
Frame design:
:Stainless steel
Base color of the frame:
Stainless steel
Number of cooking zones (usable simultaneously)
Number of rapid cooking zones
Type of cooking zones
:other
Electrical connection rating
:7800 W
Control location
:external
Control via oven/hob
:yes
With roasting zone
:yes
With dual-circuit zone
:yes
With warming zone
:no
Residual heat indicator
:separate
Width
:583 mm
Height
:43 mm
Depth
:513 mm
Installation width
:560 mm
Installation height
:43 mm
Installation depth
:490..500 mm
Siemens Mda Eb hob EA645GN17: further Details
Flat frame design, glass protection printing, 4 high-speed cooking zones, one of which has a switchable roasting zone, 1 dual-circuit cooking zone (21 cm), 4 residual heat indicators, min. worktop thickness: 20 mm, cooking zones operated via rotary selectors on the built-in oven, surface color: stainless steel, black
Included: Siemens Mda Eb cooktop iQ300, glass ceramic EA645GN17, packaging unit: 1 piece, Ean: 4242003611845
Operation:
separate controls on the oven
Width in cm:
58.3
Oval roasting zone:
Number of electric cooking zones:
Number of halogen cooking zones:
Number of glass ceramic induction cooking zones:
Surface:
Glass ceramic
Frame material:
Stainless steel frame
Number Multi-circuit cooking zones per hob:
Operating mode:
electric
Number of hobs:
Number of flexible induction zones:
Color:
Black
Highlights:
21 cm dual-circuit cooking zone and roasting zone
Plenty of space for large pans, pots, and roasters thanks to the 21 cm dual-circuit cooking zone and the switchable roasting zone.
Quality you can feel:
The high quality of the metal rotary knob can be felt with every turn.
Design:
Flat frame design
Features:
4 high-speed cooking zones, including
1 roasting zone
1 dual-circuit cooking zone
Environment and safety:
4 residual heat indicators
Dimensions:
min. worktop thickness: 20 mm
Design: Flat frame design Features: 4 high-speed cooking zones, including 1 roasting zone Dual-circuit cooking zone; Environment and safety: 4 residual heat indicators; Dimensions: min. worktop thickness: 20 mm

Product Information

Dimension : 7 kg
EAN : 4242003611845
Color : Black
Depth : 0.513 m
Model : EA645GN17
Power : 7800 W
Width : 0.583 m
Weight : 7 kg
Dimensions : 43 mm H × 583 mm W × 513 mm D
Manufacturer : Siemens
Scope of delivery : - 1x Siemens EA645GN17 electric cooktop
Manufacturer number : EA645GN17
Number of cooking zones : 4

Images

Reviews

Be the first to review. Login

Does not include VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Qty:

Share on:

Siemens EA645GN17 Electric Cooktop Flat Frame

Cash on Delivery (COD)

Cash on Delivery is a payment method for customer orders of Honest Forwarder throughout the UAE and KSA.

For the Cash on delivery orders, you pay at the time the order is delivered by the delivery driver and the driver only accepts cash.

How cash on delivery (COD) works?

Choose Cash On Delivery as your payment method at the checkout page when you place your order.
Send us the order ID over WhatsApp. The order ID is shown in the Cash On Delivery confirmation page or email. Until this order ID verification is over, we can’t process your order.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
The delivery driver will collect the due amount for the order. The driver only accepts cash. Kindly make sure the exact amount is ready in cash for collection.

Product Return and cancellation

In the event of cancellation of your order, please write to us immediately at support@honestforwarder.com. It must be done as soon as possible, before the order is dispatched to the airport for departure.

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

We can’t accept the product return for a mere change of minds for the exchange or replacement after delivery. The return request is accepted only when it is due to product defect, damage reported on delivery or wrong item.

Credit Card & Debit Card

Honest Forwarder partners with Telr, a payment gateway company with the track record and presence in UAE, to offer a safe and secure credit/debit card processing.

Your transaction will be settled in SAR. Therefore, your bank will not charge any fee for the foreign currency conversion.

How Credit Card/Debit Card works?

Choose Credit Card/Debit Card as your payment method at the checkout page when you place your order.
Press Proceed to Pay at the checkout page and enter your credit card information in the next page of Telr, our Credit card payment gateway partner. Honest Forwarder never stores your credit card information.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
Any issue on processing your order, kindly report to us immediately at support@honestforwarder.com or through Contact Us page.

Product Return and Cancellation

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

Category links

Social Media links

Siemens EA645GN17 Electric Cooktop Flat Frame

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

Siemens EA645GN17 Electric Cooktop Flat Frame

Category links

Social Media links

Siemens EA645GN17 Electric Cooktop Flat Frame

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

Siemens EA645GN17 Electric Cooktop Flat Frame

Cash On Delivery Information

Cash on Delivery (COD)

Credit Card & Debit Card Payment Information

Credit Card & Debit Card

Max weight for health supplements.

VAT and Customs Duty For Oman

VAT and Customs Duty For Qatar

VAT and Customs Duty For Bahrain

Ask for price
