Description

Technical Data:
Appliance type: Range hood with perimeter extraction
Material: Stainless steel
Installation width: 90 cm
Wall mounting: Yes

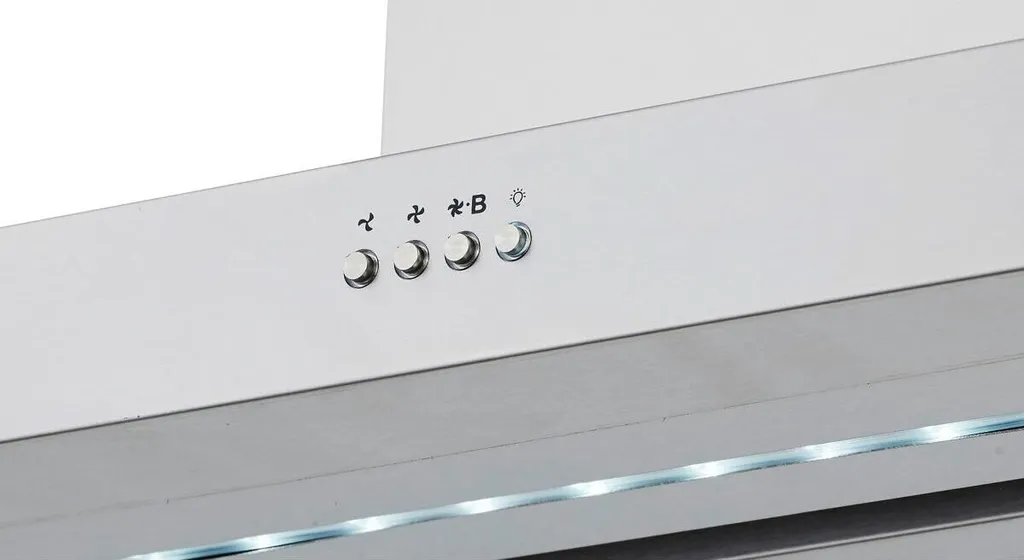

Electronic buttons: 4
Recirculation mode: Yes
Extraction mode: Yes
Annual energy consumption (AEChood): 10.4 kWh/year
Fluid dynamic efficiency (FDEhood): 27.2
Fluid dynamic efficiency class: B
Lighting efficiency (LEhood): 24.8
Lighting efficiency class: B
Grease filtering efficiency: 34.3
Grease filtering efficiency class: G
Airflow at minimum/medium/maximum Speed: 260 m³/h / 454 m³/h
Airflow at intensive or fast setting: 504 m³/h
A-weighted airborne noise emission at minimum/maximum speed: 45 dB/ 56 dB
A-weighted airborne noise emission at intensive or fast setting: 65 dB
Power consumption in off mode (Po): 0.41 W
Power consumption of the lighting system (Wl): 4 W
Connected load: 114 W
Lighting system: Led strip
Power consumption per lighting unit: 1 x 4 W
Voltage / Frequency: 220-240V/50Hz
Features:
Grease filter quantity / material / dishwasher safe: 3 x MF75 / aluminum / yes
Telescopic chimney extendable from: 50-100 cm
Total height with telescopic chimney: 104.80 cm
Required quantity of carbon filters: 2 x CF110
Included accessories: Non-return valve: yes
Exhaust hose: 2 m Pvc
Mounting hardware
Instruction manual
Logistics:

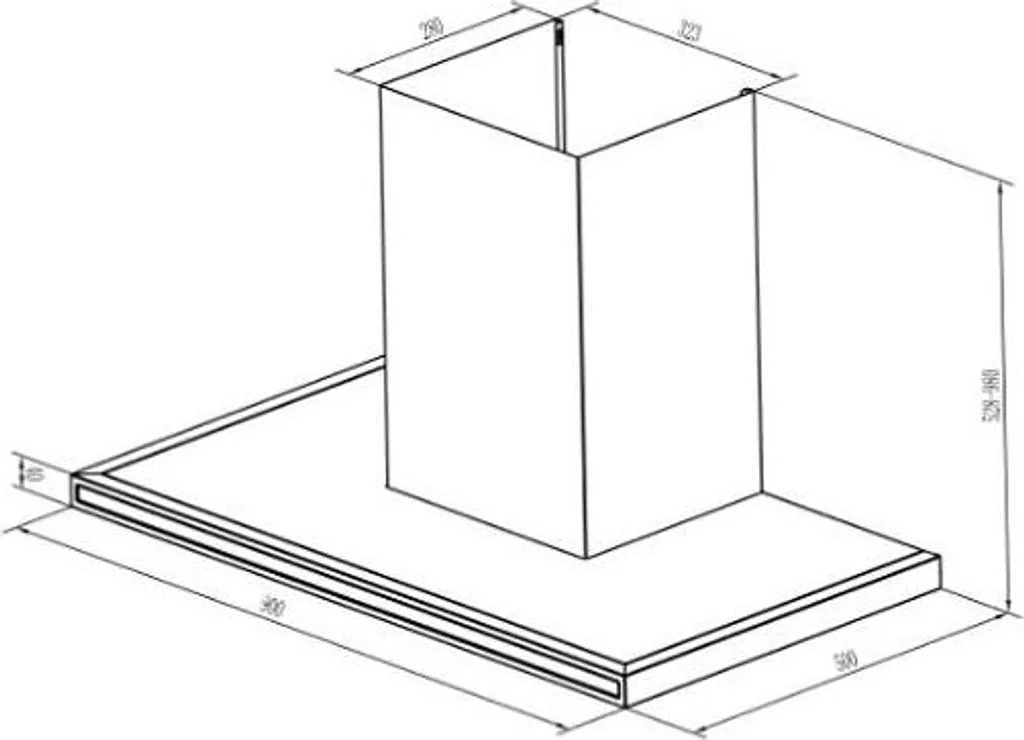

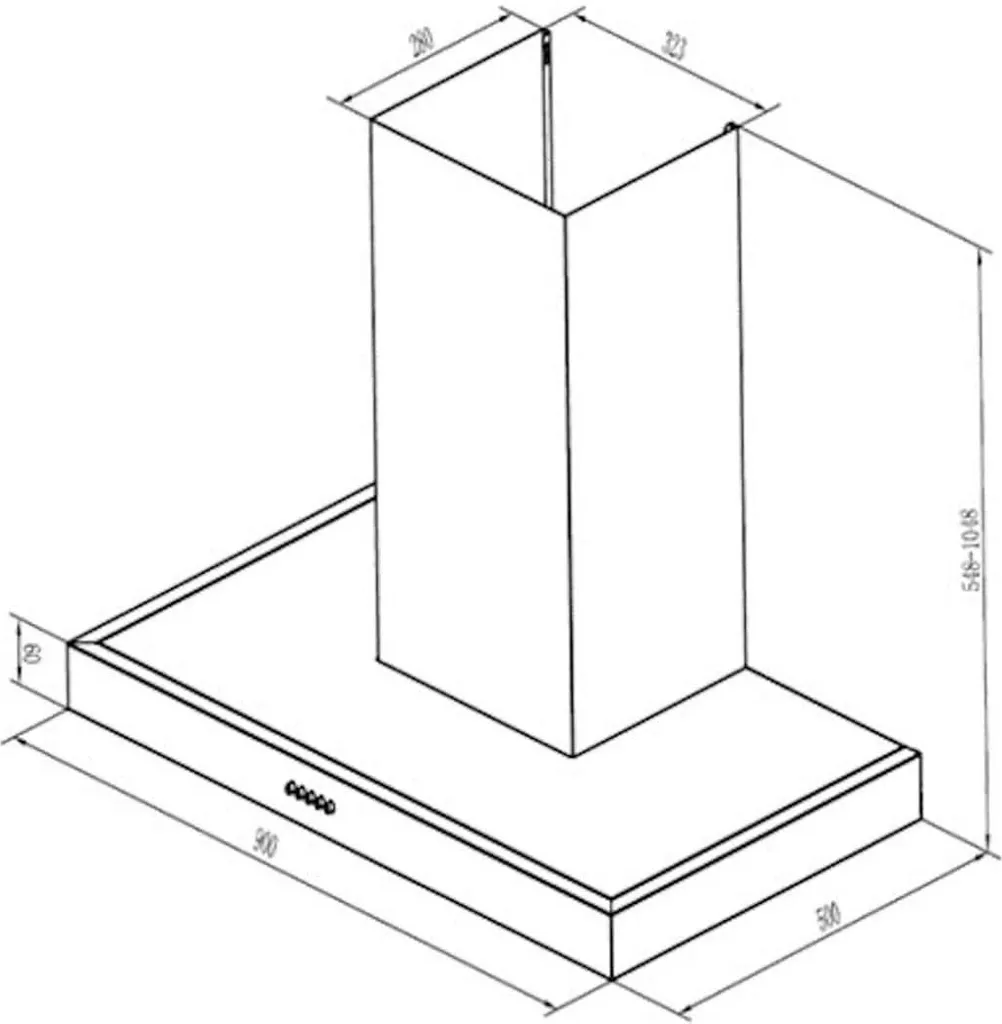

Appliance dimensions H x W x D in cm: 54.80-104.80 x 90.00 x 50.00
Net weight / Gross weight in kg: 15.80 kg / 18.50 kg
Technical data:
Appliance type: Range hood with perimeter extraction
Material: Stainless steel
Installation width: 90 cm
Wall mounting / Under-cabinet mounting / Ceiling mounting: yes / - / -
Push buttons / Electronic buttons / Touch control: - / 4 pieces / -
Recirculation mode: yes
Extraction mode: yes
Annual energy consumption (AEChood): 10.4 kWh/year
Fluid dynamic efficiency (FDEhood): 27.2
Fluid dynamic efficiency class: B
Lighting efficiency (LEhood): 24.8
Lighting efficiency class: B
Grease filtering efficiency: 34.3
Grease filtering efficiency class: G
Airflow at min./medium/max. Speed: 260 m³/h / 454 m³/h
Airflow at intensive or fast setting: 504 m³/h
A-weighted airborne noise emission at minimum/maximum speed: 45 dB/56 dB
A-weighted airborne noise emission at intensive or fast setting: 65 dB
Power consumption in off mode (Po): 0.41 watts
Power consumption in standby mode (Ps): -
Power consumption of the lighting system (Wl): 4 watts
Connected load: 114 watts
Lighting system: Led strip
Power consumption per lighting unit: 1 x 4 watts
Voltage / Frequency: 220-240V/50Hz
Features:
Grease filter quantity / material / dishwasher safe: 3 x MF75 / aluminum / yes
Display: -
Telescopic chimney extendable from to: 50-100 cm
Total height with telescopic chimney: 104.80 cm
Required quantity of carbon filters with model designation: 2 x CF110
Included accessories: Non-return valve: yes
Exhaust hose: 2 m Pvc
Carbon filter: optional
Mounting hardware: yes
Diverter: AT150-4, optional
Instruction manual: yes
Logistics:

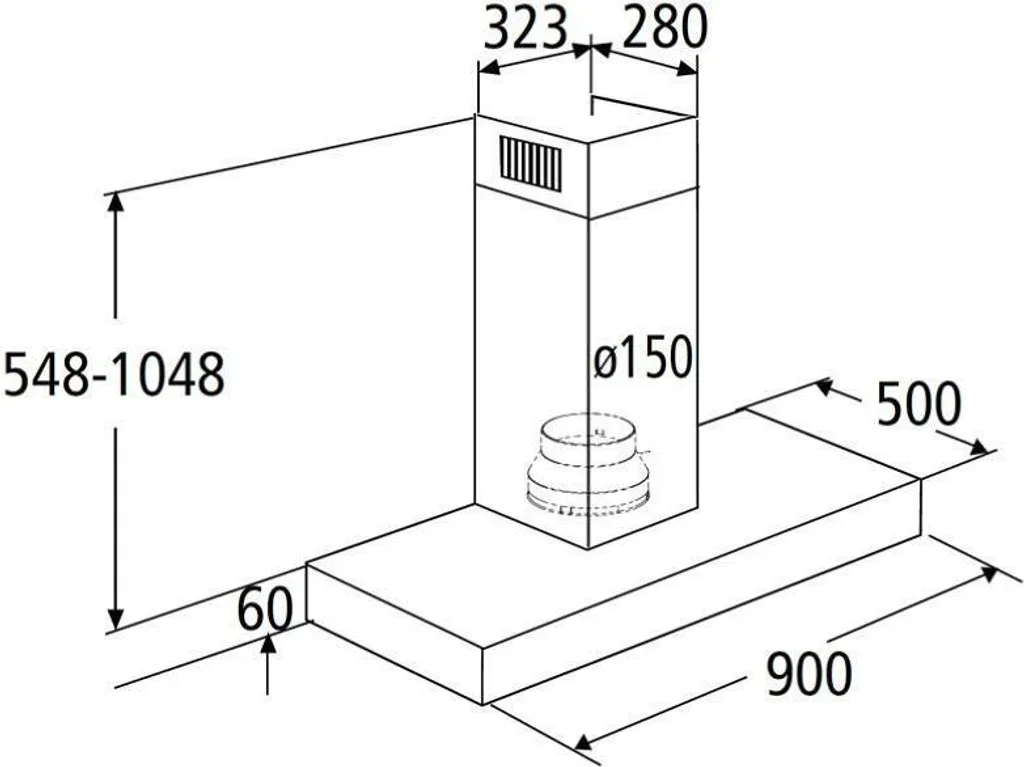

Appliance dimensions H x W x D in cm: 54.80-104.80 x 90.00 x 50.00
Packaging dimensions H x W x D in cm: 56.00 x 95.00 x 38.00
Net weight / Gross weight in kg: 15.80 kg / 18.50 kg
Brand/Trademark: Pkm
Model identifier: T1-90A++Ixez
Annual energy consumption (AEChood): 10.4 kWh/year
Fluid dynamic efficiency (FDEhood): 27.2
Fluid dynamic efficiency class: B
Lighting efficiency (LEhood): 24.8 lux/Watt
Lighting efficiency class: B
Grease filtering efficiency: 34.3
Grease filtering efficiency class: G
Airflow at minimum speed in normal operation: 260 m³/h
Airflow at maximum speed in normal operation: 454 m³/h
Airflow in intensive or fast operation: 504 m³/h
A-weighted airborne acoustical noise emission at minimum available speed in normal operation: 45 dB
A-weighted airborne acoustical noise emission at maximum available speed in normal operation: 56 dB
A-weighted airborne acoustical noise emission in intensive or fast operation: 65 dB
Power consumption in off mode 0.41 W
Power consumption in standby mode 0 W
Pkm T1-90A++Ixez Stainless Steel Wall-Mounted Cooker Hood 90cm
Manufacturer Pkm
Model name T1-90A++Ixez
Annual energy consumption 7 kWh/year
Energy efficiency class A++ to E A++
Index 7.20 %
Fluid dynamic efficiency 30.10 (?)
Fluid dynamic efficiency class A to G A
Illuminance efficiency 33 lx/Watt
Illuminance efficiency class A to G A
Grease filtering efficiency 77.40 %
Grease filtering efficiency class C
Minimum airflow in normal operation 293 m³/h
Maximum airflow in normal operation 559 m³/h m³/h
Airflow Intensive/High Speed in m³/h 567 m³/h
Sound power level in dB(A) re 1pW 56 dB(A)
Airborne acoustical noise emission Normal operation min. in dB(A) 53 dB(A)
Airborne acoustical noise emission Normal operation max. in dB(A) 56 dB(A)
Airborne acoustical noise emission Intensive/High Speed in dB(A) 56 dB(A)
Power consumption in off mode 0.41 watts
Power consumption in standby mode 0.00 watts
Features Cooker hood
Cooker hood Appliance type Wall hood
Appliance material Stainless steel
Housing color Stainless steel
Mounting type Wall mounting with wall brackets
Operating mode For extraction/recirculation operation
Note for recirculation mode is achieved by using carbon filters CF110 possible
Number of power levels: 4
Max. fan output - exhaust air operation: 559 m³/h
Grease filter material: Aluminum, dishwasher-safe
Number of grease filters: 2
Activated carbon filter: No, but retrofittable
Operation/Control panel: Push-button control
Lighting: 2 x 1.5 Watt LEDs
Lighting can be switched on and off separately: Yes
Minimum distance to cooktop (electric): 650 mm
Minimum distance to cooktop (gas): 750 mm
Exhaust duct diameter: 150 mm
Backflow preventer: Yes
Number of fans: 1
Total motor power: 90 Watts
Power cord length: 150 cm
Basic characteristics of cooker hoods:
Energy efficiency class: A++ to E
Annual energy consumption: 7 kWh/year
Fluid dynamic efficiency class: A to G
Lighting efficiency class: A to G A
Grease separation efficiency class from A to G C
Sound power level in dB(A) re 1pW 56 dB(A)
Technical information extractor hood
Connected load 93 watts
Fuse 10 amps
Weight 15.80 kg
Width 90.00 cm
Depth 50.00 cm
The height of the extractor hood varies between 54 cm - 104 cm
Effective: 3 power levels
Booster function
Perimeter extraction technology
With the Led lighting you keep an overview while cooking
90 cm installation width
The modern and powerful Pkm T1-90A++Ixez extractor hood with perimeter extraction ensures that unpleasant kitchen odors are reliably removed (for recirculation and extraction operation). The external appearance of this wall-mounted hood is minimalist and therefore harmonizes with any individual kitchen style. The metal grease filters are dishwasher safe.
Product details:
Appliance type: Range hood with perimeter extraction
Material: Stainless steel
Installation width: 90 cm
Wall mounting
4 electronic buttons
Recirculating mode
Extraction mode
Annual energy consumption (AEChood): 12.30 kWh/year
Energy efficiency class A++ (highest efficiency) to D (lowest efficiency)
Fluid dynamic efficiency (FDEhood): 32.80
Fluid dynamic
Lighting efficiency (LEhood): 25.00 lux/watt
Lighting
Grease filtering efficiency: 66.80
Grease filtering efficiency class: D
Airflow at minimum speed: 316 m³/h
Airflow at maximum speed: 506 m³/h
Maximum airflow Qmax: 578 m³/h
A-weighted airborne noise emission at minimum speed 52 dB/A
A-weighted airborne noise emission at maximum speed 63 dB/A
A-weighted airborne noise emission at intensive or high speed setting 65 dB/A
Power consumption in off mode (Po) 0.41 watts
Power consumption of the lighting system (Wl) 4.00 watts
Connected load 74.00 watts
Lighting system Led strip
Power consumption per lighting unit 1 x 4.00 watts
Voltage 220 - 240 volts
Frequency 50 Hz
Features:
Grease filter quantity 3 x MF75
Grease filter material aluminum
Grease filter dishwasher safe
Telescopic chimney extendable from 50.00 - 100.00 cm
Total height with telescopic chimney 104.80 cm
At Recirculation mode requires carbon filters: 2 x CF110 (available as an option)
Included accessories: non-return flap, 2 m Pvc exhaust hose, mounting hardware, instruction manual
Recirculation diverter AT150-4 Uni - available as an option
Dimensions and weight (approx.):
Appliance dimensions (H x W x D) 54.00 - 104.00 x 90.00 x 50.00 cm
Packaging dimensions (H x W x D) 56.00 x 94.50 x 38.00 cm
Net weight 15.80 kg
Gross weight 18.50 kg
Maximum extraction rate:
555 m³/h
Extraction type:
Exhaust/Recirculation
Fluid dynamic efficiency class:
Lighting efficiency class:
Oil filter efficiency class:
Number of speeds:
Noise level (low speed):
45 dB
Noise level (medium speed):
58 dB
Noise level (high speed):
62 dB
Type:
Wall-mounted
Product color:
Stainless steel
Venting location:
Top
Non-return valve:
2 year(s)
Grease filter type:
Aluminum
Number of filters:
3 pieces
Dishwasher filter:
Removable filter:
Washable filter:
Lamp power:
4 W
Number of lamps:
1 bulb(s)
Bulb type:
Led
Light intensity:
16 lux
dt>
A++
Annual energy consumption:
11 kWh
Energy efficiency scale: A+++ to D Connected load: 74 W Power consumption (off): 0.39 W Ac input voltage: 220 - 240 V Ac input frequency: 50 Hz Width: 900 mm Depth: 500 mm Height (min): 54.8 cm Height (max): 104.8 cm Weight: 15.8 kg Packaging width: 945 mm Packaging depth: 380 mm Packaging height: 560 mm Package weight: 18.5 kg The Pkm T1-90 A++ Ixez stainless steel extractor hood features perimeter extraction and is characterized by its particularly It is energy-efficient. The Led lighting system, combined with the four electronic buttons, provides a pleasant ambiance while cooking and ensures user-friendly operation. Recirculation and extraction modes ensure optimal removal of kitchen odors and help you maintain control.
n.a.
Width in cm:
Maximum airflow in m³/h:
567
Mounting type:
Wall/cabinet mounting
Filter system:
Metal filter
Extraction system:
Extraction/recirculation
Number of motors:
Number of fan speeds:
Noise emission dB(A) re1 pW:
Annual energy consumption in kWh:
7.2
Product type:
Island hood
Chimney design:
Box
A++
Fluid dynamic efficiency (Eu):
Lighting efficiency class (Eu):
Grease filtering efficiency class (Eu):

Product Information

Dimension : 18500 g
EAN : 4030608504637
Farbe : Silber
Höhe : 90 cm
Maße : 54,80-104,80 x 90,00 x 50,00 cm
Tiefe : 50 cm
Breite : 90 cm
Modell : T1-90 A++IXEZ
Gewicht : 18500 g
EPREL ID : 2220410
Hersteller : PKM
Montageort : Wand
Lautstärke : 62 dB
Lieferumfang : - Rückschlagklappe - Abluftschlauch 2 m PVC - Befestigungsmaterial - Bedienungsanleitung
Luftdurchsatz : 555 m³/h
Herstellernummer : 50463
Anzahl Leuchtmittel : 1
Durchmesser Abluftleitung : 150 mm

Images

Reviews

Be the first to review. Login

Does not include VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Qty:

Share on:

PKM extractor hood with perimeter extraction, wall...

Cash on Delivery (COD)

Cash on Delivery is a payment method for customer orders of Honest Forwarder throughout the UAE and KSA.

For the Cash on delivery orders, you pay at the time the order is delivered by the delivery driver and the driver only accepts cash.

How cash on delivery (COD) works?

Choose Cash On Delivery as your payment method at the checkout page when you place your order.
Send us the order ID over WhatsApp. The order ID is shown in the Cash On Delivery confirmation page or email. Until this order ID verification is over, we can’t process your order.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
The delivery driver will collect the due amount for the order. The driver only accepts cash. Kindly make sure the exact amount is ready in cash for collection.

Product Return and cancellation

In the event of cancellation of your order, please write to us immediately at support@honestforwarder.com. It must be done as soon as possible, before the order is dispatched to the airport for departure.

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

We can’t accept the product return for a mere change of minds for the exchange or replacement after delivery. The return request is accepted only when it is due to product defect, damage reported on delivery or wrong item.

Credit Card & Debit Card

Honest Forwarder partners with Telr, a payment gateway company with the track record and presence in UAE, to offer a safe and secure credit/debit card processing.

Your transaction will be settled in SAR. Therefore, your bank will not charge any fee for the foreign currency conversion.

How Credit Card/Debit Card works?

Choose Credit Card/Debit Card as your payment method at the checkout page when you place your order.
Press Proceed to Pay at the checkout page and enter your credit card information in the next page of Telr, our Credit card payment gateway partner. Honest Forwarder never stores your credit card information.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
Any issue on processing your order, kindly report to us immediately at support@honestforwarder.com or through Contact Us page.

Product Return and Cancellation

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

Category links

Social Media links

PKM extractor hood with perimeter extraction, wall-mounted hood T1-90 A++IXEZ, stainless steel, 90 cm

Ask For Price

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

PKM extractor hood with perimeter extraction, wall...

Category links

Social Media links

PKM extractor hood with perimeter extraction, wall-mounted hood T1-90 A++IXEZ, stainless steel, 90 cm

Ask For Price

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

PKM extractor hood with perimeter extraction, wall...

Cash On Delivery Information

Cash on Delivery (COD)

Credit Card & Debit Card Payment Information

Credit Card & Debit Card

Max weight for health supplements.

VAT and Customs Duty For Oman

VAT and Customs Duty For Qatar

VAT and Customs Duty For Bahrain

Ask for price
