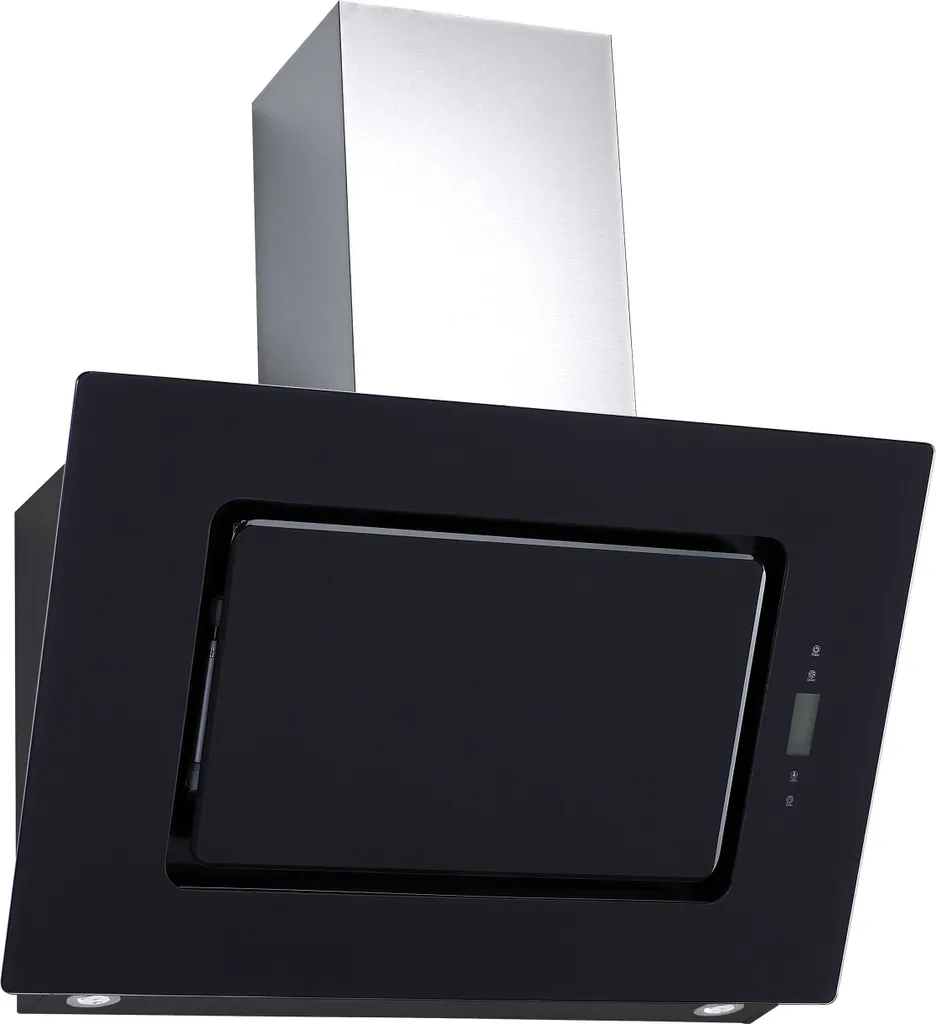

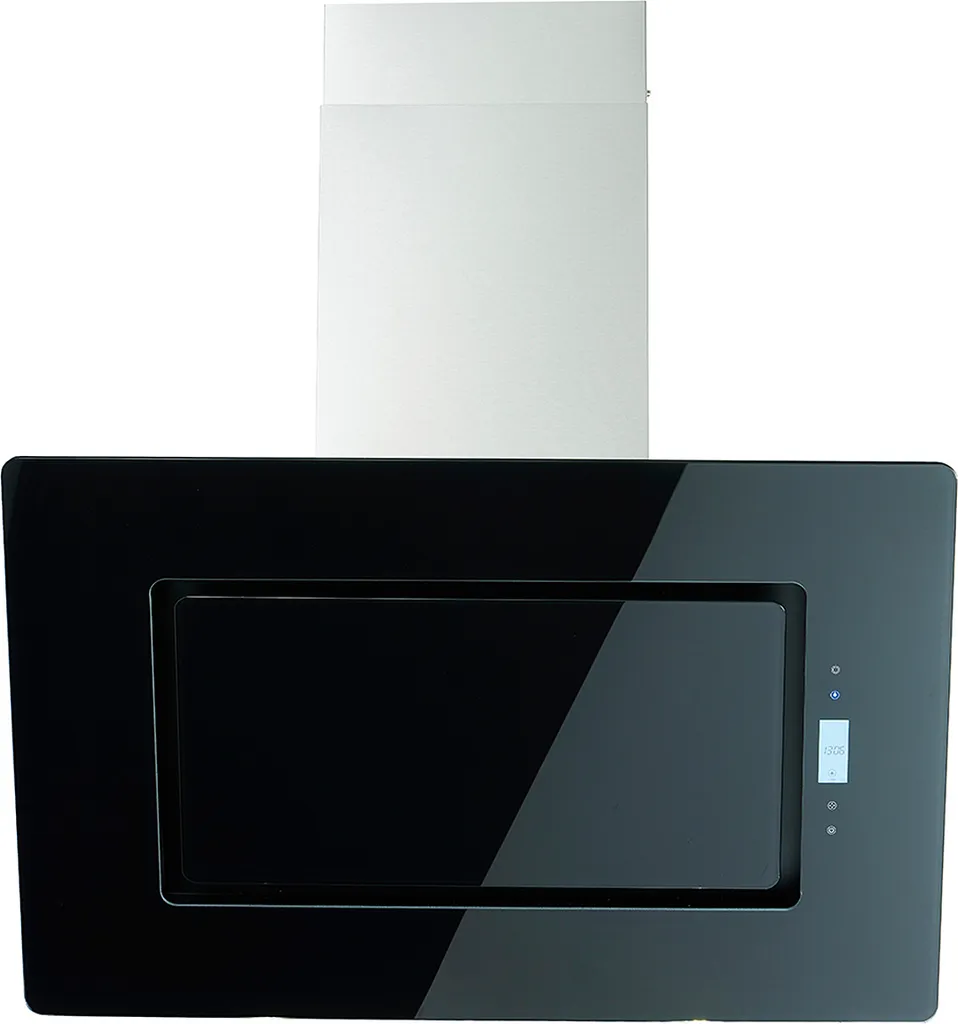

PKM extractor hood with perimeter extraction, head-free hood 9040/90BZ, stainless steel, black

PKM

SAR 1,081.00
+ SAR 6,696.00 Air Shipping

Includes any applicable VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Description

Technical Data:
Appliance type: Cooker hood with perimeter extraction
Material: Stainless steel with glass panel
Installation width: 90 cm
Wall mounting / Under-cabinet / Ceiling mounting: yes / - / -
Push buttons / Electronic buttons / Touch control: - / - / 4 pieces
Recirculation mode: yes
Extraction mode: yes
Annual energy consumption (AEChood): 40.4 kWh/year
Fluid dynamic efficiency (FDEhood): 28.5
Fluid dynamic efficiency class: A
Lighting efficiency (LEhood): 31.0 lux/W
Lighting efficiency class: A
Grease filtering efficiency: 66.3
Grease filtering efficiency class: D
Airflow at minimum/maximum speed: 415.0 m³/h / 621.0 m³/h
A-weighted sound power emission at minimum/ Maximum speed: 59 dB / 63 dB
Power consumption in off mode (Po): 0.48 W
Power consumption in standby mode (Ps): -
Power consumption of the lighting system (Wl): 3 W
Connected load: 168 W
Lighting system: Led
Power consumption per lighting unit: 2 x 1.5 W
Voltage / Frequency: 220-240V/50Hz
Features:

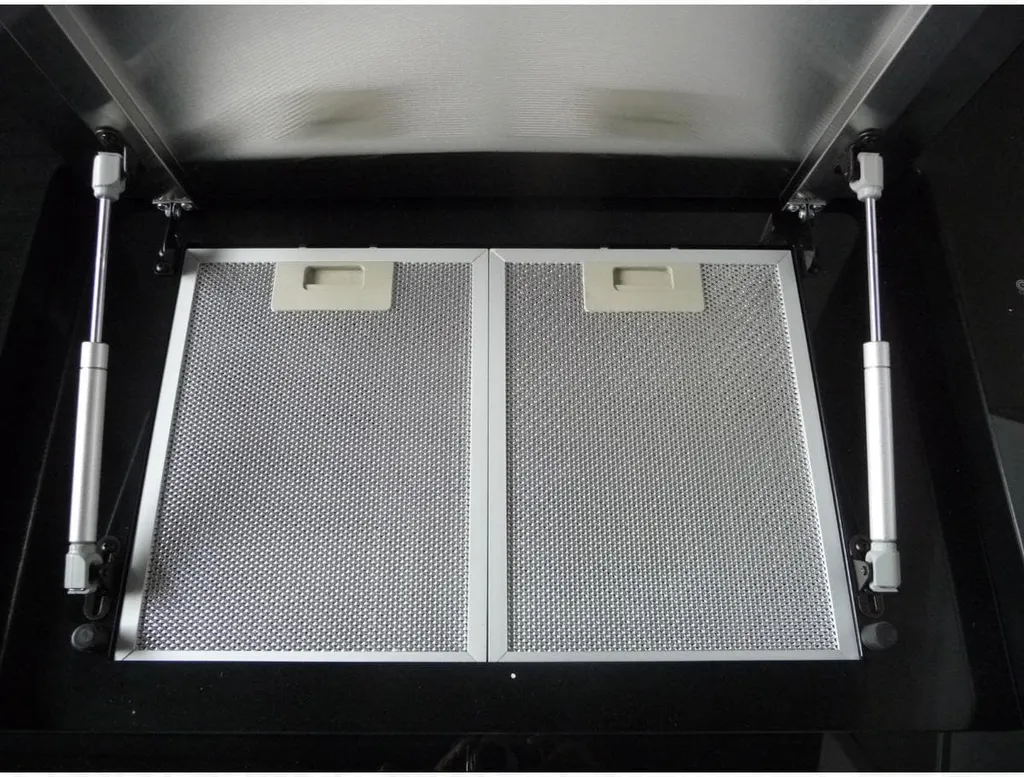

Grease filter quantity / material / dishwasher safe: 2 x MF75 / aluminum / yes
Display: yes
Telescopic chimney extendable from: 40 - 78 cm
Total height with telescopic chimney: 126.00 cm
Required quantity of carbon filters: 2 x CF110
Included accessories: Non-return valve: yes
Exhaust hose: yes, 2m Pvc
Carbon filter: optional
Mounting hardware: Yes
Recirculation diverter: AT150-4 available as an option
Features:

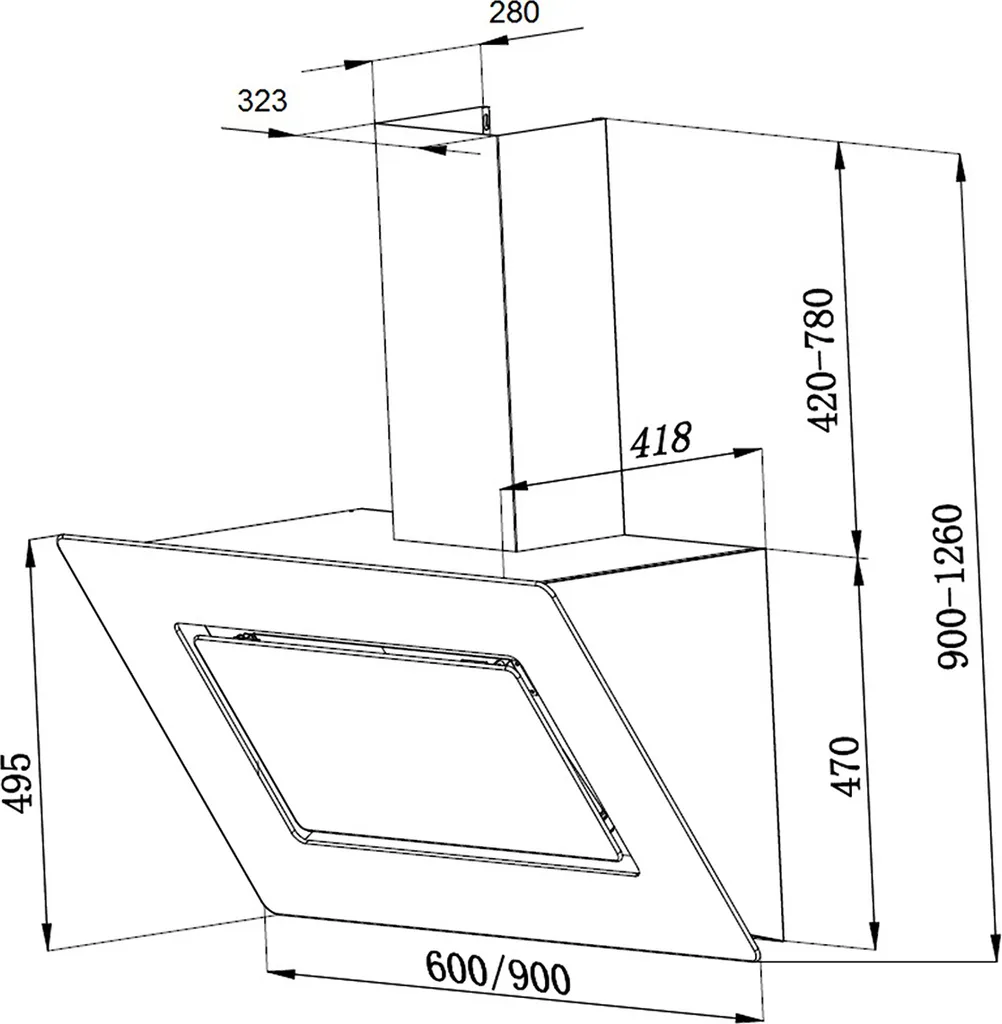

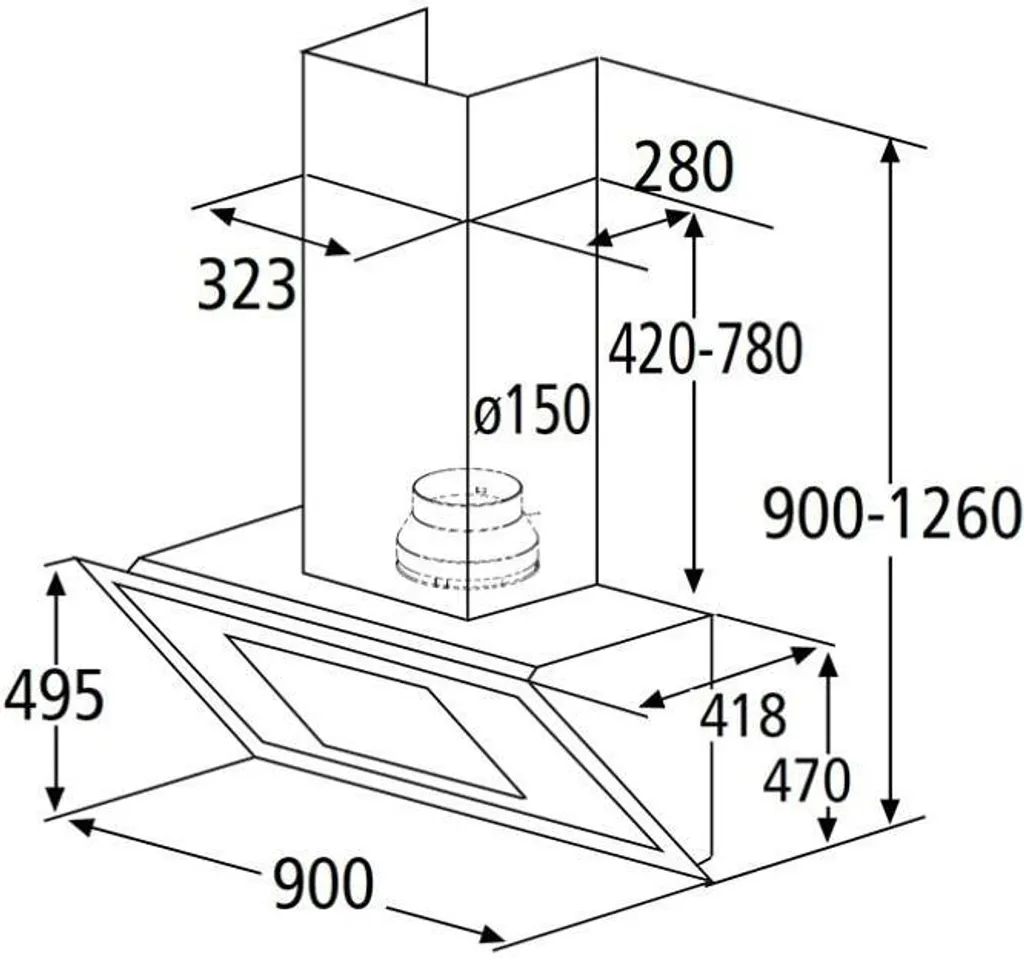

Appliance dimensions H x W x D in cm: 90.00 - 126.00 x 90.00 x 41.80
Net / Gross weight in kg: 20.50 / 24.50
Technical data:
Appliance type: Range hood with perimeter extraction
Material: Stainless steel with glass panel
Installation width: 90 cm
Wall mounting / Under-cabinet / Ceiling mounting: Yes / - / -
Push buttons / Electronic buttons / Touch control: - / - / 4 pieces
Recirculation mode: Yes
Extraction mode: Yes
Annual energy consumption (AEChood): 40.4 kWh/year
Fluid dynamic efficiency (FDEhood): 28.5
Fluid dynamic efficiency class: A
Lighting efficiency (LEhood): 31.0 lux/Watt
Lighting efficiency class: A
Grease filtering efficiency: 66.3
Grease filtering efficiency class: D
Airflow at minimum/maximum speed: 415.0 m³/h / 621.0 m³/h
Maximum airflow Qmax: -
A-weighted airborne acoustical noise emission at minimum/maximum speed: 59 dB / 63 dB
A-weighted airborne acoustical noise emission at intensive or fast speed: -
Power consumption in off mode (Po): 0.48 watts
Power consumption in standby mode (Ps): -
Power consumption of the lighting system (Wl): 3 watts
Connected load: 168 watts
Lighting system: Led
Power consumption per lighting unit: 2 x 1.5 watts
Voltage / Frequency: 220-240V/50Hz
Features:
Grease filter quantity / material / dishwasher safe: 2 x MF75 / aluminum / yes
Display: yes
Telescopic chimney extendable from: 40 - 78 cm
Total height with telescopic chimney: 126.00 cm
Required quantity of carbon filters with model designation: 2 x CF110
Included accessories: Non-return valve: yes
Exhaust hose: yes, 2m Pvc
Carbon filter: optional
Mounting hardware: yes
Recirculation diverter: AT150-4 available as an option
Features:
Appliance dimensions H x W x D in cm: 90.00 - 126.00 x 90.00 x 41.80
Packaging dimensions H x W x D in cm: 52.00 x 95.00 x 57.00
Net weight / Gross weight in kg: 20.50 kg / 24.50 kg
Brand/Trademark: Pkm
Model Identifier: 9040-90B Z
Annual Energy Consumption (AEChood): 40.4 kWh/year
Fluid Dynamic Efficiency (FDEhood): 28.5
Fluid Dynamic Efficiency Class: A
Lighting Efficiency (LEhood): 31.0 lux/Watt
Lighting Efficiency Class: A
Grease Filtering Efficiency: 66.3
Grease Filtering Efficiency Class: D
Airflow at minimum speed in normal operation: 415 m³/h
Airflow at maximum speed in normal operation: 621 m³/h
Airflow in intensive or fast operation: - m³/h
A-weighted airborne acoustical noise emission at minimum available speed in normal operation: 59 dB
A-weighted Airborne noise emission at maximum available speed in normal operation: 63 dB
A-weighted airborne noise emission during operation on the intensive or fast setting: - dB
Power consumption in off mode: 0.48 W
Power consumption in standby mode: - W
Stylish design in black
Head-free hood
Optimal visibility thanks to Led lighting system

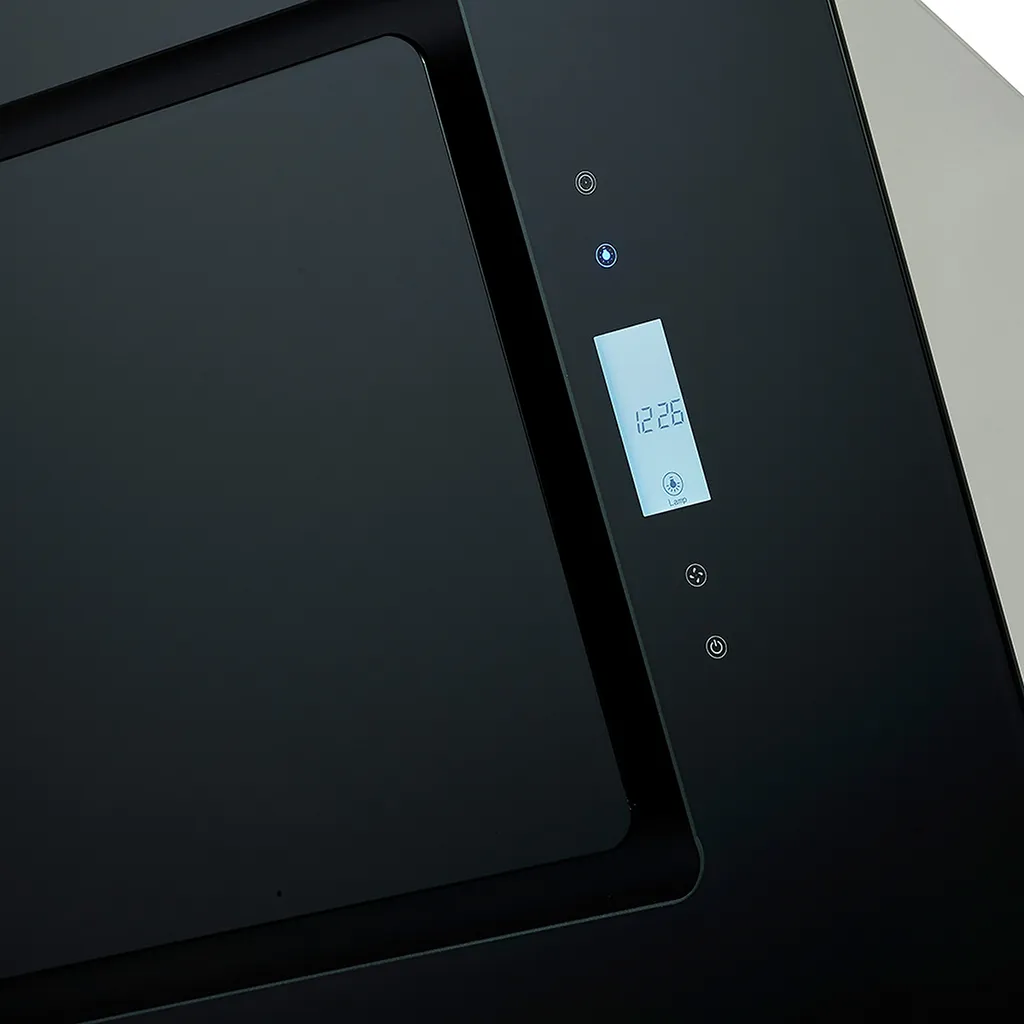

Perfect handling thanks to touch control with display

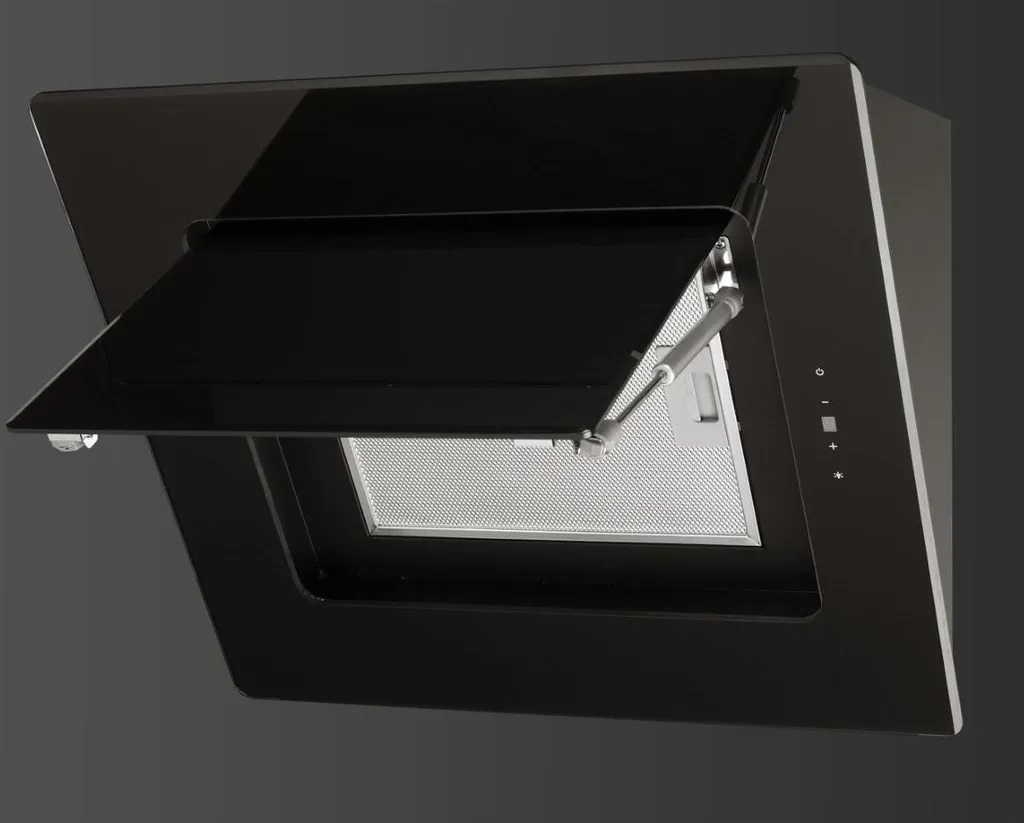

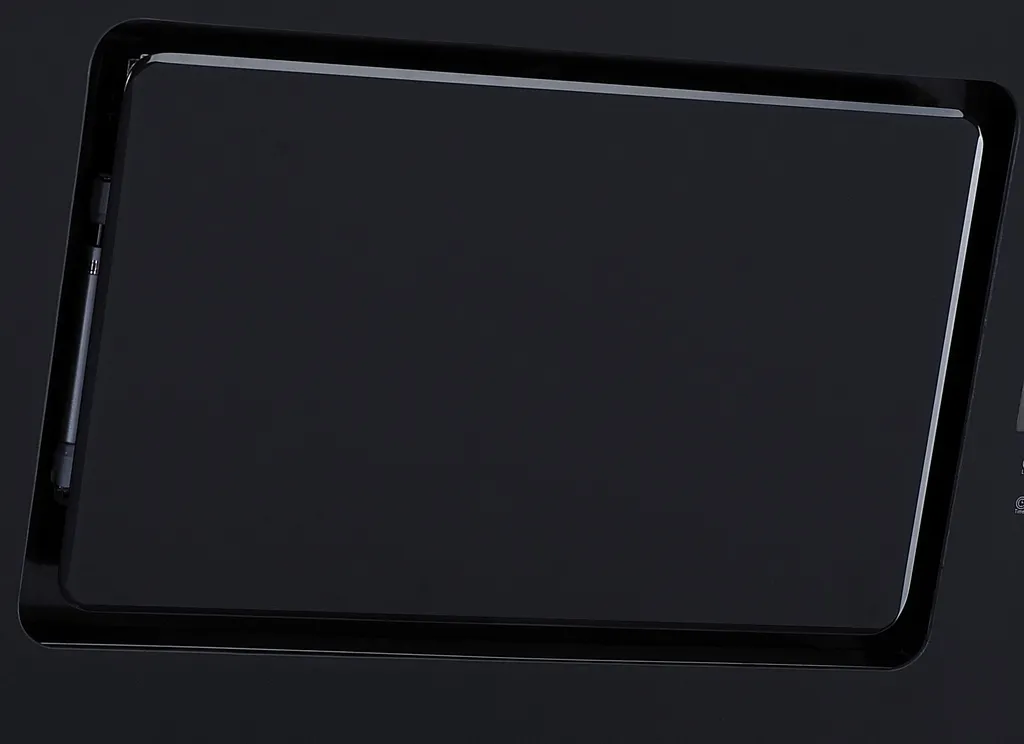

With practical perimeter extraction technology
A real eye-catcher for your kitchen
The Pkm 9040/90BZ extractor hood is a head-free hood. Its characteristic diagonal shape offers ideal freedom of movement while cooking, even for tall people. The recirculation system reliably and effectively removes odors and grease particles from the air, even without complicated installation. Thanks to its energy efficiency, the appliance falls into the category of energy-saving. On average, you can expect low energy consumption of 41 kWh. Led lamps provide bright illumination for your work surface, and are also very energy-efficient and long-lasting. As these lamps are top-of-the-line, they are categorized as lighting. You can select from four fan speeds as needed. A 635-watt fan extracts the exhaust air. Your work surfaces will remain clean thanks to an aluminum grease filter that reliably purifies the air. The product is intuitive and easy to operate with a simple touch. Visually, the extractor hood impresses immediately with its classic stainless steel finish. To prevent outside air from entering the exhaust system, the model is equipped with a backflow preventer. The air circulation rate of 635.0 m³/h also ensures excellent results.
Product details:
Appliance type: Range hood with perimeter extraction
Material: Stainless steel with glass
Installation width: 90 cm
Wall mounting
Touch controls: 4
Recirculation mode
Extraction mode
Annual energy consumption (AEChood): 40.40 kWh/year
+ (highest efficiency) to D (lowest efficiency) A
Fluid dynamic efficiency (FDEhood): 28.50
Fluid dynamic
Lighting efficiency (LEhood): 31.00 lux/watt
Lighting
Grease filtering efficiency: 66.30
Grease filtering efficiency class: D
Airflow at minimum speed: 415.00 m³/h
Airflow at maximum speed: 621.00 m³/h
A-weighted airborne noise emission at minimum speed 59.00 dB/A
A-weighted airborne noise emission at maximum speed 63.00 dB/A
Power consumption in off mode (Po) 0.48 watts
Power consumption of the lighting system (Wl) 3.00 watts
Connected load 168.00 watts
Lighting system Led
Power consumption per lighting unit 2 x 1.50 watts
Voltage 220-240 volts
Frequency 50 Hz
Features:
Grease filter quantity 2 x MF75
Grease filter material aluminum
Grease filters dishwasher-safe
Display
Telescopic chimney extendable from 40.00 - 78.00 cm
Total height with telescopic chimney 126.00 cm
Carbon filter required for recirculation mode: 2 x CF110 (optionally available)
Included accessories: Non-return valve, 2m Pvc exhaust hose, mounting hardware
AT150-4 recirculation diverter available as an option
Dimensions and weight:
Appliance dimensions (H x W x D) 90.00 - 126.00 x 90.00 x 41.80 cm
Packaging dimensions (H x W x D) 52.00 x 95.00 x 57.00 cm
Net weight 20.50 kg
Gross weight 24.50 kg
Maximum extraction capacity:
621 m³/h
Extraction type:
Exhaust/Recirculation
Fluid dynamic efficiency class:
Lighting efficiency class:
Oil filter efficiency class:
Number of speeds:
Noise level:
64 dB
Noise level (low speed):
64 dB
Noise level (high speed):
59 dB
Airflow (low speed):
415 m³/h
Type:
Wall-mounted
Product color:
Black
Built-in display:
Housing material:
Glass
Control:
Touch
Display type:
Lcd
Exhaust location:
Top
Grease filter type:
Aluminum
Number of filters:
1 piece
Dishwasher filter:
Removable filter:
Washable filter:
Lamp power:
1.5 W
Number of lamps:
2 bulb(s)
Bulb type:
Led
Luminous efficiency (Le):
31 lux per watt
dt>
Annual Energy consumption:
40.4 kWh
Scale:
A+++ to D
Energy source:
Connected load:
168 W
Ac input voltage:
220 - 240 V
Ac input frequency:
50 Hz
Width:
900 mm
Depth:
418 mm
Height (min):
90 cm
Height (max):
126 cm
Weight:
20.5 kg
Packaging width:
945 mm
Packaging depth:
573 mm
Packaging height:
533 mm
Package weight:
24.5 kg
Product features:
Stainless steel with glass
Recirculating air operation
Extraction air operation
Grease filtering efficiency class D
Dishwasher-safe grease filter
Led lighting system
Technical data:
Appliance type: Slanted hood with perimeter extraction
Material: Stainless steel with glass
Installation width: 90 cm
Wall mounting: Yes
Touch controls: 4
Power levels: 3 levels
Recirculation mode: Yes
Extraction mode: Yes
Annual energy consumption (AEChood): 40.40 kWh/year
+ (highest efficiency) to D (lowest efficiency): A
Fluid dynamic efficiency (FDEhood): 28.50
Fluid dynamic efficiency class: A
Lighting efficiency (LEhood): 31.00 lux/watt
Lighting efficiency class: A
Grease filtering efficiency: 66.30
Grease filtering efficiency class: D
Airflow at minimum speed: 415.00 m³/h
Airflow at Maximum speed: 621.00 m³/h
A-weighted airborne noise emission at minimum speed: 59.00 dB/A
A-weighted airborne noise emission at maximum speed: 63.00 dB/A
Power consumption in off mode (Po): 0.48 watts
Power consumption of the lighting system (Wl): 3.00 watts
Connected load: 168.00 watts
Lighting system: Led
Power consumption per lighting unit: 2 x 1.50 watts
Voltage: 220-240 volts
Frequency: 50 Hz
Features:
Grease filter quantity: 2 x MF75
Grease filter material: Aluminum
Dishwasher-safe grease filters: Yes
Display: Yes
Telescopic chimney extendable from/to: 40.00 - 78.00 cm
Total height through Telescopic chimney: 126.00 cm
Required quantity of carbon filters with model designation: 2 x CF110
Included accessories: Non-return valve: yes
Included accessories: Exhaust hose: yes, 2m Pvc
Included accessories: Carbon filter: optional
Included accessories: Mounting material: yes
Recirculation diverter: AT150-4 available as an option
Dimensions & Weight:
Dimensions of appliance H x W x D in cm: 90.00 - 126.00 x 90.00 x 41.80
Dimensions of packaging H x W x D in cm: 52.00 x 95.00 x 57.00
Net weight: 20.50 kg
Gross weight: 24.50 kg
Product type:
Head-free hood
Light source type:
Led
Color:
Stainless steel
Height [cm]
126.00
Installation height from [cm]
Installation height to [cm]
126.00
Width [cm]
90.00
Depth [cm]
41.8
Maximum noise level [dB(A)]
Recirculation mode
Number of light sources
Exhaust duct diameter [mm]
150
Operation
Touch control
Number of metal grease filters
with glass screen
Head-free hood
Air circulation [m³/h]
621
Width in cm:
Maximum airflow in m³/h:
610
Mounting type:
Wall/cabinet mounting
Filter system:
Metal filter
Extraction system:
Extraction/Recirculation
Number of motors:
Number of fan speeds:
Noise emission dB(A) re1 pW:
Annual energy consumption in kWh:
Product type:
Island hood
Chimney design:
Head-free
Glass element:
Fluid dynamic efficiency (Eu):
Lighting efficiency class (Eu):
Grease filtering efficiency class (Eu):
This Pkm 9040/40 Bz extractor hood in black features perimeter extraction and is characterized by its [missing information]. Both recirculation and extraction modes ensure optimal removal of kitchen odors and help you maintain control.
n.a.
Head-free hood, glass, black; 635 m³/h; 2 x 40 cm chimney flues, 2 x 1.5 Watt Led lighting; 90 cm wide, hood body painted black

Product Information

Dimension : 24500 g
EAN : 4030608503418
Farbe : Schwarz
Höhe : 52 cm
Maße : 90,00 - 126,00 x 90,00 x 41,80 cm
Tiefe : 41.8 cm
Breite : 57 cm
Modell : 9040/90BZ
Gewicht : 24500 g
Hersteller : PKM
Montageort : Wand
Lautstärke : 64 dB
Lieferumfang : - Rückschlagklappe - Abluftschlauch, 2m PVC - Befestigungsmaterial - 2 x MF75 Fettfilter aus Aluminium
Luftdurchsatz : 621 m³/h
Herstellernummer : 50341
Anzahl Leuchtmittel : 2
Durchmesser Abluftleitung : 150 mm

Images

Reviews

Be the first to review. Login

Does not include VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Qty:

Share on:

PKM extractor hood with perimeter extraction, head...

Cash on Delivery (COD)

Cash on Delivery is a payment method for customer orders of Honest Forwarder throughout the UAE and KSA.

For the Cash on delivery orders, you pay at the time the order is delivered by the delivery driver and the driver only accepts cash.

How cash on delivery (COD) works?

Choose Cash On Delivery as your payment method at the checkout page when you place your order.
Send us the order ID over WhatsApp. The order ID is shown in the Cash On Delivery confirmation page or email. Until this order ID verification is over, we can’t process your order.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
The delivery driver will collect the due amount for the order. The driver only accepts cash. Kindly make sure the exact amount is ready in cash for collection.

Product Return and cancellation

In the event of cancellation of your order, please write to us immediately at support@honestforwarder.com. It must be done as soon as possible, before the order is dispatched to the airport for departure.

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

We can’t accept the product return for a mere change of minds for the exchange or replacement after delivery. The return request is accepted only when it is due to product defect, damage reported on delivery or wrong item.

Credit Card & Debit Card

Honest Forwarder partners with Telr, a payment gateway company with the track record and presence in UAE, to offer a safe and secure credit/debit card processing.

Your transaction will be settled in SAR. Therefore, your bank will not charge any fee for the foreign currency conversion.

How Credit Card/Debit Card works?

Choose Credit Card/Debit Card as your payment method at the checkout page when you place your order.
Press Proceed to Pay at the checkout page and enter your credit card information in the next page of Telr, our Credit card payment gateway partner. Honest Forwarder never stores your credit card information.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
Any issue on processing your order, kindly report to us immediately at support@honestforwarder.com or through Contact Us page.

Product Return and Cancellation

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

Category links

Social Media links

PKM extractor hood with perimeter extraction, head-free hood 9040/90BZ, stainless steel, black

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

PKM extractor hood with perimeter extraction, head...

Category links

Social Media links

PKM extractor hood with perimeter extraction, head-free hood 9040/90BZ, stainless steel, black

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

PKM extractor hood with perimeter extraction, head...

Cash On Delivery Information

Cash on Delivery (COD)

Credit Card & Debit Card Payment Information

Credit Card & Debit Card

Max weight for health supplements.

VAT and Customs Duty For Oman

VAT and Customs Duty For Qatar

VAT and Customs Duty For Bahrain

Ask for price
