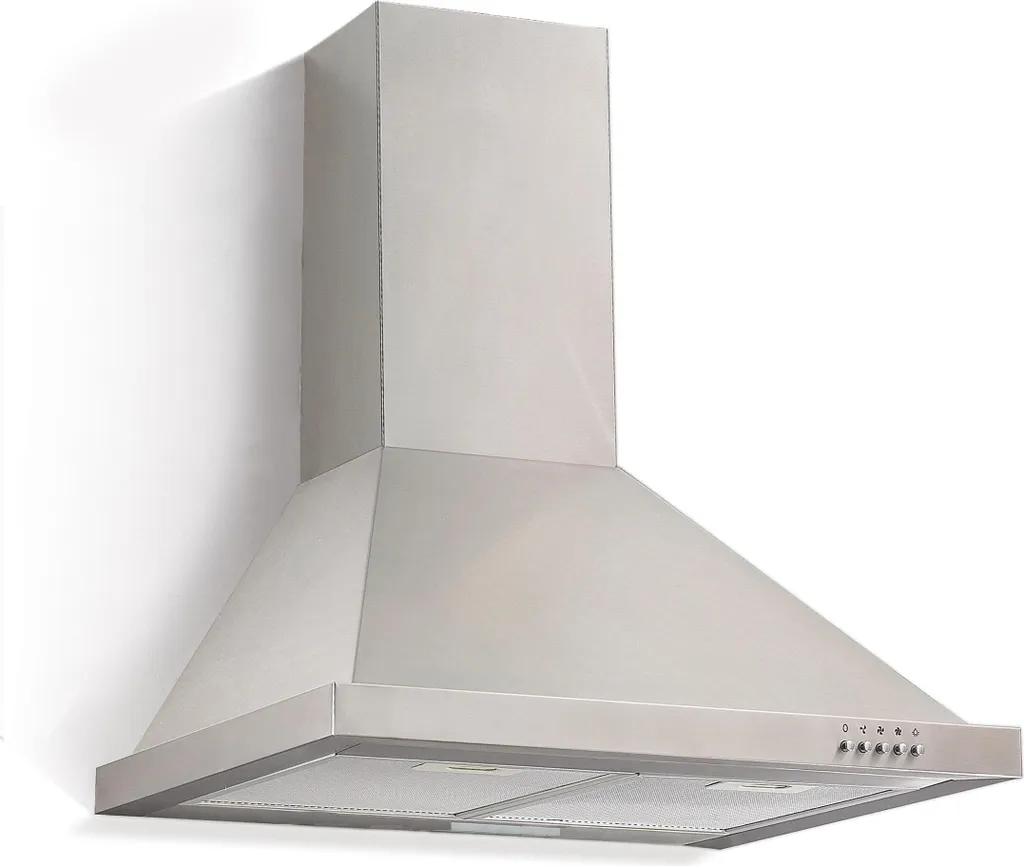

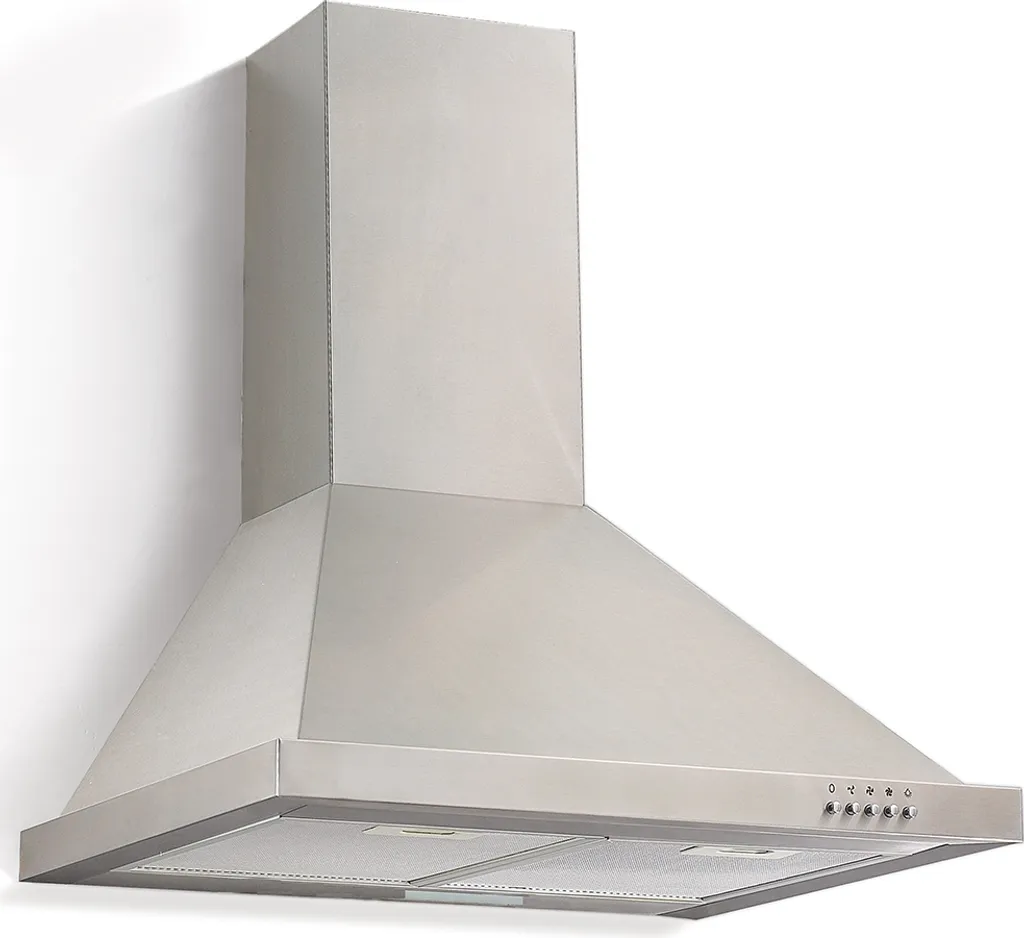

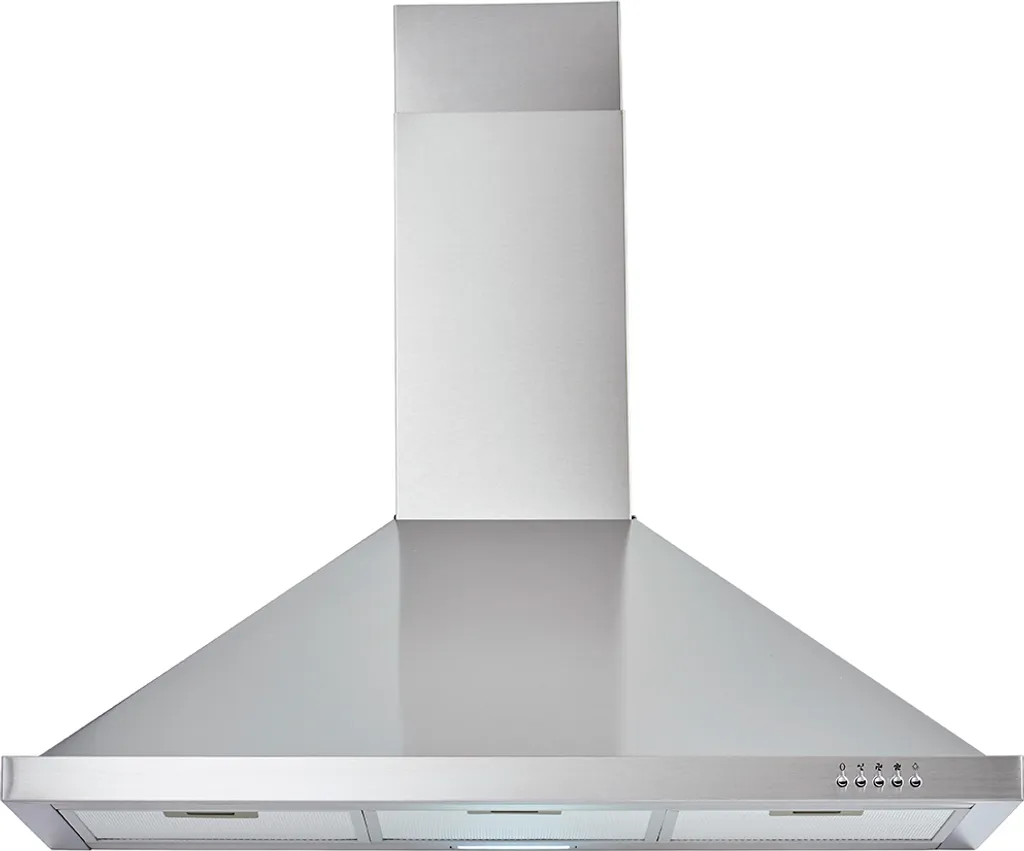

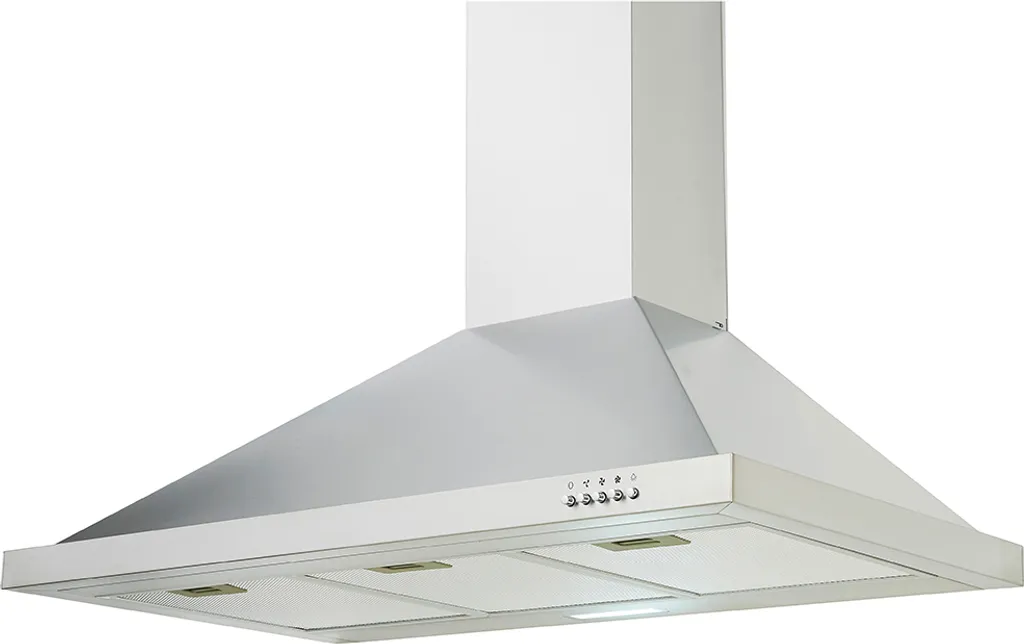

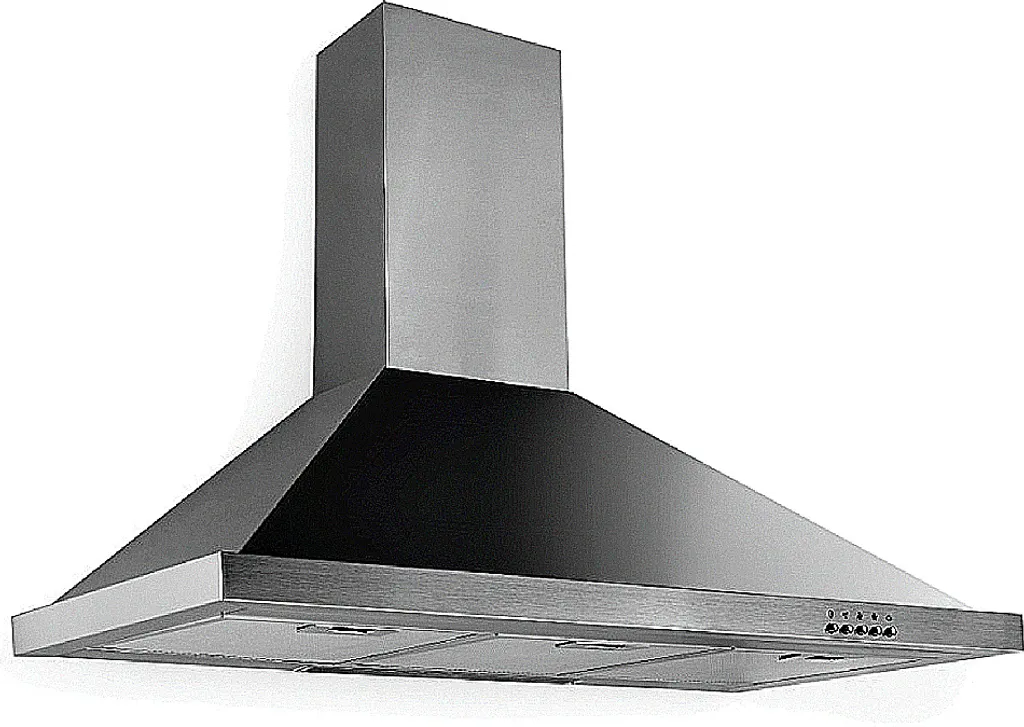

PKM stainless steel extractor hood, chimney hood, wall-mounted hood 9090-2H 90cm 363.7 m³/h

PKM

SAR 686.00
+ SAR 9,418.00 Air Shipping

Includes any applicable VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Description

Stainless steel chimney hood with 2 grease filters
329 m³/h Led lighting
1 x 1.5 watt, 90 cm wide
Carbon filter optional CF130
Pkm 9090-2H 90 cm stainless steel chimney hood with large metal grease filters
(Spectrum A+++ to D)
Stainless steel chimney hood with 3 washable metal grease filters (dishwasher safe).
Maximum air circulation: 364.0 m³/h
Exhaust air* or recirculation mode possible, the additional
CF130 activated carbon filters are also available from us (neutralize odors in recirculation mode).
Technical data
Appliance type: Extractor hood
Material: Stainless steel
Installation width: 90 cm
Wall mounting: Yes

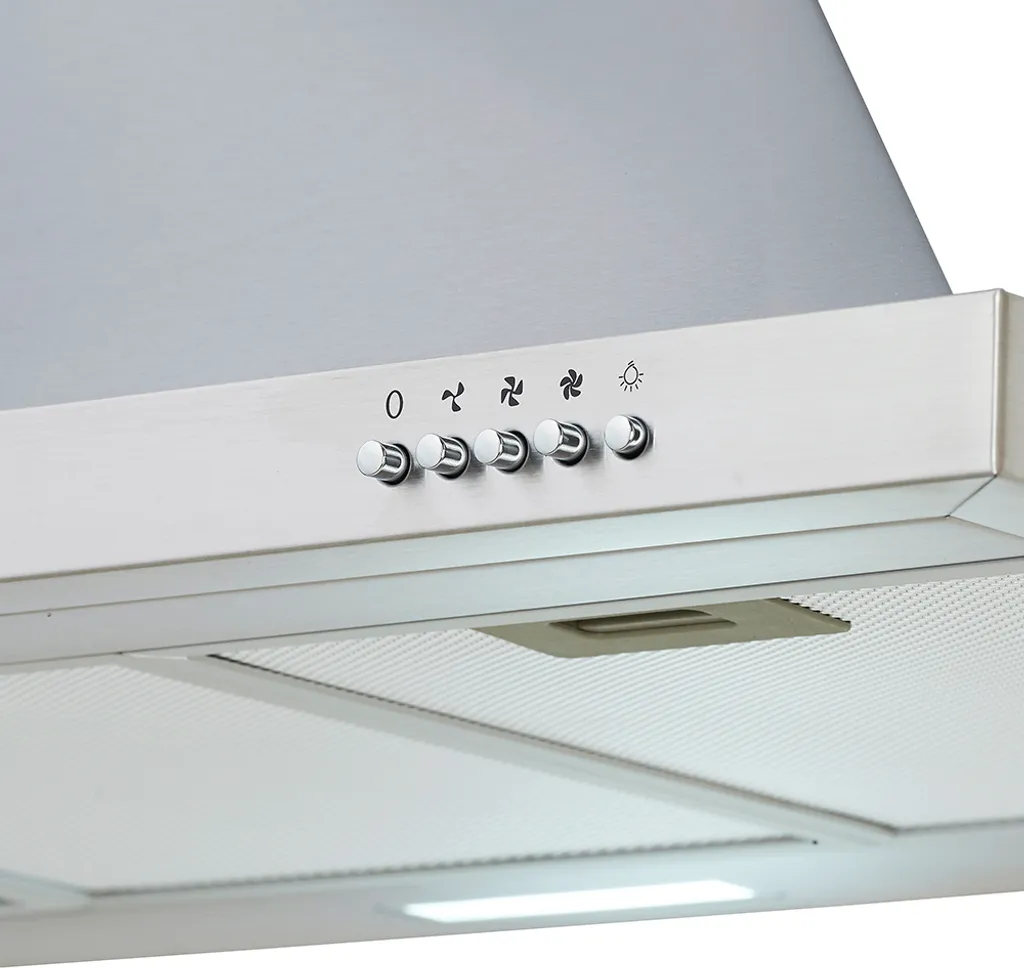

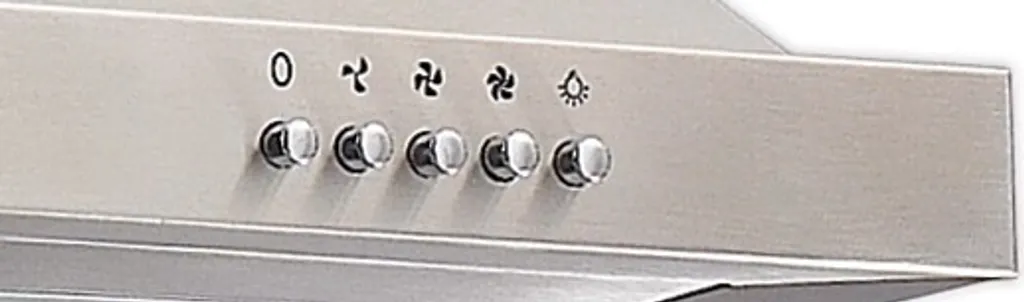

Push buttons: 5
Recirculation mode: Yes
Exhaust air operation*: Yes
Annual energy consumption (AEChood): 28.0 kWh/year
Fluid dynamic efficiency (FDEhood): 14.9
Fluid dynamic efficiency class: D
Lighting efficiency (LEhood): 24.4 lux/Watt
Lighting efficiency class: B
Grease filtering efficiency: 77.3
Grease filtering efficiency class: C
Airflow at minimum/maximum speed: 217.0 m³/h 331.0 m³/h
Maximum airflow Qmax: 364.0 m³/h
A-weighted sound pressure level at minimum/maximum speed: 57 dB/64 dB
A-weighted sound pressure level at intensive or fast speed: -
Power consumption in off mode (Po): -
Power consumption in standby mode (Ps): -
Power consumption of the lighting system (Wl): 2.5 watts
Connected load: 67.5 watts
Lighting system: Led
Power consumption per lighting unit: 1 x 2.5 watts
Voltage / Frequency: 220-240V/50Hz
Grease filter quantity / material / dishwasher safe: 3 pieces / aluminum / yes

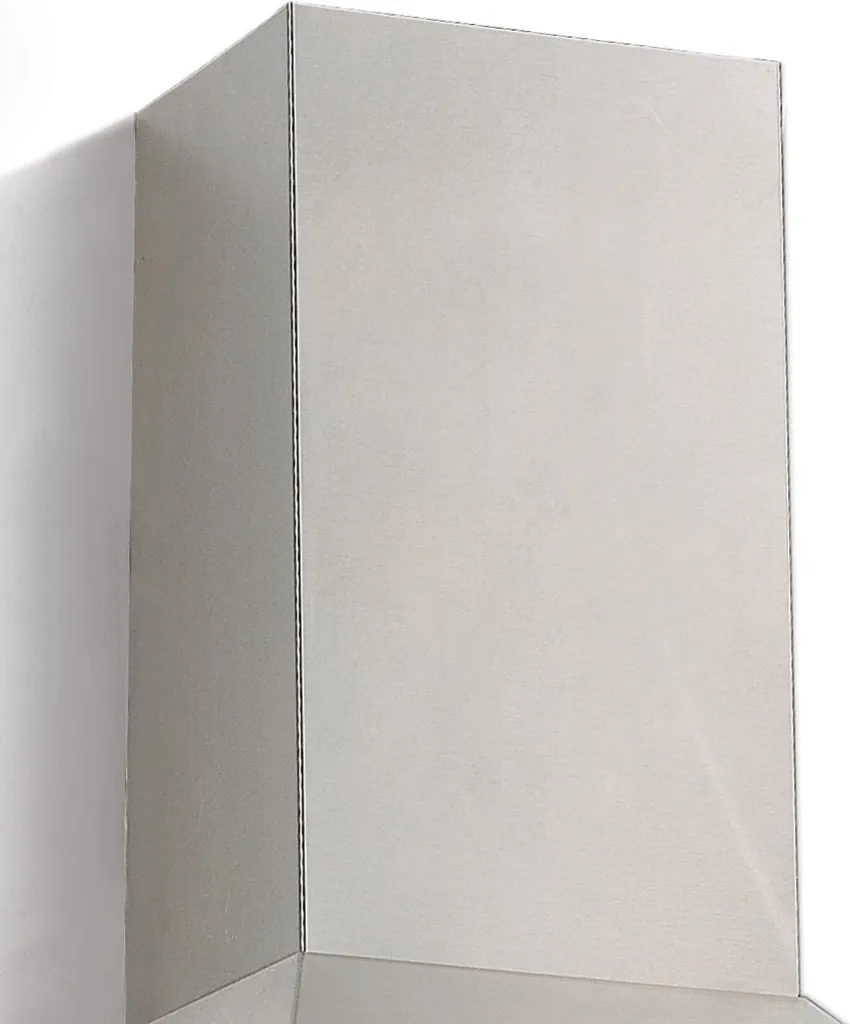

Telescopic chimney extendable from 40 - 78 cm
Total height with telescopic chimney: 108.00 cm
Required quantity of carbon filters (not included): 2 x CF130 Ean: 4030608500530
Included accessories: non-return valve, exhaust hose
Carbon filter: optional
Mounting hardware: yes
Instruction manual: yes

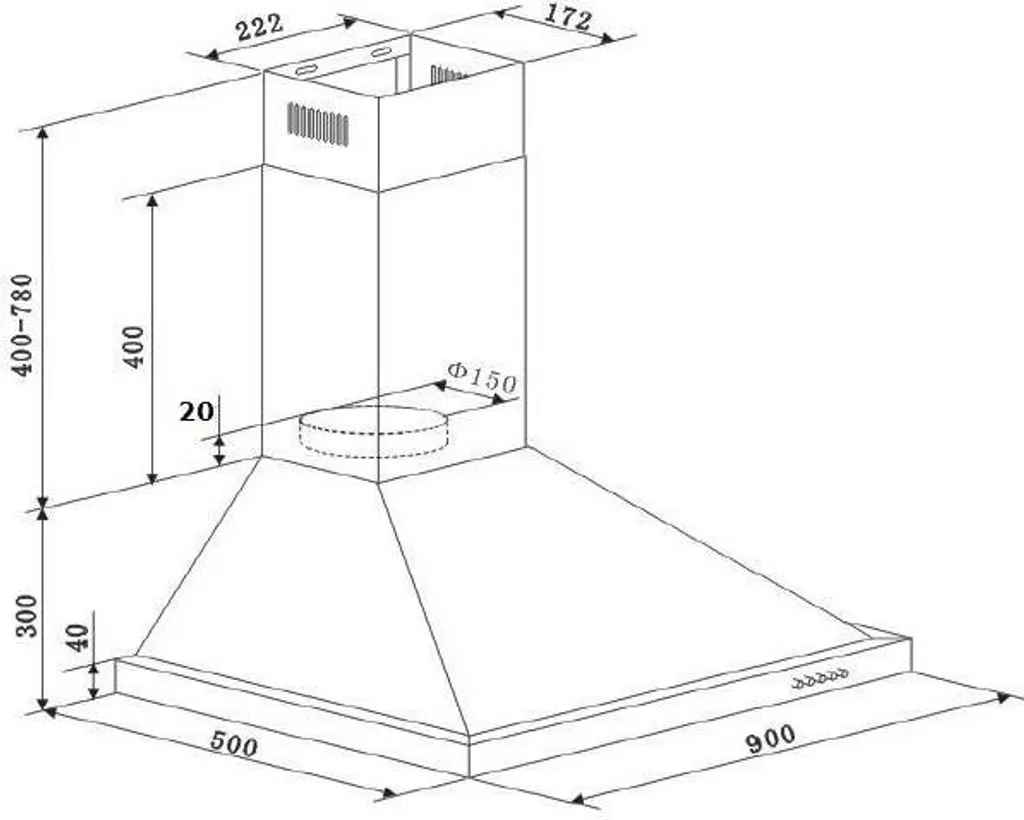

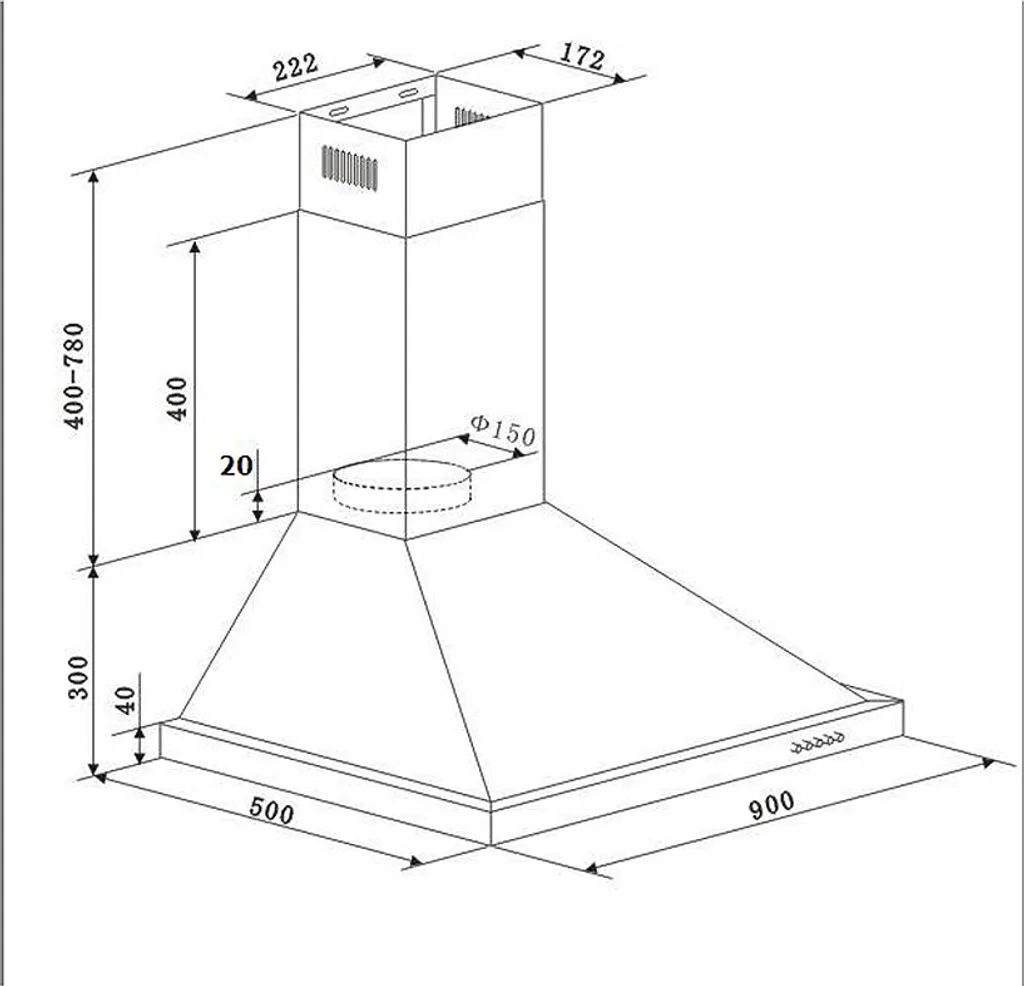

Appliance dimensions H x W x D in cm: 30.00 - 108.00 x 90.00 x 50.00
Packaging dimensions H x W x D in cm: 57.00 x 96.00 x 37.00
Net weight / Gross weight in kg: 12.00 kg / 14.00 kg
* Exhaust air operation: when connected to a ventilation chimney or exhaust air to the outside (wall penetration = 150 mm Ø / bore approx. 160 mm Ø)
Pkm 9090-2H Chimney Hood
Maximum extraction capacity:
363.7 m³/h
Extraction type:
Exhaust air/Recirculating air
Fluid dynamic efficiency class:
Lighting efficiency class:
Oil filter efficiency class:
Noise level:
66 dB
Noise level (slow speed):
57 dB
Noise level (high speed):
64 dB
Type:
Wall-mounted
Product color:
Stainless steel
Housing material:
Stainless steel
Controls:
Buttons
Grease filter type:
Aluminum
Number of filters:
3 pieces
Dishwasher filter:
Lamp power:
2.5 W
Number of lamps:
1 bulb
Bulb type:
Led
Annual energy consumption:
38 kWh
Connected load:
67.5 W
Ac input voltage:
220 - 240 V
Ac input frequency:
50 Hz
(Lt):
Width:
900 mm
Depth:
500 mm
Height (min):
38 cm
Height (max):
108 cm
Weight:
12 kg
Packaging width:
960 mm
Packaging depth:
370 mm
Packaging height:
570 mm
Package weight:
14 kg
Width in cm:
Maximum airflow in m³/h:
329
Mounting type:
Wall/cabinet mounting
Filter system:
Metal filter
Extraction system:
Extraction/recirculation
Number of motors:
Number of fan speeds:
Noise emission dB(A) re1 pW:
Annual energy consumption in kWh:
Product type:
Island hood
Chimney shape:
Trapezoidal
Fluid dynamic efficiency (Eu):
Lighting efficiency class (Eu):
Grease separation efficiency class (Eu):
This 90 cm wide stainless steel extractor hood is ideal for wall mounting above cooktops. The hood quickly and completely removes rising air from the cooktop and features 5 push buttons, recirculation/extraction mode, airflow at minimum speed 229 m³/h, at maximum speed 315 m³/h, noise level min. 56 dB, Led lighting 1 x 2.5 watts, energy consumption 37.5 kWh/year, suitable carbon filters 2 x Cf 130 (Ek item no. 038898)

Product Information

Dimension : 12500 g
EAN : 4030608504668
Farbe : Silber
Höhe : 57 cm
Maße : 50 cm x 90 cm x 108 cm
Tiefe : 50 cm
Breite : 90 cm
Modell : 9090-2H
Gewicht : 12500 g
EPREL ID : 2112353
Hersteller : PKM
Montageort : Wand
Lautstärke : 66 dB
Lieferumfang : Dunstabzugshaube, Rückschlagklappe, Abluftschlauch, Befestigungsmaterial, Bedienungsanleitung
Luftdurchsatz : 363.7 m³/h
Herstellernummer : 4030608504668_103d
Anzahl Leuchtmittel : 1
Durchmesser Abluftleitung : 150 mm
