KERN OBL 156 Phase contrast microscope trinocular

KERN

Ask For Price

Includes any applicable VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Max weight for health supplements applies.
Card payment to be settled in SAR. No conversion fee.
Credit card

Summary

For low contrast preparations

Description

Obl 156 Phase contrast microscope trinocular by Kern
The phase contrast microscope of the Obl-15 series is especially suitable for very translucent, thin and low-contrast preparations such as living mammalian cells, bacteria and tissue. Direct imaging of cells with low inherent contrast is possible using the phase contrast technique - without staining the structures beforehand. A height-focusable and
fixed-precenter phase contrast condenser with aperture diaphragm
as well as the field diaphragm allow
simplified Köhler illumination
and thus powerful phase contrast imaging of the specimen. Two objective lenses in Infinity E-Plan grind can focus sharply at infinity and are part of the high-quality equipment, as are the two phase contrast objectives, a
continuously dimmable Led illumination
and
colored filters
. For recordings and demonstrations in the medical and scientific fields, the trinocular microscope can be equipped with an optional camera via a corresponding C-mount adapter (not included).
Product details
Trinocular transmitted light microscope with phase contrast technology
Especially
for very translucent, low-contrast specimens
Applications in hematology, urology, gynecology, dermatology, pathology, microbiology and parasitology, immunology, sewage treatment plants, oncology, entomology, veterinary, water analysis

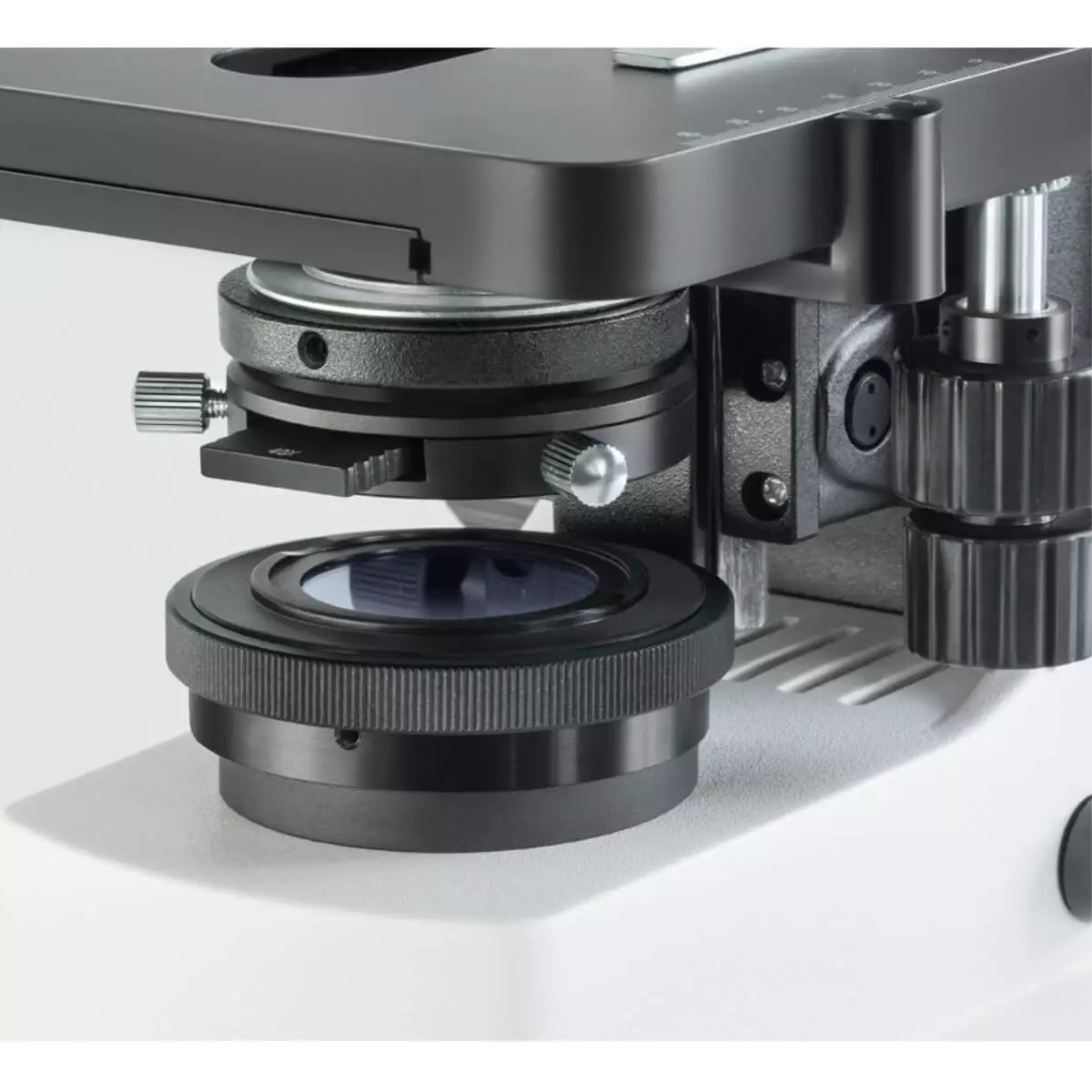

Fixed-precentered and focusable Abbe condenser for brightfield and phase contrast
Mechanical stage for 2 slides
Coaxial coarse and fine drive on both sides with scale (2 μm)
Incl. phase contrast condenser, Ph slider, green filter, dust cover and eyecups
Dimensions: W 395 mm x D 200 x H 380 mm
Weight: 6.7 kg
Technical details
Infinity E-Plan lenses (infinity corrected):
- 4x / 0.10 / working distance 12.1 mm
- 100x / 1.25 (oil) (spring loaded) / working distance 0.19 mm
Phase contrast units:
- Infinity Ph plan objective 10 x and 40 x
- Ph slider 10 x and 40 x
- Centering eyepiece
Optical system: Ph condenser Abbe (numerical aperture) 1.25 pre-centered, for brightfield and phase contrast
Illumination:
3 W Led (transmitted light)
Siedentopf:
Butterfly
30° inclined, 360° rotatable

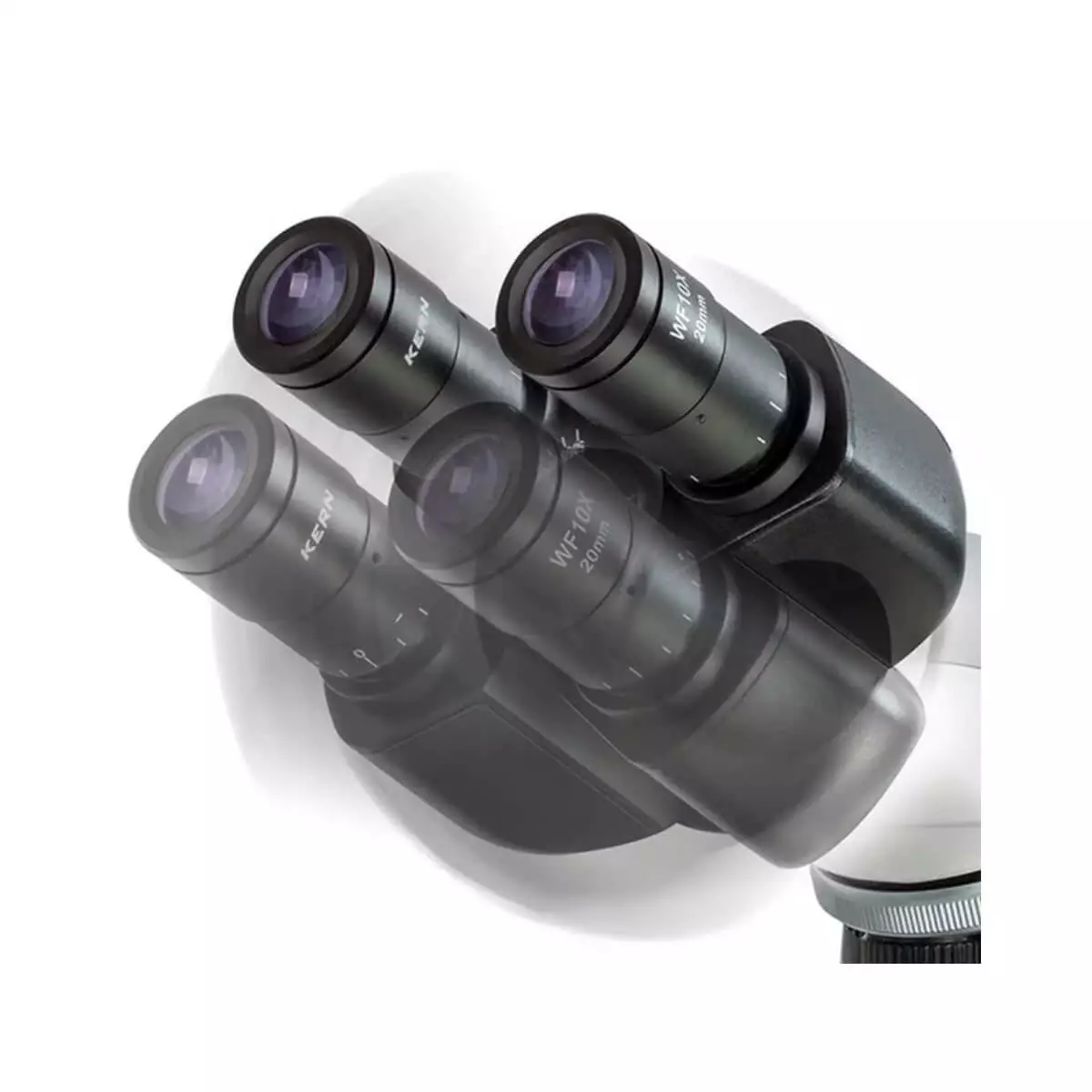

Eyepieces: High widefield, 10x magnification, Ø 20 mm
Dioptric compensation: one-sided
Color filters: blue (built-in), green
Scope of delivery
1 Kern Obl 156 phase contrast microscope trinocular
1 power supply unit
2 eyecups
1 dust cover

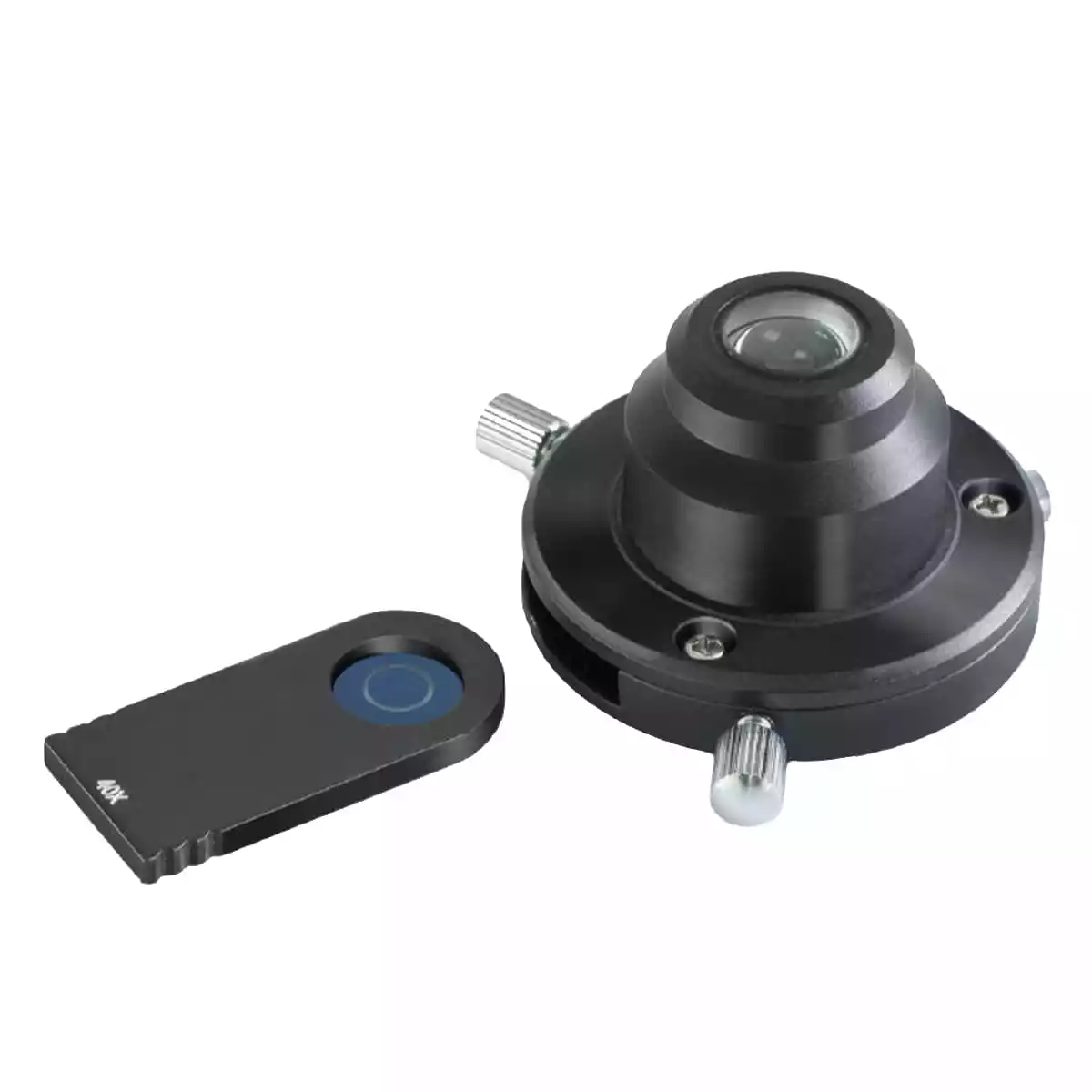

1 phase contrast condenser
1 Ph slider
1 instruction manual
Return policy
This item is excluded from return.
Consumers do not have a right of withdrawal for sealed goods that are not suitable for return for reasons of health protection or hygiene, if the seal has been removed after delivery.

Product Information

EAN : 4045761267800
Product number : 102636.0
Manufacturer name : KERN
Manufacturer item no. : OBL 156
