EDAN SE-12 Express ECG (with ergonomics kit)

EDAN

Ask For Price

Includes any applicable VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Max weight for health supplements applies.
Card payment to be settled in SAR. No conversion fee.
Credit card

Summary

Mobile 12-channel device for resting or stress Ecg

Description

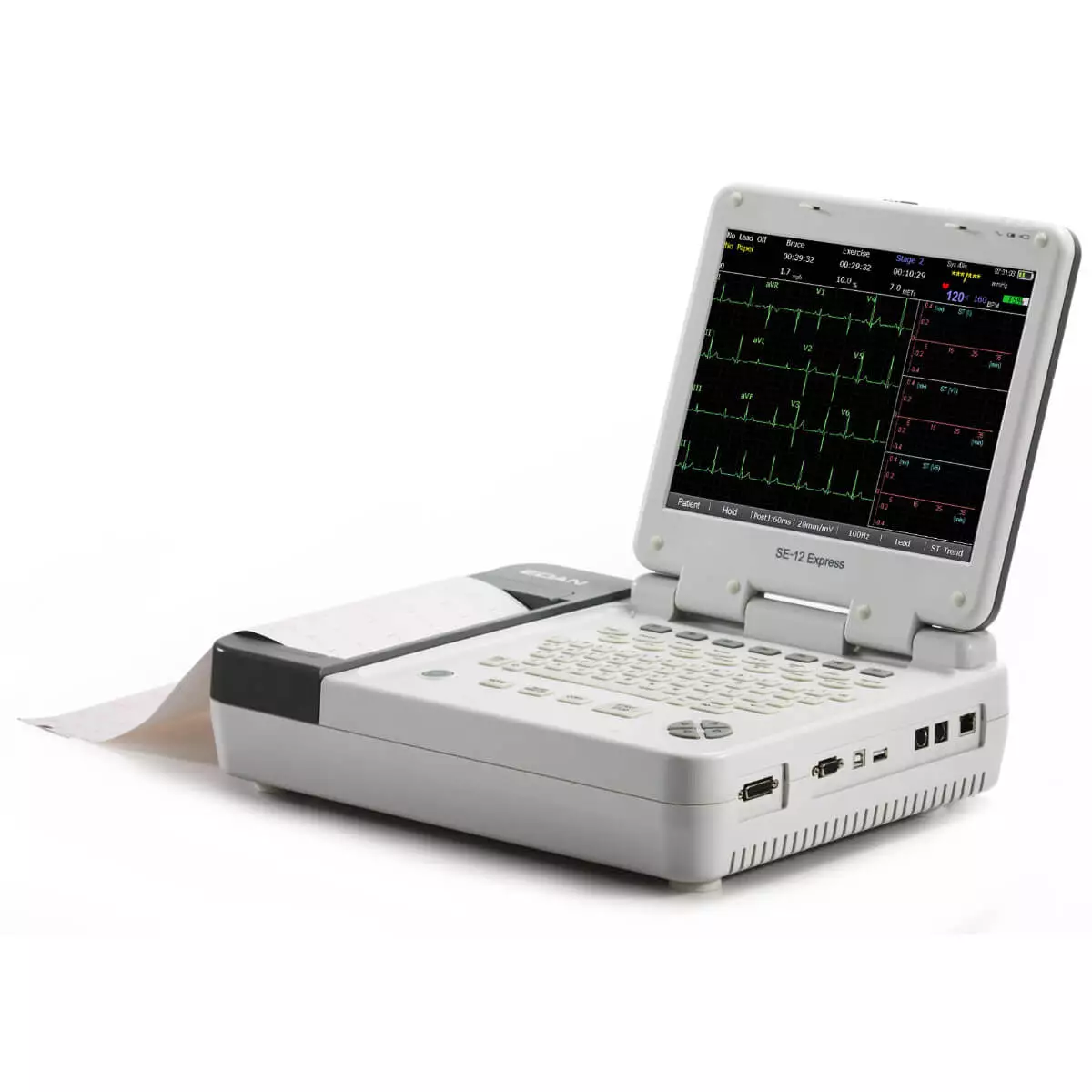

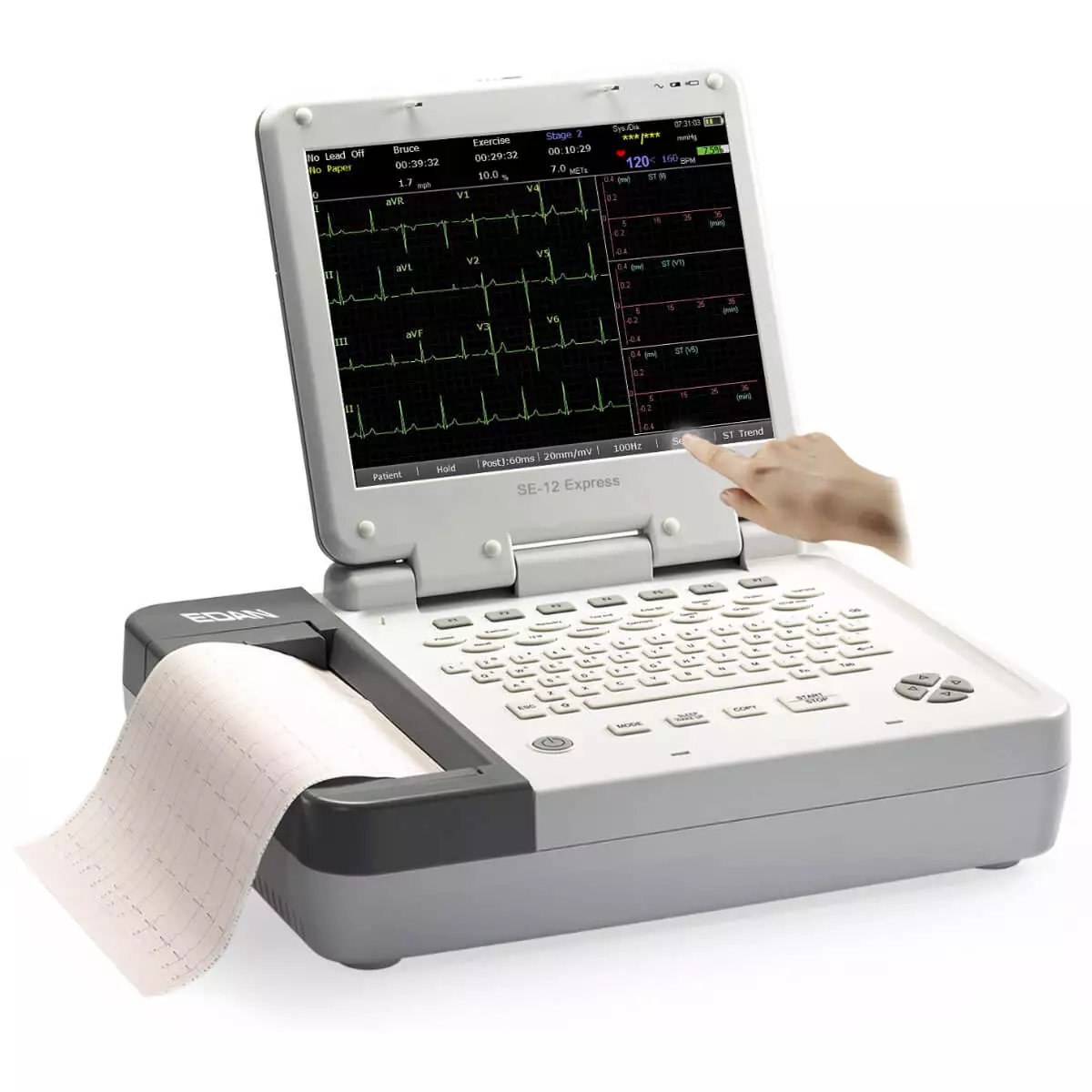

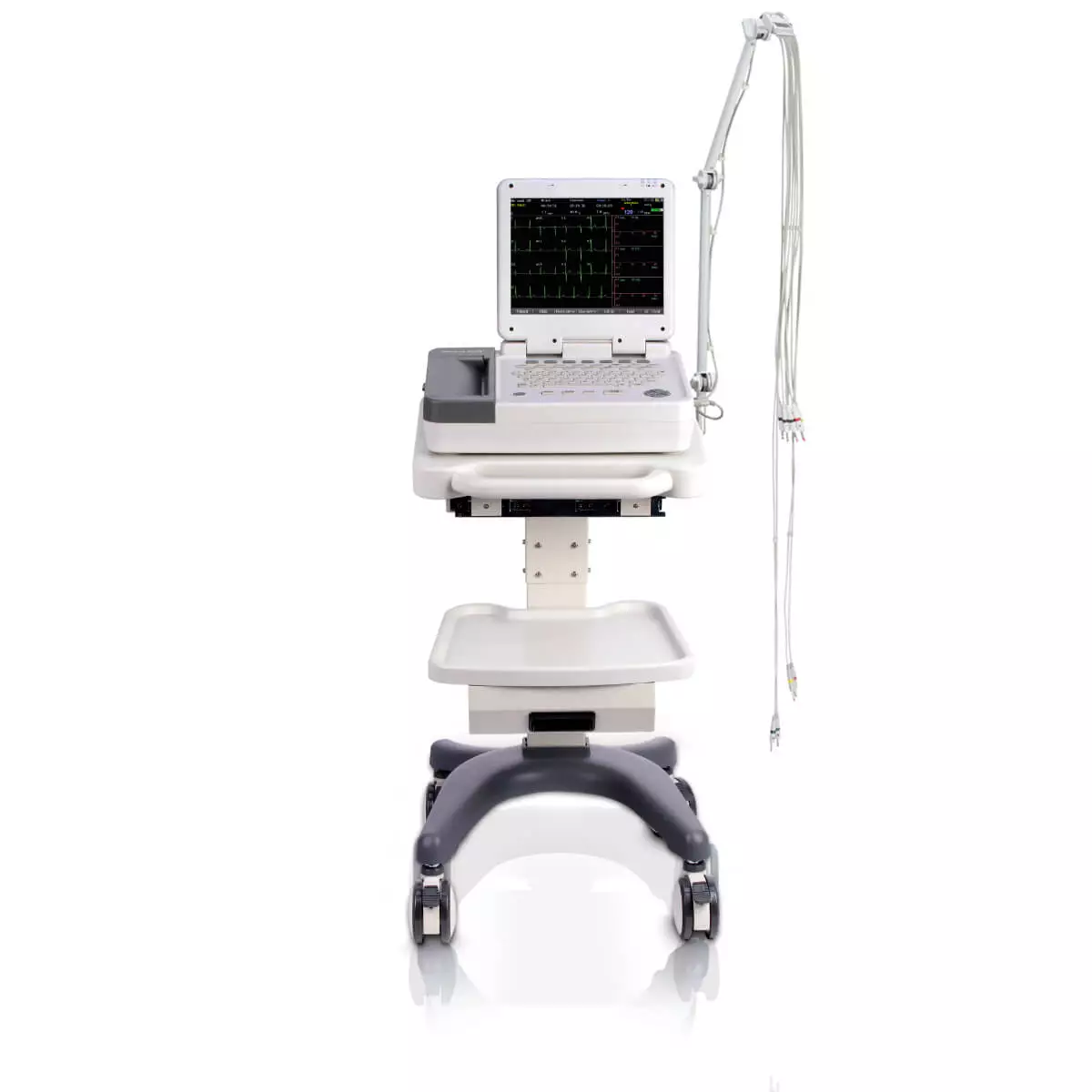

Se-12 Express Ecg by Edan
The Edan Se-12 Express Ecg meets all requirements in doctor’s offices and clinics, and can be used as a resting Ecg or a stress Ecg. It can be used for both completely mobile or, with its classic features and connection interfaces, for stationary examinations. Its foldable 12.1" multicolor Lcd touchscreen offers enough space for displaying all waveforms of a 12-channel examination. Before printing, all determined values can be examined in a well-organized report preview.
Product details
12-channel Ecg system with integrated thermal printer
Foldable 12.1" multicolor Lcd touchscreen
Modern one-button operation
Display of all 12 waveforms
Also suitable for pediatric use
Pacemaker signal detection
Heart rate variability assessment
Lead map as support for placing leads
Auto-detection of poor connections or missing electrodes
Report preview before export and printing
Connection to external printers possible (sold separately)
Alphanumeric keyboard with shortcut keys
Measurements: L 330 x W 420 x H 120 mm
Weight: approx. 6.5 kg
Available as standard version or with ergometry kit
The kits: standard and extended ergometry
The Edan Se-12 Express is available in a standard kit for resting Ecg measurements or in an extended ergometry kit for stress Ecg measurements. The ergometry kit makes it possible to connect the Ecg to an external ergometry device via the supplied connection cables, be it a bicycle, a treadmill, or a blood pressure monitor. Moreover, Se-12 Express unites everything in one place: integrated thermal printer, Wi-Fi connection, and battery operation which allows for completely mobile use. Alternatively, interfaces for an external printer, a Lan connection, and a power cord also enable a classic stationary use.
Technical details
Internal storage: approx. 800 Ecg measurements
Measuring range pulse: 30–300 bpm
Measuring accuracy pulse: ± 1 bpm
Bandwidth: 0.01–300 Hz
Sampling rate: 16,000 Hz with pacemaker detection
Data transmission: Wi-Fi, Lan and Rs-232
Power supply: mains or battery power
Grid operation: 100–240 V, 50–60 Hz
Battery type: lithium-ions
Battery capacity: 5,000 mAh (approx. 350 Ecg measurements)
Qwerty keyboard layout
Package contents
Edan Se-12 Express as resting Ecg in the standard kit
1 Edan Se-12 Express Ecg
1 patient cable
6 suction electrodes
4 clip electrodes
100 sheets of recording paper
1 power cord
1 lithium-ion battery
Instruction manual
Edan Se-12 Express as stress Ecg in the ergometry kit
1 Edan Se-12 Express Ecg
1 patient cable
6 suction electrodes
4 clip electrodes
25 single-use adhesive electrodes
100 sheets of recording paper
1 Rs-232 connecting cable for blood pressure monitor
1 Rs-232 connecting cable for treadmill
1 Rs-232 connecting cable for ergometer
1 snap-style Ecg cable (Iec/Aha)
1 Ecg belt (1.4 m)
1 power cord
1 lithium-ion battery
instruction manual
An obligatory instruction is needed for this product in Germany, according to MPBetriebV. The instruction is not included in the price.
A fee-based instruction by the manufacturer is possible after agreement. Please
contact us
for more information.

Product Information

EAN : 6944413800366
Product number : 124259
Manufacturer name : EDAN
Manufacturer item no. : 83.61.460017
