CATA TF 2003 GWH Semi-recessed (extendable) White 340 m³/h

CATA

Ask For Price

Includes any applicable VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Description

Number of motors: 1
Extraction type: With external exhaust duct / Recirculating air
Number of filters: 2
Dishwasher-safe filter: Yes
Product color: White glass
Lighting efficiency class: A
Type: Telescopic
Width: 60 cm
Number of speeds: 2
Grease filter type: Metal
Exhaust connection diameter: 12 cm
Grease filter efficiency class: D
Motor included: Yes
Height: 14 cm
Minimum distance to gas hob: 65 cm
Depth: 28 cm
Annual energy consumption: 44 kWh
Minimum distance to electric hob: 55 cm
Maximum noise level: 57 dB
Number of lamps: 2
Rated motor power: 100 W
Noise level (low speed) : 45.5 dB
Washable filter: Yes
Lamp type: Led
Pressure (Pa): 194 Pa
Fluid dynamic efficiency class: E
Control panel: Rocker switch
Power: 100 W
Control type: Mechanical control
Light source: 2 EcoLed
Other features: Super quiet, easy-to-install system, easy-to-clean inner shield
Manufacturer's product name: Tf 2003 600 Gwh
Exhaust position: Top
Automatic shut-off: No
Filter cleaning indicator: No
Country of origin: China
Manufacturer's product family: Hood
Maximum extraction rate according to En 61591: 390 m³/h
Recirculation: Yes
Fluid dynamic efficiency (Fde), %: 11.9 %
Lighting efficiency (Le): 36 Lux/Watt
Grease filter efficiency (Gfe), %: 68%
Airflow (minimum speed): 150 m³/h
Height (max): 18 cm
Height (min): 18 cm
Motor type: Tf 2003
Intensive speed: No
Lamp power: 7 W
Ac input voltage: 220-240 V
Ac input frequency: 50 Hz
Remote control: No
Touch control: No
Activated carbon filter for recirculation included: No
Flat screen hood with white panel, Led lighting
Suitable for ducted and recirculating operation
60 cm wide
Features
2 power levels
Eco Led lighting 2 x 3.5 watts
Metal grease filter (dishwasher safe)
Tf tangential motor 100 Watt Motor
Fan performance (according to En 61591): min. - max. fan performance: 150 m³/h - 390 m³/h
Free Air Flow: 650 m³/h
Noise levels (according to En 60704): min. 45.5 dB - max. 57 dB
Maximum pressure: 194 Pa

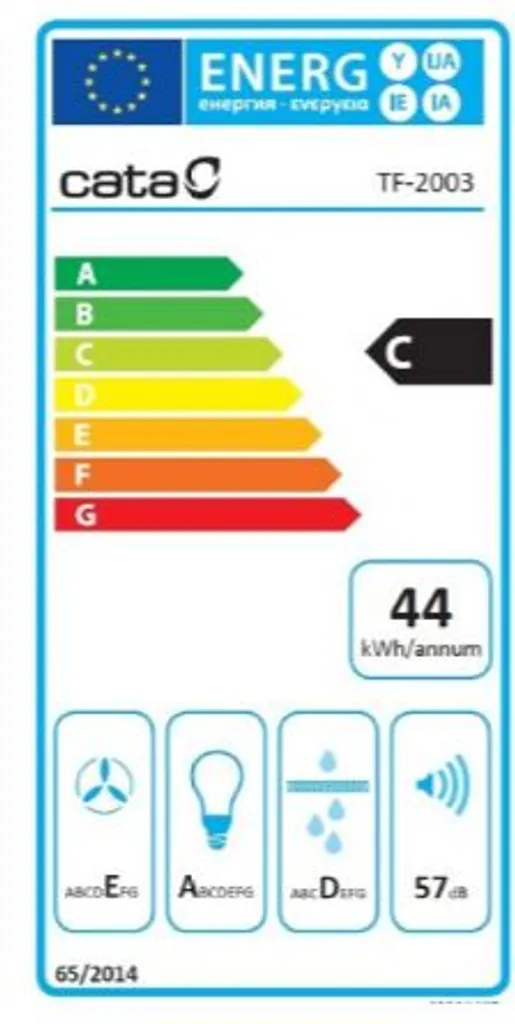

Energy efficiency (65/2014)
/ 78.2
Annual consumption: 44.5 kWh/year
Fluid dynamic efficiency E / 11.9
Lighting efficiency A / 36
Grease filter efficiency D / 68
Noise level 57 dB
Power consumption in off mode 0 W
Power consumption in standby mode 0 W

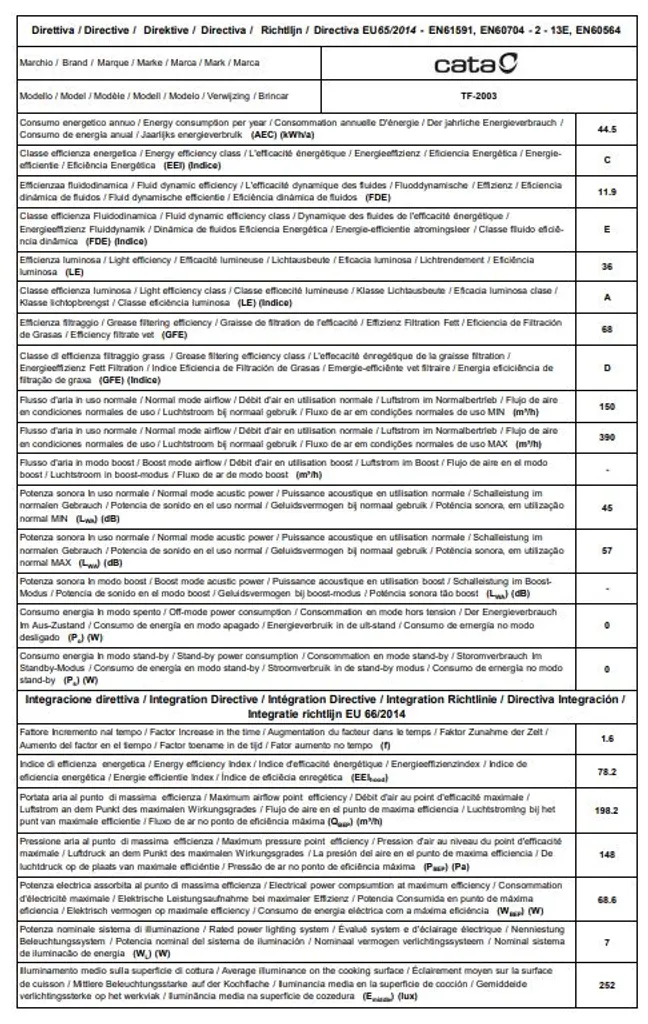

Additional technical data
Time extension factor: 1.6
Airflow at Maximum efficiency at point: 198.2 m³/h
Air pressure at maximum efficiency point: 148 Pa
Electrical input power at maximum efficiency: 68.6 W
Nominal power of lighting system: 7 W
Average illuminance on the cooking surface: 252 lux
Accessories (Optional)
Activated carbon filter, item no. 02825263
Connection data
Connected load: 107 W
Voltage: 220 - 240 V/ 50 Hz
Exhaust duct: Ø 120 mm
Cable, without plug
Maximum extraction rate:
340 m³/h
Extraction type:
Guided
Fluid dynamic efficiency class:
Lighting efficiency class:
Oil filter efficiency class:
Number of speeds:
Noise level:
57 dB
Noise level (low speed):
45.5 dB
Pressure (Pa):
194
Minimum distance from electric hob:
55 cm
Minimum distance from gas hob:
65 cm
Type:
Semi-built-in (pullout)
Product color:
White
Exhaust connection diameter:
12 cm
Number of motors:
Motor included:
Grease filter type:
Metal
Number of filters:
2 pieces
Dishwasher filter:
Washable filter:
Number of lamps:
4 bulbs
Bulb type:
Halogen
Lighting efficiency (Le):
36 lux per watt
Annual energy consumption:
44.5 kWh
Motor power:
100 W
Power consumption (standby):
0.1 W
lt):
Width:
600 mm
Depth:
440 mm
Height:
180 mm
Grease filter efficiency (Gfe):
68%
Fluid dynamic efficiency (Fde):
11.9
Width in cm:
Maximum airflow in m³/h:
340
Filter system:
Metal filter
Extraction system:
Exhaust/Recirculating
Height in cm:
Number of motors:
Number of fan speeds:
Noise emission dB(A) re1 pW:
Annual energy consumption in kWh:
Depth in cm:
Product type:
Flat screen hood
Lamp type:
Led
Fluid dynamic efficiency (Eu):
Lighting efficiency class (Eu):
Grease filtering efficiency class (Eu):
Dimensions in cm (W x H x D):
The Tf 2003 is a built-in hood with 2 speeds. Available in 3 different finishes: white glass, black glass, and stainless steel (marking proof). The opening provides a system with a larger extraction area. Cata Tf 2003 Gwh. Maximum extraction capacity: 340 m³/h, extraction type: ducted, fluid dynamic efficiency class: E. Type: semi-recessed (pull-out), product color: white, exhaust port diameter: 12 cm. Grease filter type: metal, number of filters: 2. Number of bulbs: 4, bulb type: halogen. Annual energy consumption: 112 kWh, motor power: 100 W, (old): E

Product Information

EAN : 8422248062008
Color : White
Depth : 44 cm
Width : 60 cm
Height : 18 cm
Airflow : 340 m³/h
Noise Level : 57 dB
Manufacturer : CATA
Manufacturer Number : 61867197
