Bosch Series 4 DWB67IM50 wall-mounted cooker hoods - stainless steel

Bosch

SAR 2,121.00
+ SAR 4,094.00 Air Shipping

Includes any applicable VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Description

Product Description
Bosch DWB67IM50, Wall-Mounted Extractor Hood
Highlights
- Box-style extractor hood: Performance and matching kitchen design in one hood.
- Quiet operation: Best extraction performance with low noise.
- DirectSelect control: Quickly adjust the extractor hood with a touch.
- Led lighting: The energy-saving lighting provides good and bright illumination of the cooktop.
- High fan performance: Excellent extraction performance of the extractor hood
Operating mode and performance
Noise levels according to En 60704-2-13 in ducted mode:
Max. normal setting: 64 dB(A) re 1 pW
Intensive setting: 73 dB(A) re 1 pW
Fan performance according to En 61591 in ducted mode:
Max. normal setting: 458 m³/h
Intensive setting: 752 m³/h
When using the separately available Clean Air recirculation kit (optional accessory), your appliance achieves the following values in recirculation mode:
Fan performance: Max. normal setting: 404 m³/h
Intensive setting: 499 m³/h
Noise levels: Max. normal setting: 72 dB(A) re 1 pW
Intensive setting: 76 dB(A) re 1 pW
(on a scale from A+++ to D)
Average energy consumption: 60.3 kWh/year*
Fan efficiency class: B*
Grease filter efficiency class: B*
Lighting efficiency class: A*
Noise min./max. Normal setting: 52/64 dB
Uniform, bright illumination with 2 x 1.5 W Led modules
Illuminance: 242 lux
Color temperature: 3500 K
Comfort
DirectSelect operation with short-stroke buttons and Led display
Electronic control
3 power levels and
1 intensive level
Intensive levels with automatic reset
Convertible to ducted or recirculating operation
Environment and safety

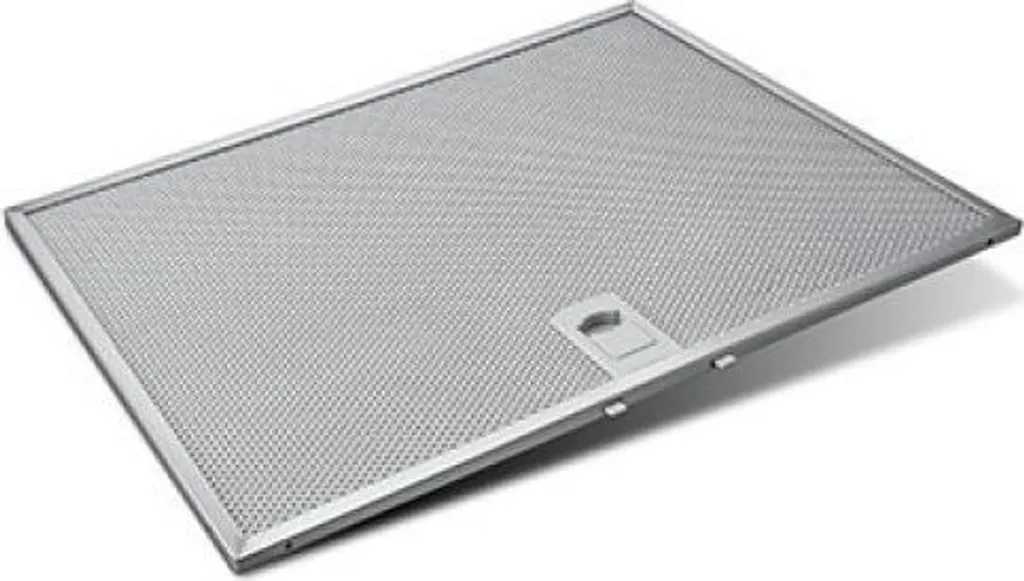

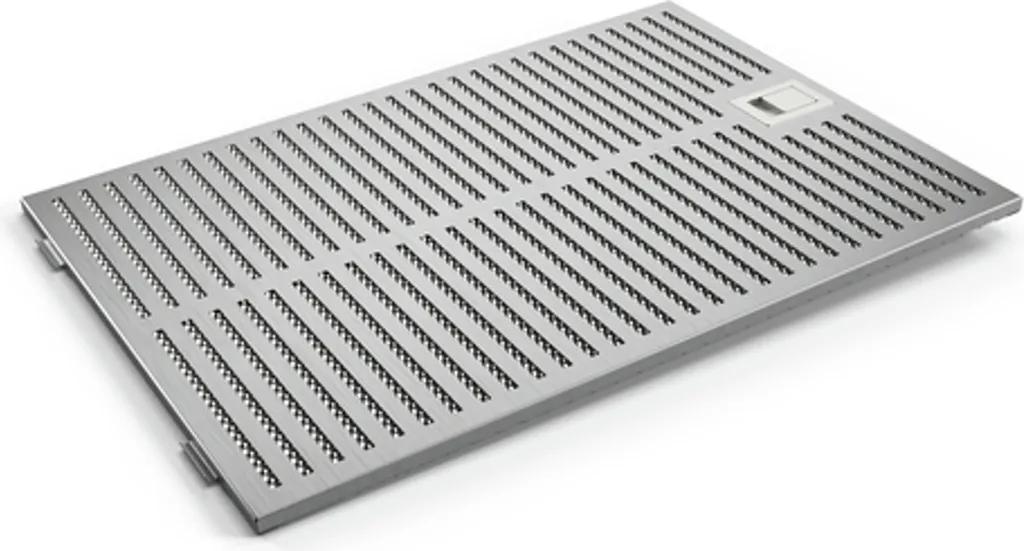

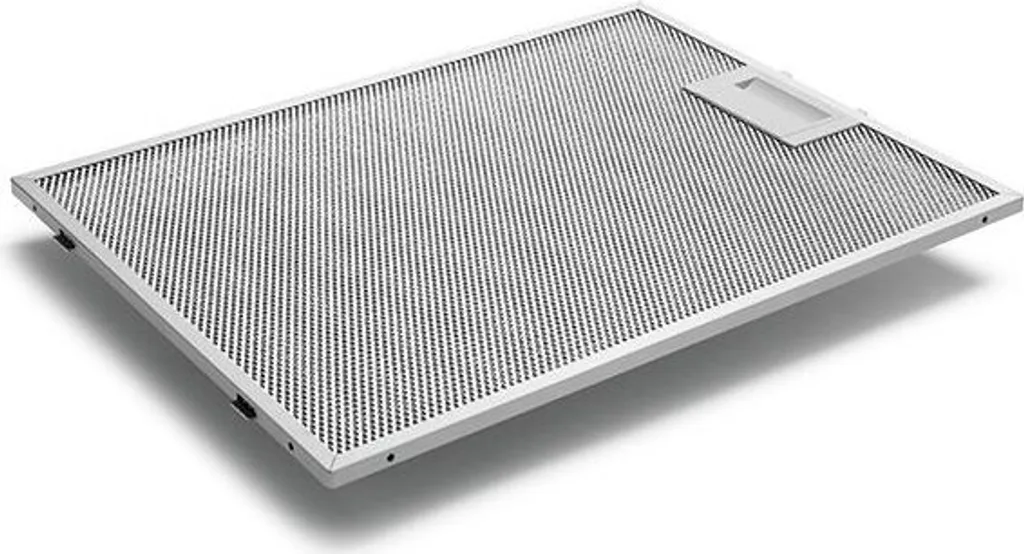

Metal grease filter, dishwasher-safe
Technical information
For wall mounting above cooktops
For recirculating operation, a standard recirculation kit or a Clean Air Plus recirculation kit (optional accessory) is required
Dimensions
Appliance dimensions ducted (H x W x D): 635-965 x 600 x 500 mm
Exhaust duct Ø 150 mm (Ø 120 mm included)
Appliance dimensions recirculation (H x W x D): 635-1075 x 600 x 500 mm
Appliance dimensions recirculation with CleanAir Plus recirculation kit (H x W x D):
703 x 600 x 500 mm - external duct mounting
833-1163 x 600 x 500 mm - internal duct mounting
Total connected load: 255 W
Connection cable length: 1.3 m with plug
Technical Data
Product details
- Product group: Cooker hood
- Brand: Bosch
- Product series: Series 4
- International order designation: DWB67IM50
- Item number: DWB67IM50
- Ean number: 4242005051076
- Appliance color: Stainless steel
- Housing color: Stainless steel
- Material Chimney: Stainless steel
- Design: Wall-mounted
- Control: Electronic
- Design: Built-in
- Installation type: Wall-mounted
- Controls: Led; Touch control
- Fan location: Motor inside the chimney
- Airflow type: Convertible
- Power consumption: 255 W
- Fuse rating: 10 A
- Voltage: 220-240 V
- Minimum voltage: 220 V
- Maximum voltage: 240 V
- Frequency: 50 Hz; 60
- Minimum frequency: 50
- Maximum frequency: 60
- Connection cable length: 130.0 cm
- Plug type: Schuko/Gardy with grounding
- Appliance height: 53 mm
- Appliance width: 600 mm
- Appliance depth: 500 mm
- Packaged height: 490 mm
- Packaged width: 650 mm
- Packaged depth: 730 mm
- Eprel Registration Number 2010: 167872
- Net weight: 12.4 kg
- Gross weight: 16.9 kg
- Air outlet: Yes
- Maximum chimney exhaust height: 912 mm
- Minimum chimney exhaust height: 583 mm
- Maximum chimney recirculation height: 1022 mm
- Chimney height Convection air min.: 853 mm
- 2010/30/Eu): B
- Average Annual energy consumption: 60.3 kWh/year (in kWh/year based on standard test results over 24 hours. Actual energy consumption depends on the use and location of the appliance)
- Fluid dynamics efficiency (2010/30/Eu): 27.3
- Fluid dynamics efficiency class (2010/30/Ec): B
- Lighting efficiency (2010/30/Ec): 69.1 lux/Watt
- Lighting efficiency class (2010/30/Ec): A
- Grease filter efficiency (2010/30/Eu): 92.1%
- Grease filter efficiency class (2010/30/Eu): B
- Max. airflow: 459 m³/h
- Minimum airflow: 270 m³/h
- Increased airflow (2010/30/Eu): 752.0 m³/h
- Noise level at max. speed (2010/30/Ec): 64 dB
- Noise level at min. speed (2010/30/Ec): 52 dB
- Sound power level dB: 64 dB(A) re 1 pW
- Noise level with rapid boil position (booster): 73 dB(A) re 1 pW
- Energy-smart appliance, can optimize consumption (2017/1369/Eu): No
- Wireless communication possible: No
- Sim card slot available: No
- Type of interface for control: No
- Remote upgrade option: No
- Remote update option for maintenance: No
- Voice control option: No
- Manual controls: TouchControl
- Remote control: No
- Number of fans: 1
- Total fan power: 250 W
- Max. fan power - exhaust mode: 459 m³/h
- Fan power at intensive setting - exhaust mode: 752 m³/h
- Max. fan power - recirculation mode: 404 m³/h
- Fan power at intensive setting - recirculation mode: 499 m³/h
- Lighting efficiency (2010/30/Ec): On/Off
- Number of lamps: 2
- Total illuminance: 242 lux
- Grease filter material: Washable stainless steel
- Exhaust duct diameter: 120 / 150 mm
- Backflow damper: Yes
- Odor filter: No
- Number of speed settings: 3 fan speeds and 1 intensive speed
- Type of lights used: Led
Documents

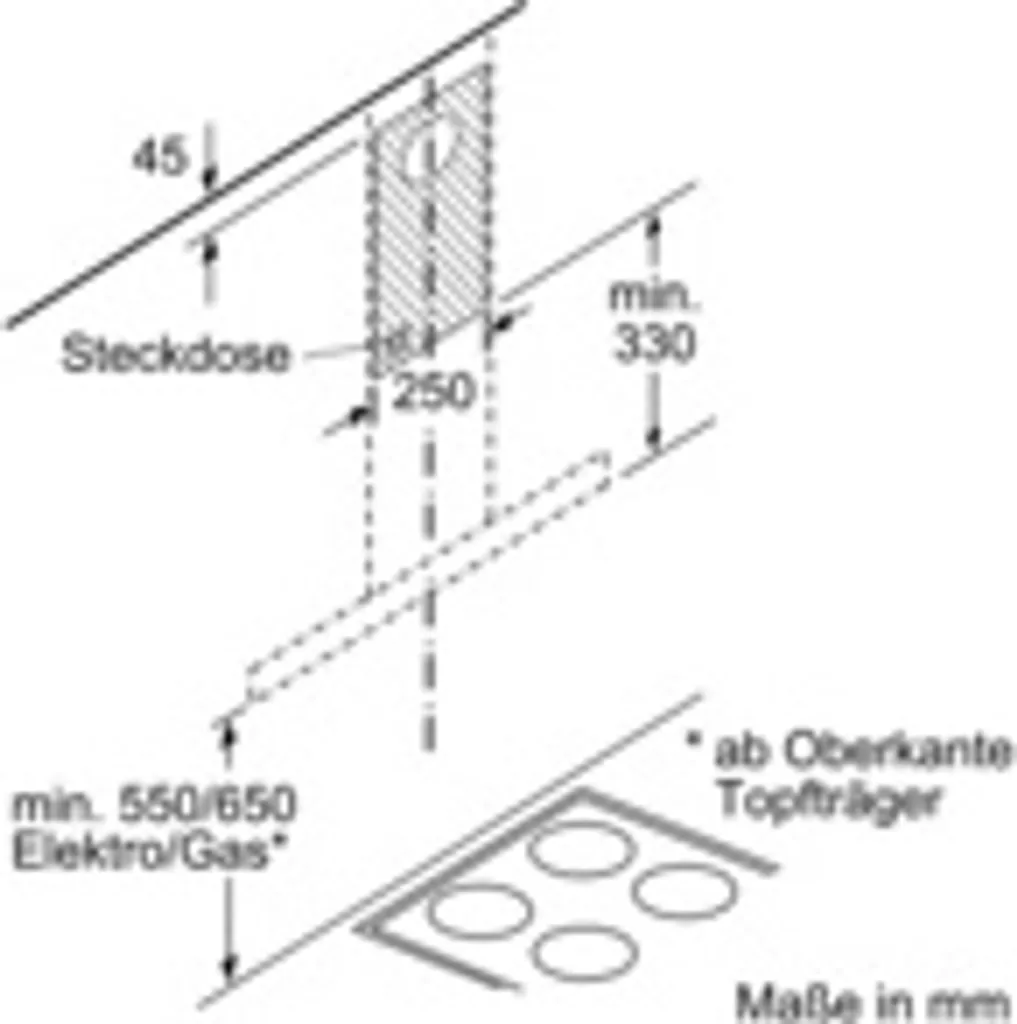

Dimensional drawings
Eu Energy Label
Features
Comfort
DirectSelect operation with Led display
Electronic control
3 power levels and 1 intensive level
Intensive levels with automatic reset
Convertible to ducted or recirculating operation
Environment and safety
Dishwasher-safe metal grease filter
Technical information
For wall mounting above cooktops
For recirculating operation, a standard recirculation kit or a Clean Air Plus recirculation kit (optional accessory) is required
Dimensions
Appliance dimensions ducted operation (H x W x D): 635-965 x 600 x 500 mm
Exhaust duct Ø 150 mm (Ø 120 mm included)
Appliance dimensions recirculating operation (H x W x D): 635-1075 x 600 x 500 mm
Appliance dimensions recirculation with CleanAir Plus recirculation kit (H x W x D):
703 x 600 x 500 mm - external duct mounting
833-1163 x 600 x 500 mm - internal duct mounting
Total connected load: 255 W
Connection cable length: 1.3 m with plug
Operating mode and performance
Noise levels according to En 60704-2-13 in exhaust air mode:
Max. normal setting: 64 dB(A) re 1 pW
Intensive setting: 73 dB(A) re 1 pW
Fan performance in exhaust air mode according to En 61591:
Max. normal setting 458 m³/h, intensive setting 752 m³/h
When using the separately available CleanAir Plus recirculation kit (optional accessory), your appliance achieves the following values in recirculation mode:
Recirculation setting:
Max. normal operation: 404 m³/h
Intensive setting: 499 m³/h
Noise levels recirculation:
Max. normal setting: 72 dB(A) re 1 pW
Intensive setting: 76 dB(A) re 1 pW
)* On a scale from A+++ (very efficient) to D (less efficient)
Average energy consumption: 60.3 kWh/year*
Fan efficiency class: B*
Grease filter efficiency class: B*
Lighting efficiency class: A*
Noise min./max. Normal setting: 52/64 dB
Uniform, bright illumination with 2 x 1.5W Led modules
Illuminance: 242 lux
Color temperature: 3500 K
Product group
Cooker hoods
Brand
Bosch
International order designation
DWB67IM50
Ean number
4242005051076
Color
Stainless steel
Housing material
Stainless steel
Design
Wall-mounted
Control
Electronic
Control elements
Led
TouchControl
Front panel options
Not applicable
Fan location
Motor in chimney
Airflow type
Extraction, recirculation (optional accessories sold separately)
Connected load
255 W
Fuse rating
10 A
Voltage
220-240 V
Frequency
50; 60 Hz
Connection cable length
130 cm
Plug type
Schuko/Gardy with grounding
Chimney height
583-912/583-1022 mm
Height of unit without chimney
53 mm
Unit height (mm)
635-965/635-1075 mm
Unit width
600 mm
Unit depth
500 mm
Height of packaged unit (mm)
490 mm
Width of packaged unit (mm)
650 mm
Depth of packaged unit (mm)
720 mm
Net weight (kg)
11.471 kg
Gross weight (kg)
16.6 kg
Manual controls
TouchControl
Remote control
No
Number of fans (pcs)
Total fan power
250 W
Intensive setting
Max. fan power exhaust air
459 m³/h
Fan power in intensive exhaust air mode
752 m³/h
Max. fan power recirculation air
404 m³/h
Fan power in intensive recirculation air mode
499 m³/h
Lighting control
On/Off
Number of lamps (pcs)
Type of lamps
Led
Total illuminance (lx)
242 lux
Sound power level
64 dB(A) re 1 pW
Sound power level: Intensive setting depending on the duct diameter
73 dB(A) re 1 pW
Diameter of the Exhaust duct
120 / 150 mm
Backflow damper
Grease filter material
Washable stainless steel
Grease filter type
Cassette
Odor filter
No
Increased airflow
752.3 m³/h
Max. airflow
458.6 m³/h
Minimum airflow
269.5 m³/h
Design
Built-in

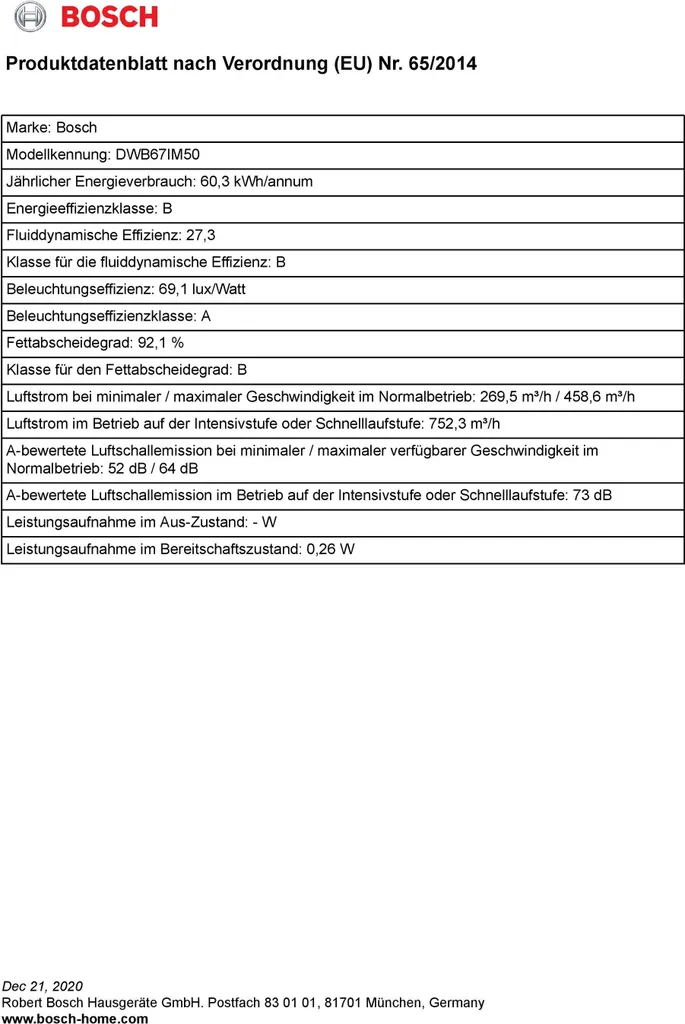

Avg. Annual Energy Consumption
60.3 kWh/annum
Energy Efficiency Class
)* On a scale from A+++ (very efficient) to D (less efficient)
Lighting Efficiency Class
index
57.7 %
Fluid Dynamics Efficiency Class
Fluid Dynamics Efficiency
27.3
Grease Filter Efficiency Class
Grease Filter Efficiency
92.1 %
Lighting Efficiency Class
Lighting Efficiency
69.1 lux/Watt
Energy Consumption in Standby Mode
0.26 W
Energy Consumption in Off Mode
Amplified Volume
73 dB
Volume at Max. Speed
64 dB
Volume at Min. Speed
52 dB
Time Extension Factor f (2009/125/Ec)
1.0
index
57.7 %
Measured air volume flow at best point Q_BEP (2009/125/Ec)
381.9 m³/h
Measured air pressure at best point P_BEP (2009/125/Ec)
409
Measured electrical input power at best point W_BEP (2009/125/Ec)
159.2 W
Nominal power of the lighting system W_L (2009/125/Ec)
3.5 W
Average illuminance of the lighting system on the cooking surface E_middle (2009/125/Ec)
242 lux
Special accessories
DHZ1225, DHZ1235, DHZ6550, DHZ6551, DWZ0DX0A0, DWZ0DX0U0, DWZ0XX0J0, DWZ1DX1B4, DWZ1FX5D1, DWZ1DX1I4, DWZ1DX1I6, DWZ1FX5C6, DZZ1XX1B6, DZZ0XX0P0
Design
Wandesse
Product series
Series | 4
Connected home appliances with Home Connect
No
General
Appliance width 60 cm
Color Stainless steel
Appliance type Wall-mounted
Airflow type Exhaust air, recirculation (special accessories sold separately)
Total fan power 250 W
Controls Led, TouchControl
Max. fan power exhaust air 459 m³/h
Fan power in intensive exhaust air mode 752 m³/h
Noise level at max. speed 64 dB
Amplified noise level 73 dB
Max. fan power recirculation air 404 m³/h
Fan power in intensive recirculation air mode 499 m³/h
Grease filter material Stainless steel, washable
br> Estimated annual energy consumption 60.3 kWh/annum
Dimensions
Appliance height 635-965/635-1075 mm
Appliance width 600 mm
Appliance depth 500 mm
Chimney height 583-912/583-1022 mm
Minimum distance to electric cooktop 550 mm
Minimum distance to gas cooktop 650 mm
Exhaust duct diameter 120 / 150 mm
Backflow preventer Yes
Connection cable length 130 cm
Net weight 11.5 kg
Maximum exhaust height 965 mm
Minimum exhaust height 635 mm
Maximum recirculation height 1075 mm
Minimum recirculation height 635 mm
Comfort
PerfectAir air quality sensor No
Hood control via cooktop No
Extremely quiet - EcoSilence Drive
EcoSilence Drive™ No
Extremely quiet No
Intensive setting Yes
Remote control No
Lighting
Lamp type Led
Number of lamps (pcs) 2
Total luminous intensity 242 lux
Lighting type Softlight No
Average illuminance of the lighting system on the cooking surface E_middle (2009/125/Ec) 242 lux
Adjustable color temperature of the work light via Home Connect No
Emotion light pro No
Maximum extraction rate:
720 m³/h
Extraction type:
Exhaust/Recirculation
Fluid dynamic efficiency class:
Lighting efficiency class:
Oil filter efficiency class:
Number of speeds:
Noise level:
64 dB
Maximum recirculation rate:
260 m³/h
Intensive speed:
Noise level (slow Speed):
52 dB
Noise level (high speed):
64 dB
Airborne noise emission (high speed):
73 dB
Minimum distance from electric hob:
55 cm
Minimum distance from gas hob:
65 cm
Type:
Wall-mounted
Product color:
Stainless steel
Built-in display:
Control:
Touch
Cable length:
1.3 m
Display type:
Led
Exhaust location:
Top
Exhaust connection diameter:
12 cm
Non-return valve:
Number of motors:
Grease filter type:
Stainless steel
Dishwasher filter:
Removable filter:
Washable filter:
Lamp power:
3 W
Number of lamps:
2 bulb(s)
Light source type:
Led
Light intensity:
250 lux
Luminous efficiency (Le):
69.1 lux per watt
dt>
Annual energy consumption:
60.3 kWh
Energy efficiency scale:
A++ to E
Connected load:
255 W
Motor power:
250 W
Power consumption (standby):
0.26 W
Ac input voltage:
220 - 240 V
Ac input frequency:
50 - 60 Hz
Current:
10 A
Automatic switch-off:
Width:
600 mm
Depth:
500 mm
Height (min):
63.5 cm
Height (max):
107.5 cm cm
Weight:
11 kg
Grease filter efficiency (Gfe):
92.1%
Fluid dynamic efficiency (Fde):
27.3

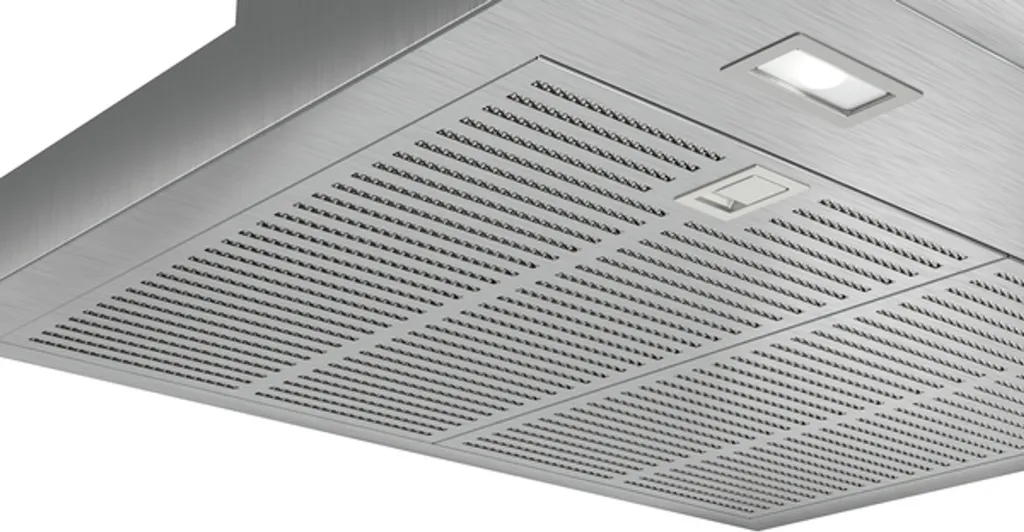

Bosch DWB67IM50 Wall-mounted extractor hood 60cm stainless steel
Extraction rate: quickly ensures an optimal kitchen climate with up to 720 m³/h.
Quiet: best extraction performance with low noise.
TouchSelect operation: allows you to quickly set the desired power level and the light.
Width in cm:
Maximum extraction rate in m³/h:
720
Mounting:
Wall/cabinet mounting
Filter system:
Metal filter
Extraction system:
Ducted/recirculating
Number of motors:
Number of fan speeds:
Noise emission dB(A) re1 pW:
Annual energy consumption in kWh:
Product type:
Island hood
Chimney design:
Box
Fluid dynamic efficiency (Eu):
Lighting efficiency class (Eu):
Grease filtering efficiency class (Eu):
Operating mode and performance (on a scale from A++ to E) Average energy consumption: 58.1 kWh/year* Fan efficiency class: A* Lighting efficiency class: A* Grease filter efficiency class: B* Max. extraction rate: 720 m³/h Fan performance in exhaust air mode according to En 61591: max. normal setting 450 m³/h, intensive setting 720 m³/h Recirculation rate: max. normal operation 310 m³/h intensive setting 370 m³/h Noise level min./max. Normal setting: 52/64 dB noise levels according to En 60704-3 and En 60704-2-13 in exhaust air mode: Max. normal setting: 64 dB(A) re 1 pW (52 dB(A) re 20 µPa sound pressure) Intensive setting: 73 dB(A) re 1 pW (61 dB(A) re 20 µPa sound pressure) Noise levels in recirculation mode: Max. normal setting: 73 dB(A) re 1 pW (61 dB(A) re 20 µPa sound pressure) Intensive setting: 76 dB(A) re 1 pW (64 dB(A) re 20 µPa sound pressure) Convertible to exhaust air or recirculation mode. For recirculation mode, a starter kit or CleanAir module (optional accessory) is required. Comfort: Illuminance: 250 lux Color temperature: 3500 K Uniform, bright lighting with 2 x 1.5W Led module Electronic control DirectSelect operation with Led display 3 power levels and 1 intensive level Intensive levels with automatic reset Environment and safety Metal grease filter, dishwasher-safe Technical information For wall mounting above cooktops Dimensions Exhaust duct Ø 150 mm (Ø 120 mm included) Total connected load: 255 W Length of connection cable: 1.3 m with plug Appliance dimensions recirculation (HxWxD): 635-1075 x 600 x 500 mm Appliance dimensions ducted (HxWxD): 635-965 x 600 x 500 mm Appliance dimensions recirculation with CleanAir recirculation module (HxWxD): 703 x 600 x 500 mm - mounting on external duct 833-1163 x 600 x 500 mm - mounting on internal duct
If you are thinking about upgrading your To renovate your kitchen, buy a conventional chimney Bosch DWB67IM50 60 cm 720 m³/h 52 dB 250W B and other Bosch products! Energy class: B; Speeds: 3; Dimensions approx.: 60 x 50 x 63.5 cm; Sound intensity: 52 dB; Power: 250 W; Control: Tactile; Capacity: 720 m³/h; Lighting: 2 x Led; Filter: Stainless steel

Product Information

Dimension : 12000 g
EAN : 4242005051076
Farbe : Silber
Höhe : 5.3 cm
Maße : 635-965 x 600 x 500 mm (H x B x T)
Tiefe : 50 cm
Breite : 60 cm
Modell : DWB67IM50
Gewicht : 12000 g
EPREL ID : 167872
Hersteller : Bosch
Montageort : Wand
Lautstärke : 64 dB
Lieferumfang : 1x Dunstabzugshaube, 1x Abluftstutzen Ø 120 mm, 1x Anschlusskabel mit Stecker
Luftdurchsatz : 720 m³/h
Herstellernummer : DWB67IM50
Anzahl Leuchtmittel : 2
Durchmesser Abluftleitung : 150 mm

Images

Reviews

Be the first to review. Login

Does not include VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Qty:

Share on:

Bosch Series 4 DWB67IM50 wall-mounted cooker hoods...

Cash on Delivery (COD)

Cash on Delivery is a payment method for customer orders of Honest Forwarder throughout the UAE and KSA.

For the Cash on delivery orders, you pay at the time the order is delivered by the delivery driver and the driver only accepts cash.

How cash on delivery (COD) works?

Choose Cash On Delivery as your payment method at the checkout page when you place your order.
Send us the order ID over WhatsApp. The order ID is shown in the Cash On Delivery confirmation page or email. Until this order ID verification is over, we can’t process your order.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
The delivery driver will collect the due amount for the order. The driver only accepts cash. Kindly make sure the exact amount is ready in cash for collection.

Product Return and cancellation

In the event of cancellation of your order, please write to us immediately at support@honestforwarder.com. It must be done as soon as possible, before the order is dispatched to the airport for departure.

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

We can’t accept the product return for a mere change of minds for the exchange or replacement after delivery. The return request is accepted only when it is due to product defect, damage reported on delivery or wrong item.

Credit Card & Debit Card

Honest Forwarder partners with Telr, a payment gateway company with the track record and presence in UAE, to offer a safe and secure credit/debit card processing.

Your transaction will be settled in SAR. Therefore, your bank will not charge any fee for the foreign currency conversion.

How Credit Card/Debit Card works?

Choose Credit Card/Debit Card as your payment method at the checkout page when you place your order.
Press Proceed to Pay at the checkout page and enter your credit card information in the next page of Telr, our Credit card payment gateway partner. Honest Forwarder never stores your credit card information.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
Any issue on processing your order, kindly report to us immediately at support@honestforwarder.com or through Contact Us page.

Product Return and Cancellation

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

Category links

Social Media links

Bosch Series 4 DWB67IM50 wall-mounted cooker hoods - stainless steel

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

Bosch Series 4 DWB67IM50 wall-mounted cooker hoods...

Category links

Social Media links

Bosch Series 4 DWB67IM50 wall-mounted cooker hoods - stainless steel

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

Bosch Series 4 DWB67IM50 wall-mounted cooker hoods...

Cash On Delivery Information

Cash on Delivery (COD)

Credit Card & Debit Card Payment Information

Credit Card & Debit Card

Max weight for health supplements.

VAT and Customs Duty For Oman

VAT and Customs Duty For Qatar

VAT and Customs Duty For Bahrain

Ask for price
