Bosch Series 2 DWP66BC50 wall-mounted cooker hoods - stainless steel

Bosch

SAR 1,484.00
+ SAR 4,898.00 Air Shipping

Includes any applicable VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Description

Product Description

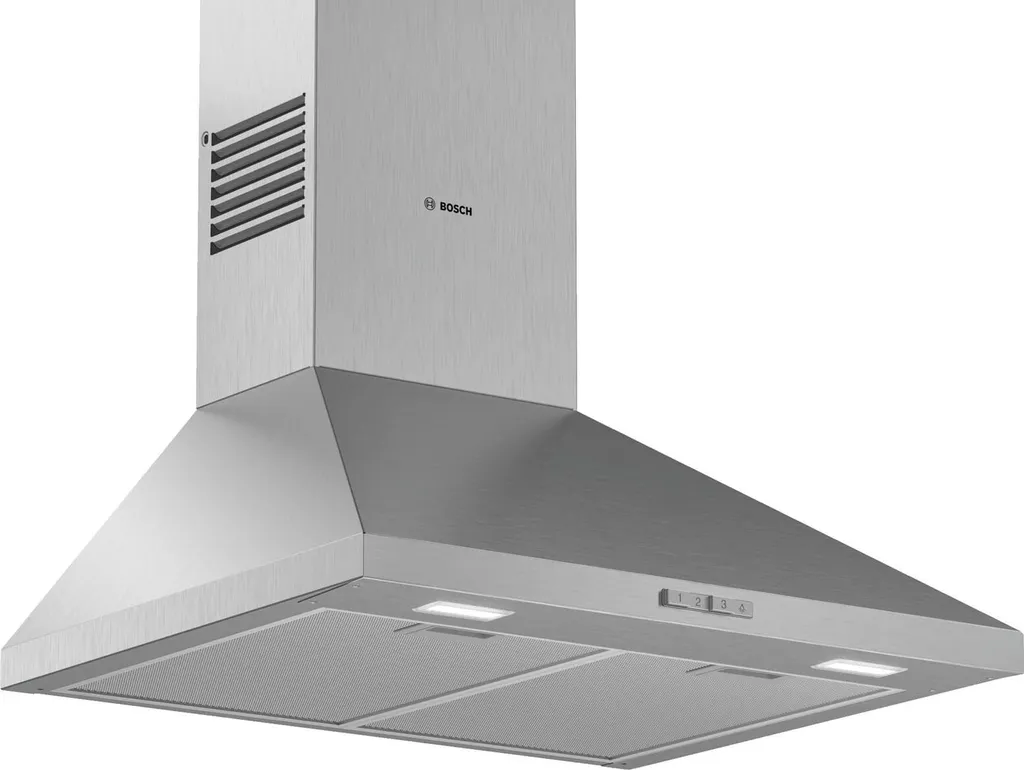

Bosch DWP66BC50, Wall-Mounted Extractor Hood
Highlights
- Pyramid-shaped extractor hood: Excellent performance to suit your kitchen.
- Led lighting: The energy-saving lighting provides good and bright illumination of the cooktop.

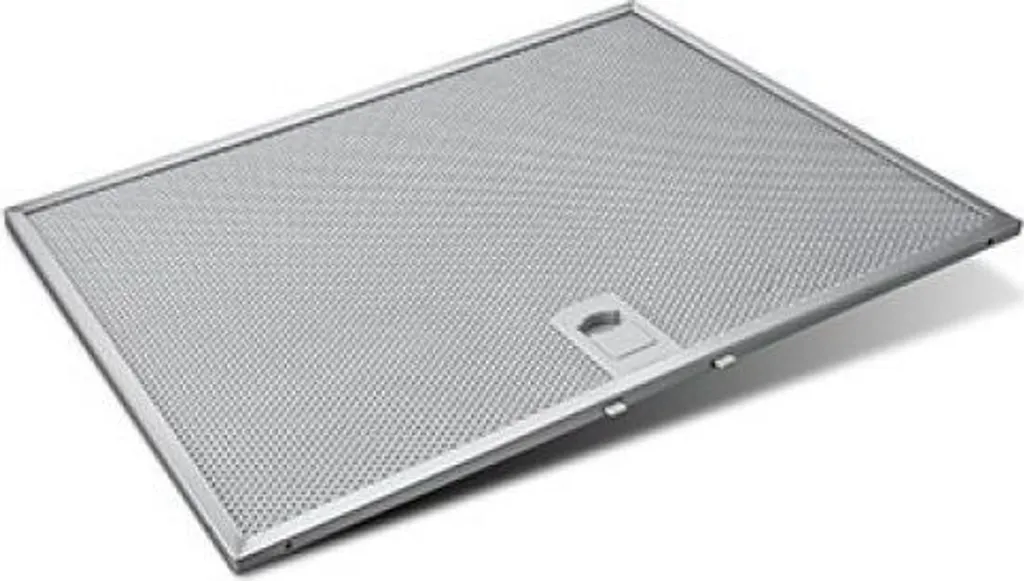

- Metal grease filter: Cleans the air, traps grease, easy monthly cleaning.
Operating Mode and Performance
Noise levels according to En 60704-2-13 max. normal setting, ducted operation: Noise, highest normal setting: 69 dB(A) re 1 pW
Noise level in recirculation mode:
max. normal setting: 75 dB(A) re 1 pW
Max. fan performance 597 m³/h in ducted operation according to En 61591
Recirculation performance:
max. normal operation: 406 m³/h
(on a Energy efficiency scale from A+++ to D)
Average energy consumption: 42.8 kWh/year*
Fan efficiency class: A*
Grease filter efficiency class: B*
Lighting efficiency class: A*
Noise level min./max. Normal setting: 49/69 dB

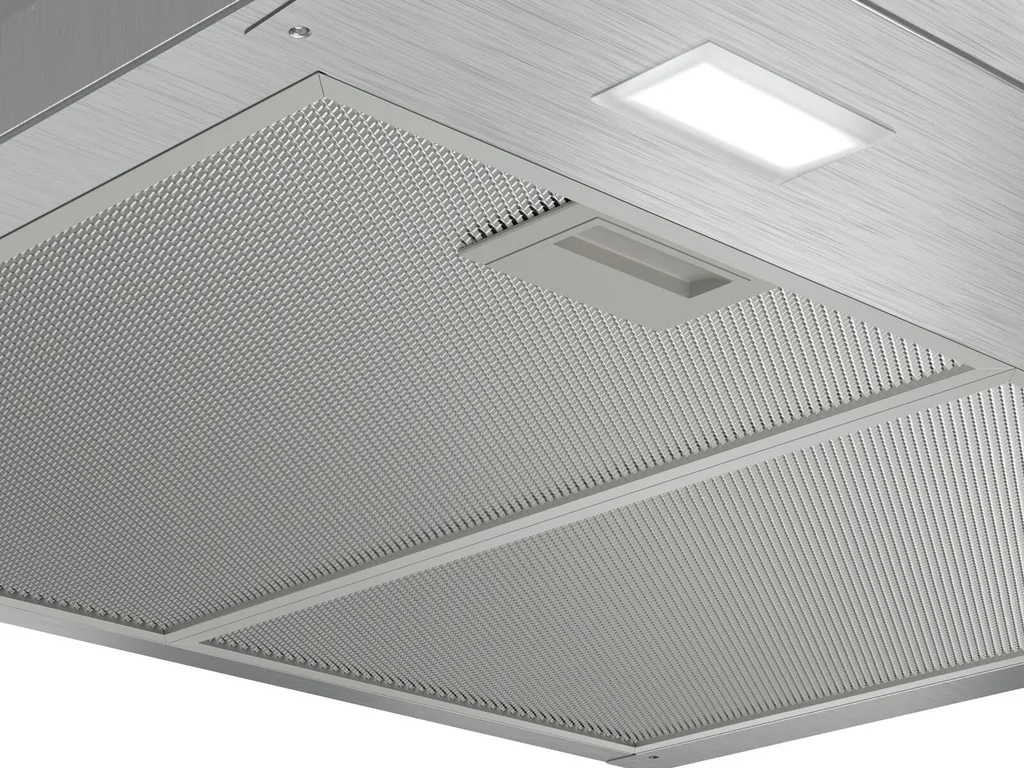

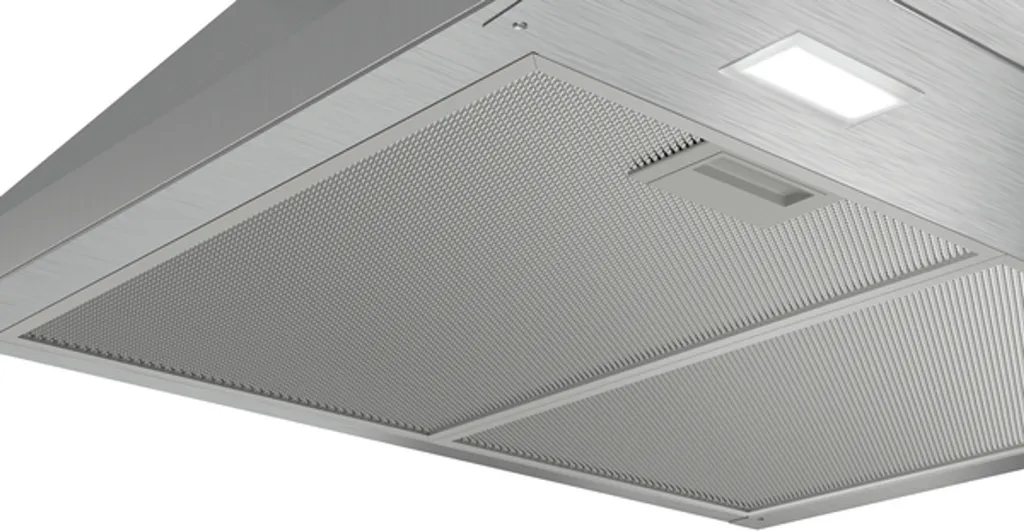

Uniform, bright illumination with 2 x 1.5 W Led modules
Illuminance: 104 lux
Color temperature: 3500 K
Comfort

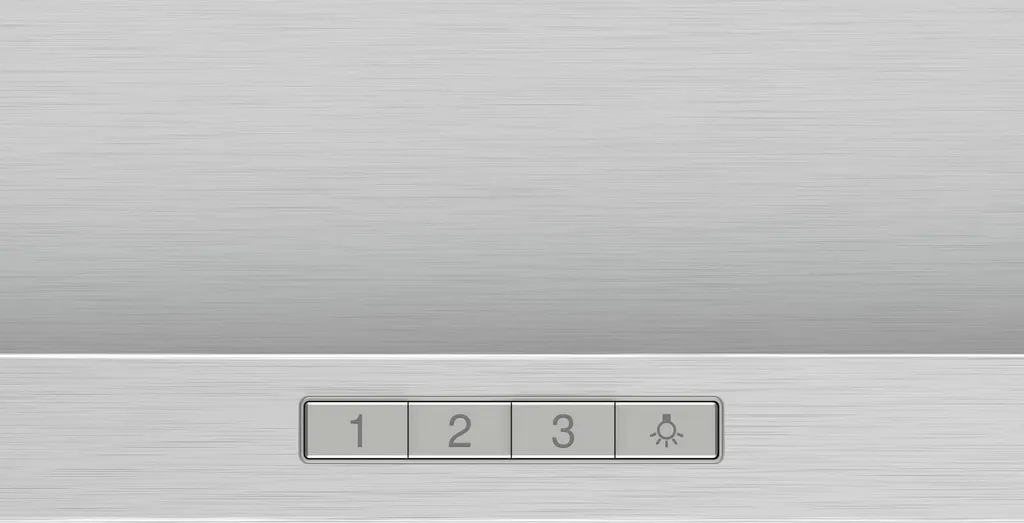

Push buttons
3 power levels

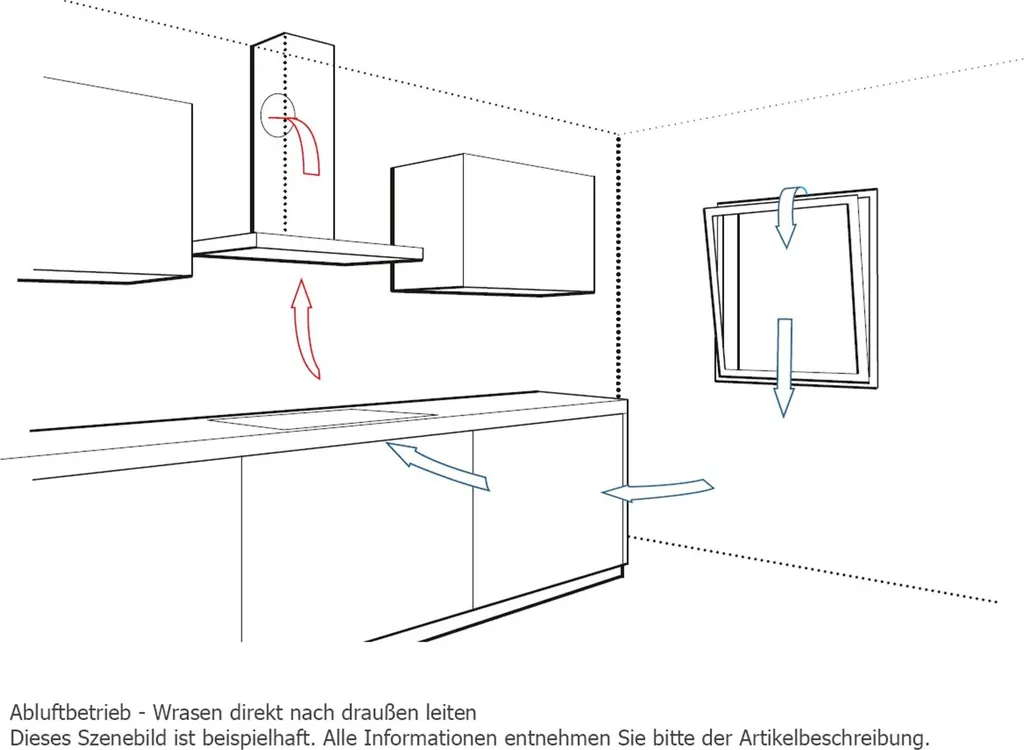

Convertible to ducted or recirculating operation
Environment and safety

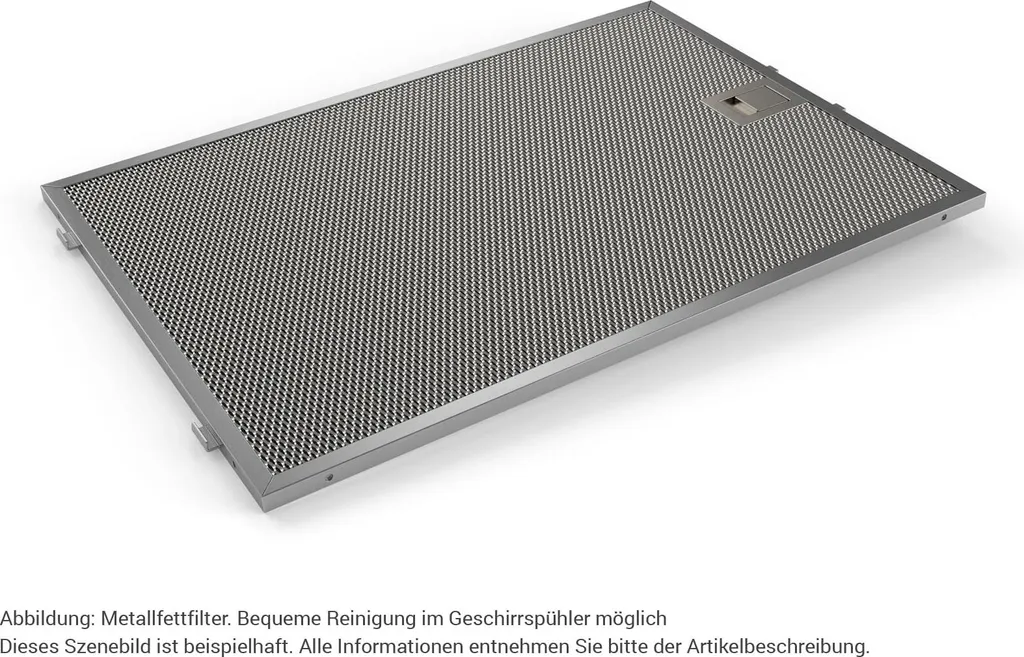

Dishwasher-safe metal grease filter
Technical information
For wall mounting above cooktops
A standard recirculation kit (optional accessory) is required for recirculating operation
Dimensions
Appliance dimensions ducted operation (H x W x D): 799-975 x 600 x 500 mm
Exhaust outlet Ø 150 mm (reducer Ø 120 mm included)
Appliance dimensions recirculating operation (H x W x D): 799-975 x 600 x 500 mm
Total connected load: 220 W
Length of connection cable: 1.3 m with plug
Technical Data
Item details
- Product group: Cooker hood
- Brand: Bosch
- Product series: Series 2
- International order designation: DWP66BC50
- Item number: DWP66BC50
- Ean number: 4242005031986
- Appliance color: Stainless steel
- Housing color: Stainless steel
- Chimney color: Stainless steel
- Housing material: Stainless steel
- Design: Wall-mounted
- Control: Mechanical
- Design: Built-in
- Installation type: Wall-mounted
- Control elements: Button
- Fan position: Motor in housing
- Airflow type: Convertible
- Power consumption: 220 W
- Fuse rating: 10 A
- Voltage: 220-240 V
- Minimum voltage: 220 V
- Maximum voltage: 240 V
- Frequency: 50; 60
- Minimum frequency: 50
- Maximum frequency: 60
- Connection cable length: 130 cm
- Plug type: Schuko/Gardy with grounding

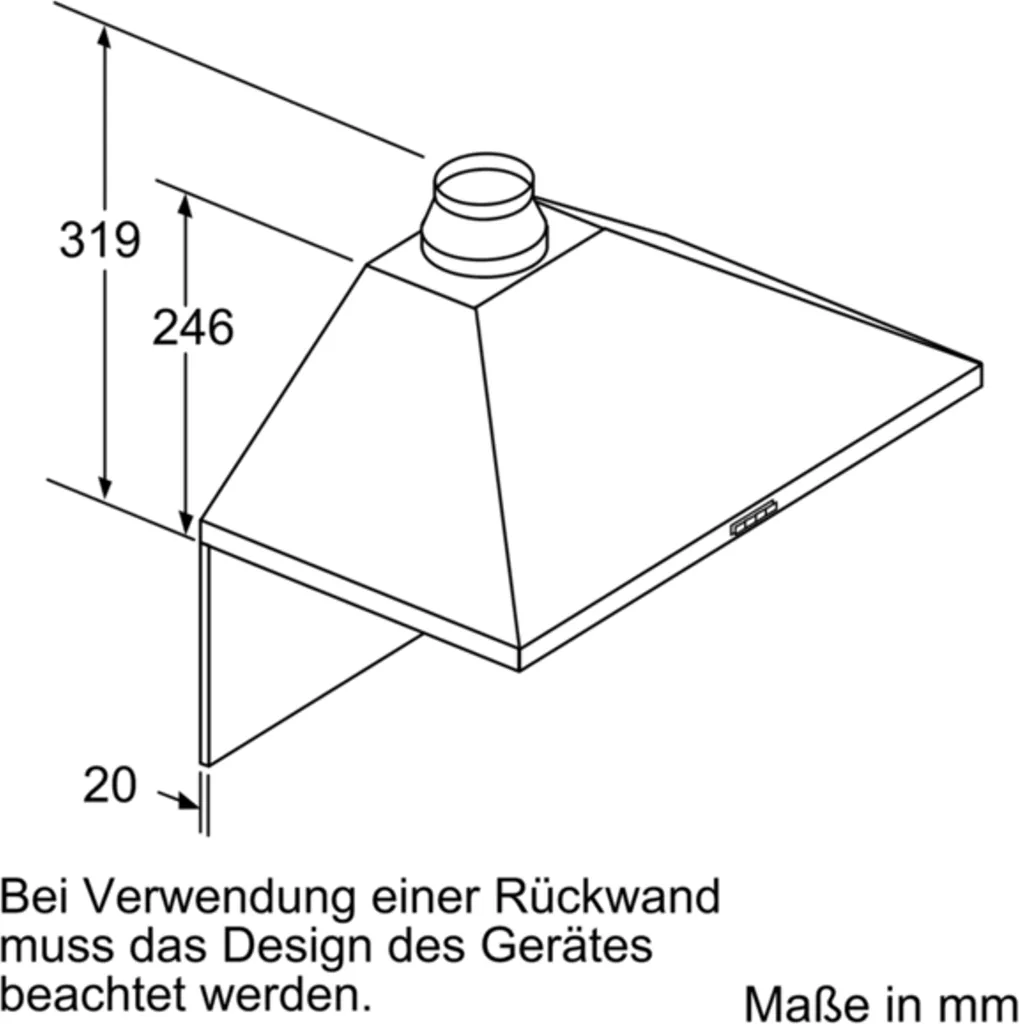

- Appliance height: 246 mm
- Appliance width: 600 mm
- Appliance depth: 500 mm
- Height of packaged appliance: 350 mm
- Width of packaged appliance: 650 mm
- Depth of packaged product: 730 mm
- Eprel Registration Number 2010: 167795
- Net weight: 8.7 kg
- Gross weight: 12.3 kg
- Air outlet: Yes
- Maximum chimney exhaust height: 730 mm
- Minimum chimney exhaust height: 553 mm
- Maximum chimney recirculation height: 730 mm
- Chimney recirculation height min.: 573 mm
- 2010/30/Eu): A
- Average Annual energy consumption: 42.8 kWh/year (in kWh/year based on standard test results over 24 hours. Actual energy consumption depends on the use and location of the appliance)
- Fluid dynamics efficiency (2010/30/Eu): 31.3
- Fluid dynamics efficiency class (2010/30/Ec): A
- Lighting efficiency (2010/30/Ec): 37.1 lux/Watt
- Lighting efficiency class (2010/30/Ec): A
- Grease filter efficiency (2010/30/Eu): 87.3%
- Grease filter efficiency class (2010/30/Eu): B
- Max. airflow: 598 m³/h
- Minimum airflow: 238 m³/h
- Noise level at max. Speed (2010/30/Ec): 69 dB
- Noise level at minimum speed (2010/30/Ec): 49 dB
- Energy consumption in off mode (2010/30/Eu): 0.00 W
- Sound power level: 69 dB(A) re 1 pW
- Energy-efficient device, can optimize consumption (2017/1369/Eu): No
- Wireless communication possible: No
- Control interface type: No
- Remote upgrade capability: No
- Remote update capability for maintenance: No
- Voice control capability: No
- Manual controls: Pushbuttons
- Remote control: No
- Number of fans: 1
- Total fan power: 215 W
- Maximum fan power - exhaust mode: 598 m³/h
- Max. fan output - recirculation mode: 406 m³/h
- Lighting efficiency (2010/30/Ec): On/Off
- Number of lamps: 2
- Total illuminance: 104 lux
- Grease filter material: Washable aluminum
- Exhaust duct diameter: 120 / 150 mm
- Backflow preventer: Yes
- Odor filter: No
- Number of speed settings: 3
- Type of lights used: Led
Documents

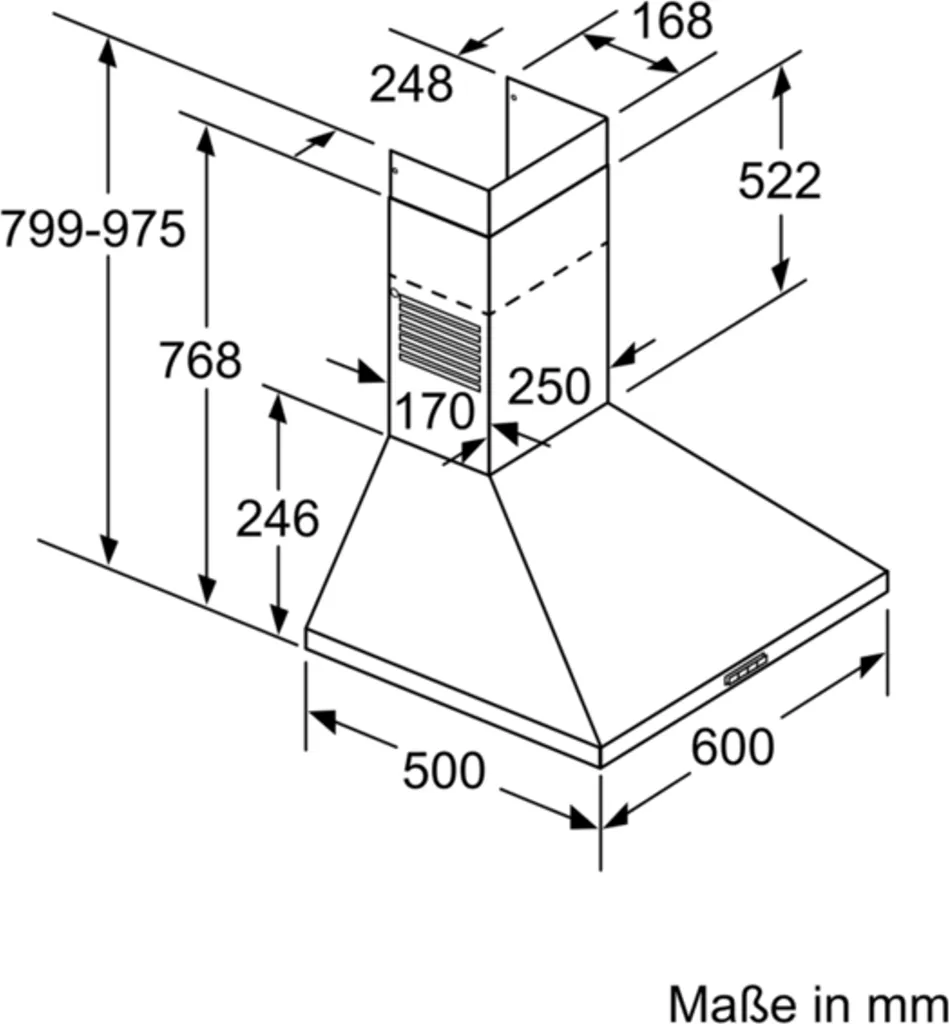

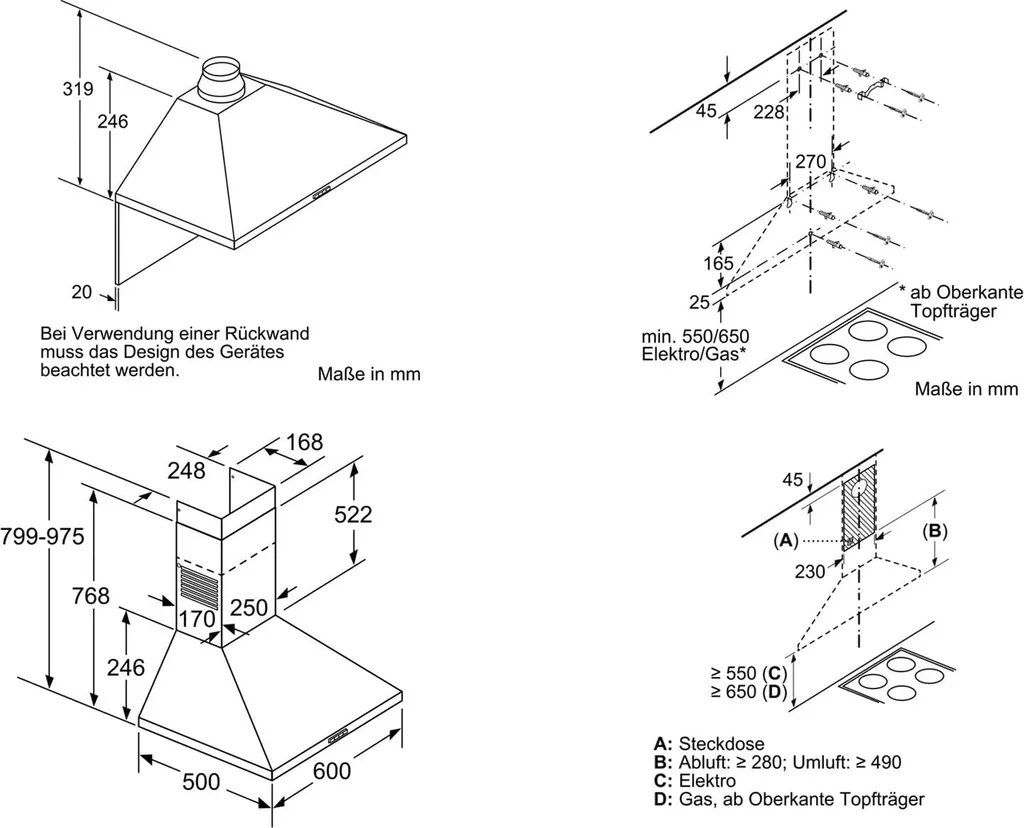

Dimensional drawings

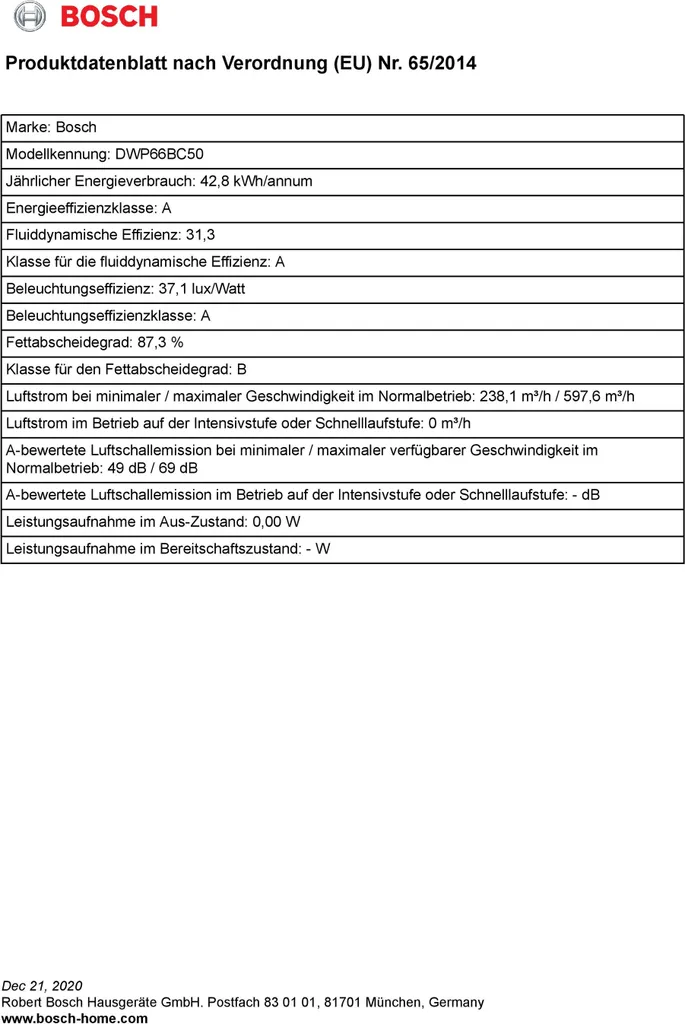

Eu Energy Label
Features
Operating instructions
User manual
Operating mode and performance
Noise levels according to En 60704-2-13 max. normal setting exhaust mode: Noise, highest normal setting: 69 dB dB(A) re 1 pW
Noise level at Recirculation mode:
Max. normal setting: 75 dB(A) re 1 pW
Max. fan performance 597 m³/h in exhaust air mode according to En 61591
Recirculation performance:
Max. normal operation: 406 m³/h
(on a scale from A+++ to D)
Average energy consumption: 42.8 kWh/year*
Fan efficiency class: A*
Grease filter efficiency class: B*
Lighting efficiency class: A*
Noise level min./max. Normal setting: 49/69 dB
Uniform, bright illumination with 2 x 1.5 W Led modules
Illuminance: 104 lux
Color temperature: 3500 K
Comfort
Push buttons
3 power levels
Convertible to ducted or recirculating operation
Environment and safety
Dishwasher-safe metal grease filter
Technical information
For wall mounting above cooktops
A standard recirculation kit (optional accessory) is required for recirculating operation
Dimensions
Appliance dimensions ducted operation (H x W x D): 799-975 x 600 x 500 mm
Exhaust outlet Ø 150 mm (reducer Ø 120 mm included)
Appliance dimensions recirculating operation (H x W x D): 799-975 x 600 x 500 mm
Total connected load: 220 W
Length of connection cable: 1.3 m with plug
Product series
: Series 2
Color of device
: Stainless steel
Base color of product
: Not applicable
Color of housing
: Stainless steel
Color of chimney
: Stainless steel
Specify housing material
: Stainless steel
Design
: Wall-mounted
Control
: Mechanical
Design
: Built-in
Type of installation
: Wall-mounted
Control elements
: Button
Decoratable
: Not applicable
Position of fan
: Motor in housing
Type of airflow
: Convertible
Connected load
: 220 W
Fuse
: 10
Voltage
: 220-240 V
Minimum voltage: 220 V; Maximum voltage: 240 V; Frequency: 50 Hz 60
Minimum frequency
: 50
Maximum frequency
: 60
Connection cable length
: 130 cm
Plug type
: Schuko/Gardy with grounding
Appliance height
: 24.6 cm
Appliance width
: 60 cm
Appliance depth
: 50 cm
Height of packaged appliance
: 35 cm
Width of packaged appliance
: 65 cm
Depth of packaged product
: 73 cm
Eprel Registration Number 2010
: 167795
Net weight
: 8.7 kg
Gross weight
: 12.3 kg
Air outlet
: Yes
Maximum chimney exhaust height
: 73 cm
Chimney exhaust height min.
: 55.3 cm
Chimney recirculation height max.
: 73 cm
Chimney recirculation height min.
: 57.3 cm
Average Annual energy consumption: 42.8 kWh/year Fluid dynamics efficiency (2010/30/Eu): 31.3 Lighting efficiency (2010/30/Ec): 37.1 lux/Watt Grease filter efficiency (2010/30/Eu): 87.3% Maximum airflow: 598 m³/h Minimum airflow: 238.1 m³/h Noise level at maximum speed (2010/30/Ec): 69 dB Noise level at minimum speed (2010/30/Ec): 49 dB Energy consumption in off mode (2010/30/Eu): 0.00 W Sound power level dB
: 69 dB(A) re 1 pW
Energy-efficient device, can optimize consumption (2017/1369/Eu)
: No
Wireless communication possible
: No
Network broadband technology
: Not applicable
Type of control interface
: No
Remote upgrade capability
: No
Remote update capability for maintenance
: No
Voice control capability
: No
Manual controls
: Push buttons
Remote control
: No
Total fan power
: 215 W
Max. fan power - exhaust mode
: 598 m³/h
Max. fan power - recirculation mode
: 406 m³/h
Lighting efficiency (2010/30/Ec)
: On/Off
Total luminous intensity
: 104 lux
Grease filter material
: Washable aluminum
Exhaust duct diameter
: 12 cm
Backflow preventer
: Yes
Odor filter
: No
Type of light source used
: Led
bsh-group.com/Product_Shots/3000x3000/MCSA02247699_DWP64BC50_ChimneyHood_Bosch_PGA2_def.jpg
bsh-group.com/Product_Shots/3000x3000/MCSA02249070_DWP94BC50_ChimneyHood_Bosch_PGA4_def.jpg
COMBINED_NOMENCLATURE_CODE: 84146000
RECYCLING_WEIGHT_CARDBOARD: 2.796
RECYCLING_WEIGHT_EPS: 0.133
RECYCLING_WEIGHT_PLASTIC: 0.053
RECYCLING_WEIGHT_WOOD: 0.512
RECYCLING_WEIGHT_OTHER: 0.084
RECYCLING_WEIGHT_PACKAGING: 3.578
"Four-gable roof" design: perfect performance and a design that suits any kitchen. Mechanical buttons: easy selection of the desired level. Capacity: 597 m³/h for rapid improvement of air quality in the kitchen. Quiet operation: maximum efficiency at a low noise level.
Number of motors: Dual-channel high-performance fan motor (215 W)
Number of speeds: 3 speeds
Duct diameter: 120/150 mm
Energy class: A
For recessed installation: -
Capacity, m³/h: 570 m³/h
Energy consumption: 40.0 kWh/year
Metal filter: Metal grease filter, dishwasher-safe
Min. noise level, dB: 69 dB
Lighting: 2 x 1.5 W LEDs
Dimensions (W, L, H), cm: 60.0 x 50.0 x 79.9–97.5/79.9–97.5 cm
Weight, kg: 8.30 kg
Type: Wall-mounted
Control: Mechanical
Color: Stainless steel
Width, cm: 60 cm
Pyramid extractor hood: Excellent performance to suit your kitchen.
- Extraction rate: quickly ensures an optimal kitchen climate with up to 570 m³/h.
- Push buttons: easy selection of the desired power level with mechanical controls.
- Quiet: best extraction performance with low noise.

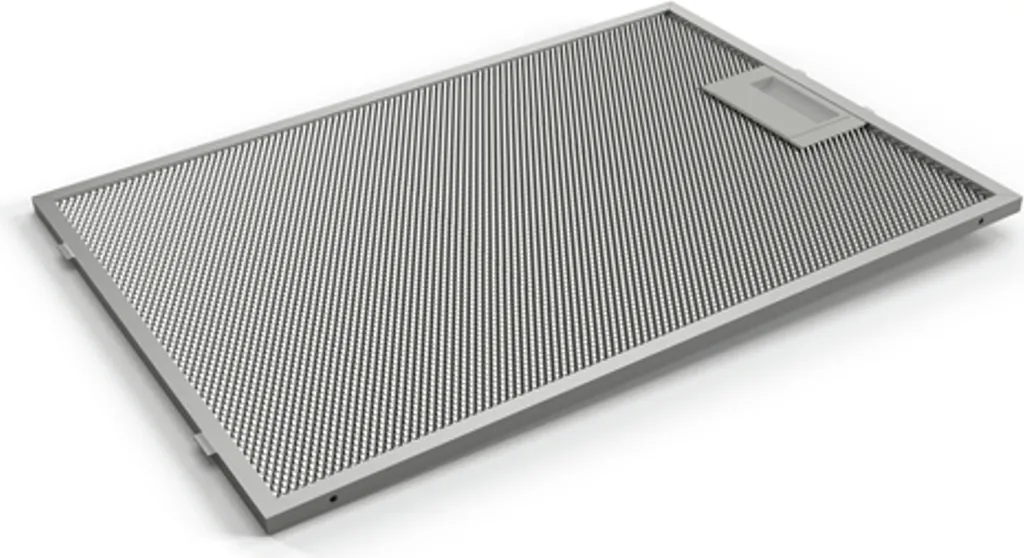

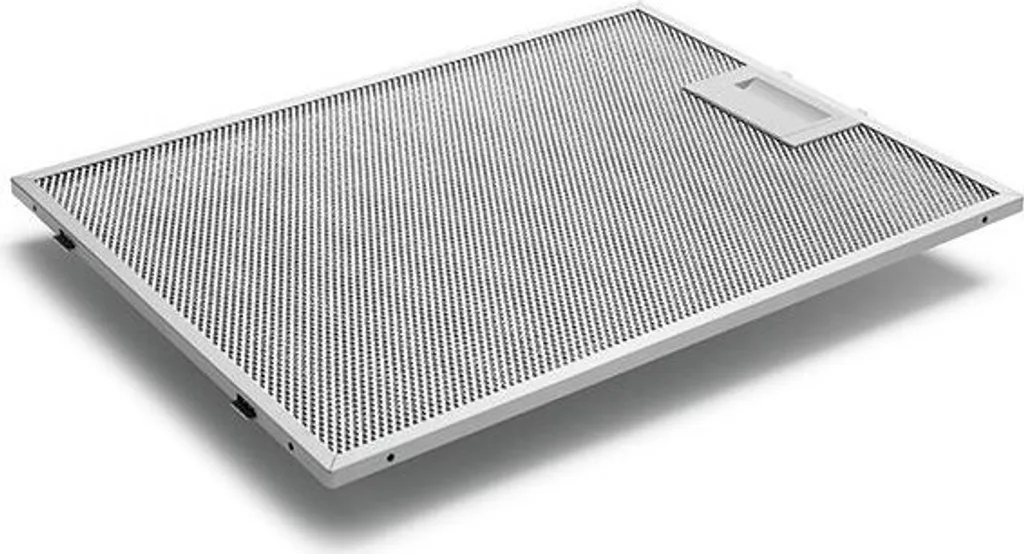

Metal grease filters
Metal grease filters are required for ducted and recirculating hoods to filter grease and other solids from the extracted air. To maintain their high effectiveness, they should be cleaned approximately once a month by hand or in the dishwasher.
This hood can be used in two operating modes: ducted or recirculating operation.
A starter kit (optional accessory) is required for recirculating operation.
Fan performance in ducted mode according to En 61591: max. normal setting 597 m³/h.
Noise level min./max. Normal setting: 49/69 dB
Comfort
Push-button switch
3 power levels
Environment and safety
Metal grease filter, dishwasher-safe
Technical information
For wall mounting above cooktops
Appliance dimensions exhaust air (H x W x D): 799-975 x 600 x 500 mm
Exhaust duct Ø 150 mm (Ø 120 mm included)
Appliance dimensions recirculation (H x W x D): 799-975 x 600 x 500 mm
Total connected load: 220 W
Connection cable length: 1.3 m with plug
Maximum extraction rate:
570 m³/h
Extraction type:
Guided
Fluid dynamic efficiency class:
Lighting efficiency class:
Oil filter efficiency class:
Number of speeds:
Noise level:
69 dB
Noise level (low speed):
49 dB
Noise level (high speed):
69 dB
Airborne noise emission (recirculating mode):
75 dB
Pressure (Pa):

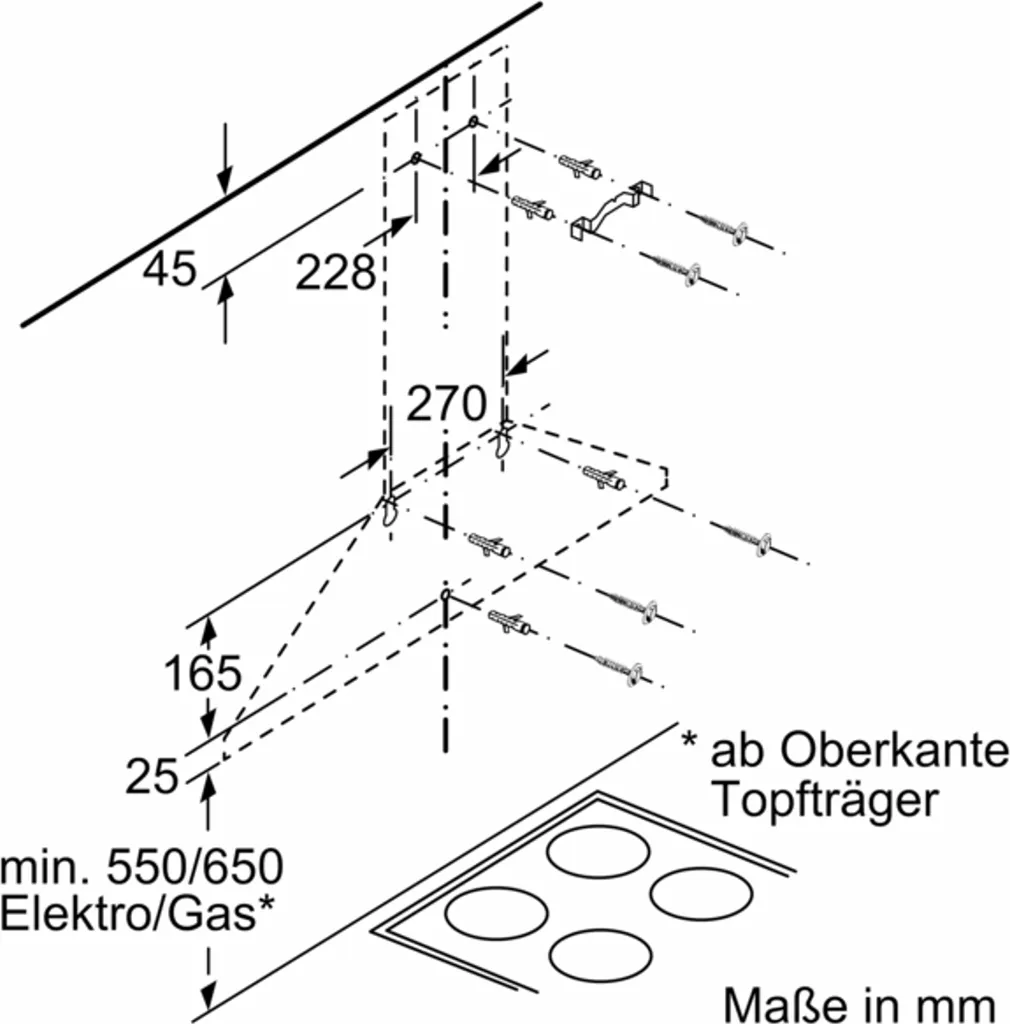

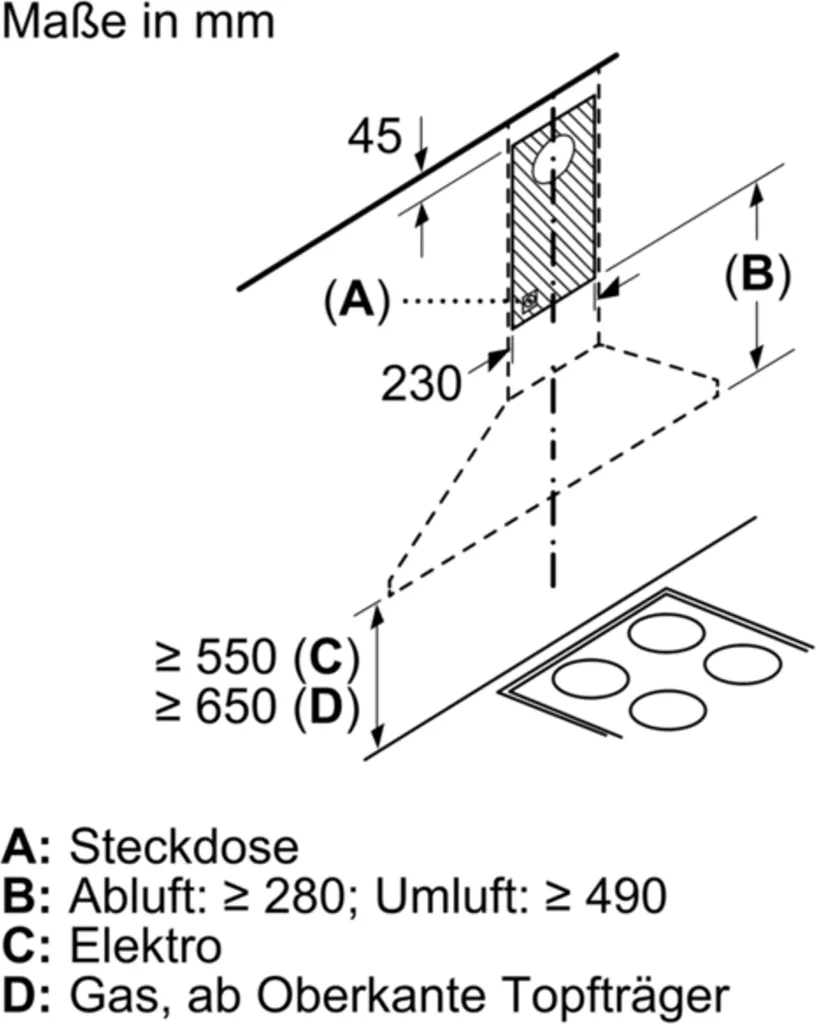

Minimum distance from electric hob:
55 cm
Minimum distance from gas hob:
65 cm
Type:
Wall-mounted
Product color:
Stainless steel
Housing material:
Stainless steel
Controls:
Buttons
Cable length:
1.3 m
Exhaust connection diameter:
15 cm
Grease filter type:
Aluminum
Dishwasher filter:
Lamp power:
3 W
Number of lamps:
2 bulb(s)
Light source type:
Led
Light intensity:
104 Lux
Illuminance efficiency (Le):
37.1 Lux per Watt
dt>
Annual energy consumption:
42.8 kWh
Scale:
A++ to E
Connected load:
220 W
Ac input voltage:
220-240 V
Ac input frequency:
50 - 60 Hz
Current:
10 A
Width:
600 mm
Depth:
500 mm
Height (min):
79.9 cm
Height (max):
97.5 cm
Height without vent:
24.6 cm
Weight:
8 kg
Airflow:
570 m³/h
Grease filter efficiency (Gfe):
87.3%
Fluid Dynamic Efficiency (Fde):
31.3
Width in cm:
Maximum airflow in m³/h:
570
Mounting type:
Wall/cabinet mounting
Filter system:
Metal filter
Extraction system:
Extraction/recirculation
Number of motors:
Number of fan speeds:
Noise emission dB(A) re1 pW:
Annual energy consumption in kWh:
Product type:
Island hood
Chimney shape:
Trapezoidal
Fluid Dynamic Efficiency (Eu):
Lighting efficiency class (Eu):
Grease filtering efficiency class (Eu):
Operating mode and performance (on a scale from A++ to E) Average energy consumption: 39.9 kWh/year* Fan efficiency class: A* Lighting efficiency class: A* Grease filter efficiency class: C* Max. extraction rate: 570 m³/h Max. fan output: 570 m³/h in exhaust air mode according to En 61591 Recirculation rate: max. normal operation: 400 m³/h Noise level min./max. Normal setting: 49/69 dB noise levels according to En 60704-3 and En 60704-2-13. Max. normal setting, exhaust air operation: 69 dB(A) re 1 pW (57 dB(A) re 20 µPa sound pressure). Noise level in recirculation mode: Max. normal setting: 75 dB(A) re 1 pW (63 dB(A) re 20 µPa sound pressure). Convertible to exhaust or recirculation mode. A starter kit (optional accessory) is required for recirculation mode. Comfort: Illuminance: 104 lux. Color temperature: 3500 K. Uniform, bright illumination with 2 x 1.5W Led modules. Push-button switch. 3 power levels. Environment and safety: Metal grease filter, dishwasher-safe. Technical information: For wall mounting above cooktops. Dimensions: Exhaust duct Ø 150 mm (Ø 120 mm included). Total connected load: 220 W. Connection cable length: 1.3 m. Plug-in appliance dimensions recirculation (H x W x D): 799-975 x 600 x 500 mm Appliance dimensions exhaust air (H x W x D): 799-975 x 600 x 500 mm
Bosch

Product Information

Dimension : 8000 g
EAN : 4242005031986
Color : Silver
Depth : 50 cm
Model : DWP66BC50
Width : 60 cm
Height : 24.6 cm
Weight : 8000 g
Airflow : 597 m³/h
EPREL ID : 167795
Dimensions : 79.9-97.5 (H) x 60.0 (W) x 50.0 (D) cm
Noise Level : 69 dB
Manufacturer : Bosch
Extraction System : Recirculating Mode
Mounting Location : Wall
Scope of Delivery : Bosch DWP66BC50 Wall Hood 60 cm Stainless Steel
Manufacturer Number : DWP66BC50

Images

Reviews

Be the first to review. Login

Does not include VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Qty:

Share on:

Bosch Series 2 DWP66BC50 wall-mounted cooker hoods...

Cash on Delivery (COD)

Cash on Delivery is a payment method for customer orders of Honest Forwarder throughout the UAE and KSA.

For the Cash on delivery orders, you pay at the time the order is delivered by the delivery driver and the driver only accepts cash.

How cash on delivery (COD) works?

Choose Cash On Delivery as your payment method at the checkout page when you place your order.
Send us the order ID over WhatsApp. The order ID is shown in the Cash On Delivery confirmation page or email. Until this order ID verification is over, we can’t process your order.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
The delivery driver will collect the due amount for the order. The driver only accepts cash. Kindly make sure the exact amount is ready in cash for collection.

Product Return and cancellation

In the event of cancellation of your order, please write to us immediately at support@honestforwarder.com. It must be done as soon as possible, before the order is dispatched to the airport for departure.

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

We can’t accept the product return for a mere change of minds for the exchange or replacement after delivery. The return request is accepted only when it is due to product defect, damage reported on delivery or wrong item.

Credit Card & Debit Card

Honest Forwarder partners with Telr, a payment gateway company with the track record and presence in UAE, to offer a safe and secure credit/debit card processing.

Your transaction will be settled in SAR. Therefore, your bank will not charge any fee for the foreign currency conversion.

How Credit Card/Debit Card works?

Choose Credit Card/Debit Card as your payment method at the checkout page when you place your order.
Press Proceed to Pay at the checkout page and enter your credit card information in the next page of Telr, our Credit card payment gateway partner. Honest Forwarder never stores your credit card information.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
Any issue on processing your order, kindly report to us immediately at support@honestforwarder.com or through Contact Us page.

Product Return and Cancellation

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

Category links

Social Media links

Bosch Series 2 DWP66BC50 wall-mounted cooker hoods - stainless steel

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

Bosch Series 2 DWP66BC50 wall-mounted cooker hoods...

Category links

Social Media links

Bosch Series 2 DWP66BC50 wall-mounted cooker hoods - stainless steel

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

Bosch Series 2 DWP66BC50 wall-mounted cooker hoods...

Cash On Delivery Information

Cash on Delivery (COD)

Credit Card & Debit Card Payment Information

Credit Card & Debit Card

Max weight for health supplements.

VAT and Customs Duty For Oman

VAT and Customs Duty For Qatar

VAT and Customs Duty For Bahrain

Ask for price
