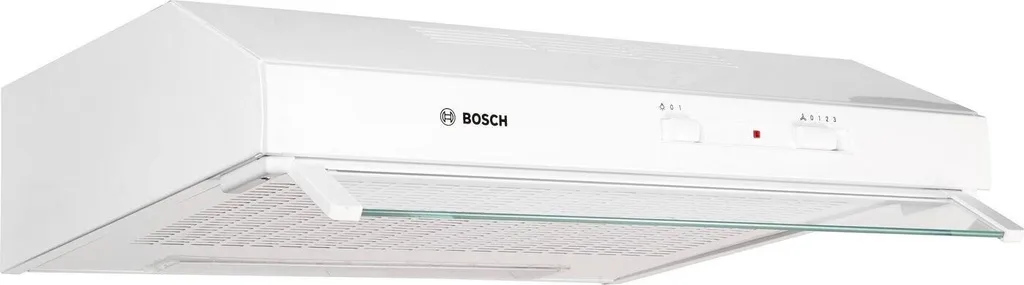

Bosch Series 2 DUL62FA21 Under-Cabinet Hoods - White

Bosch

SAR 496.00
+ SAR 963.00 Air Shipping

Includes any applicable VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Description

Product Description

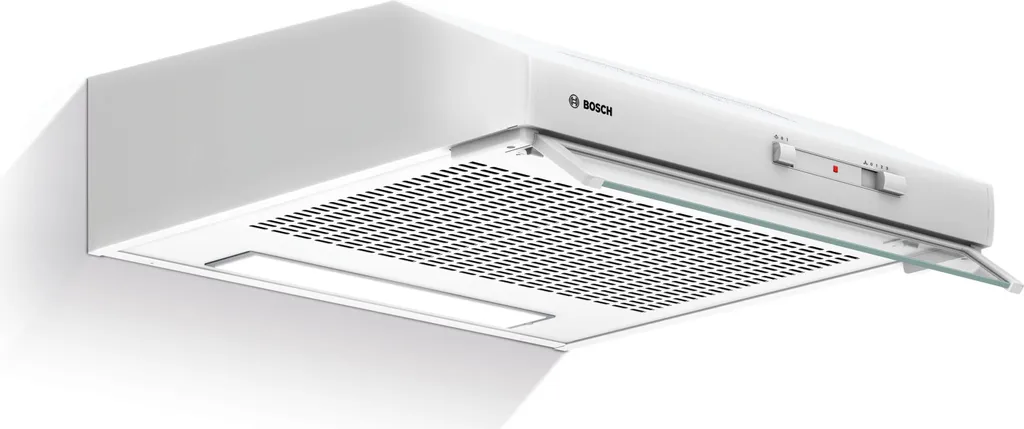

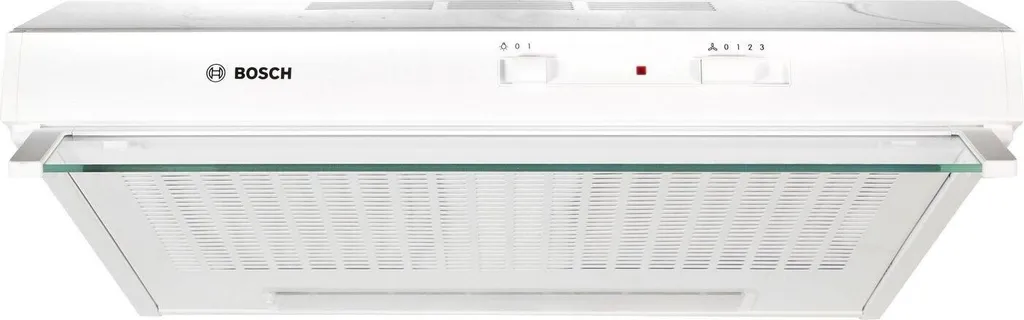

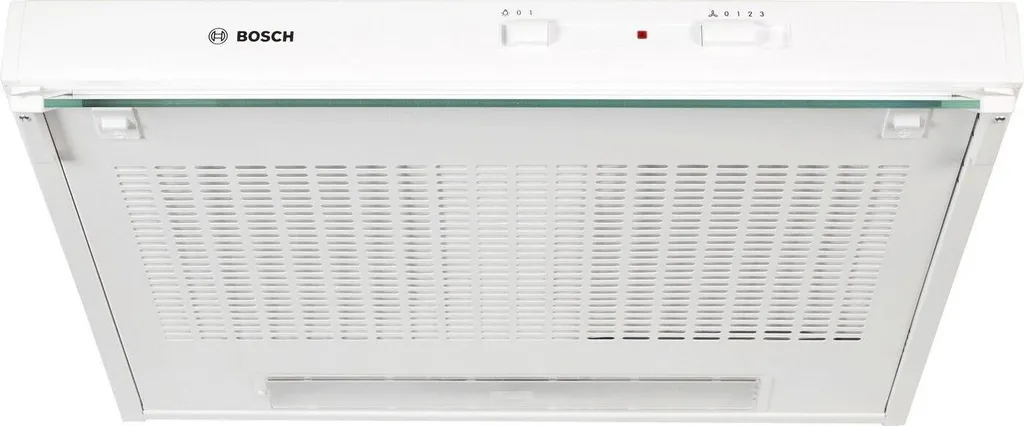

Bosch DUL62FA21, Built-in Cooker Hood
Highlights
- The built-in hood: place the hood under your wall cabinet or wall to save space.

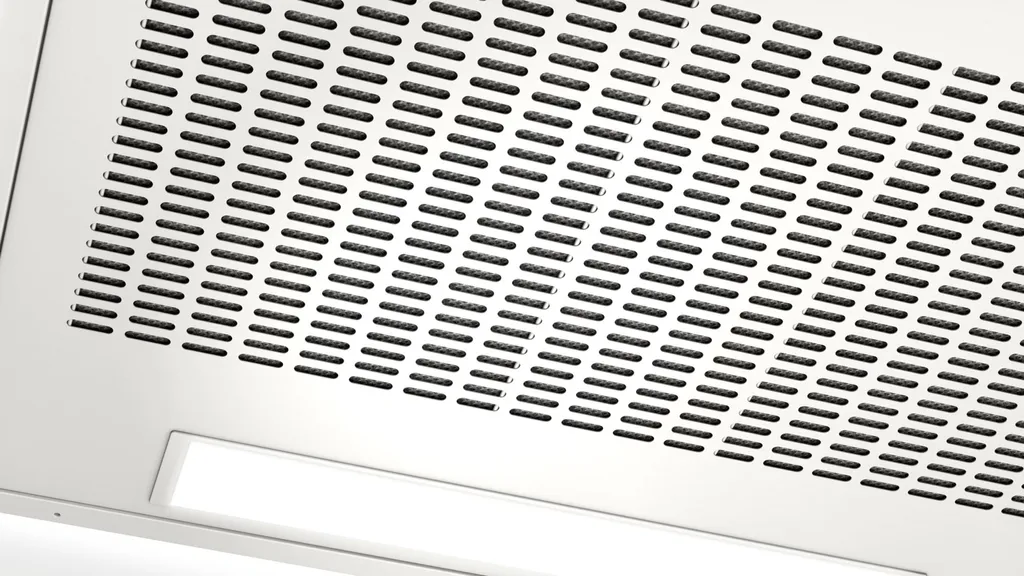

- Led lighting: The energy-saving lighting provides good and bright illumination of the cooktop.
Operating Mode and Performance
Noise levels according to En 60704-3 and En 60704-2-13 max. normal setting, ducted operation: 68 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
Extraction rate according to En 61591:
max. 250 m³/h
(on a scale from to D)
Average energy consumption: 69.3 kWh/year*
Fan*
Grease filter*
Lighting*
Noise min./max. Normal setting: 53/68 dB
Workplace lighting with 1 x 4W E14 Led
Illuminance: 45 lux
Color temperature: 3000 K
Comfort

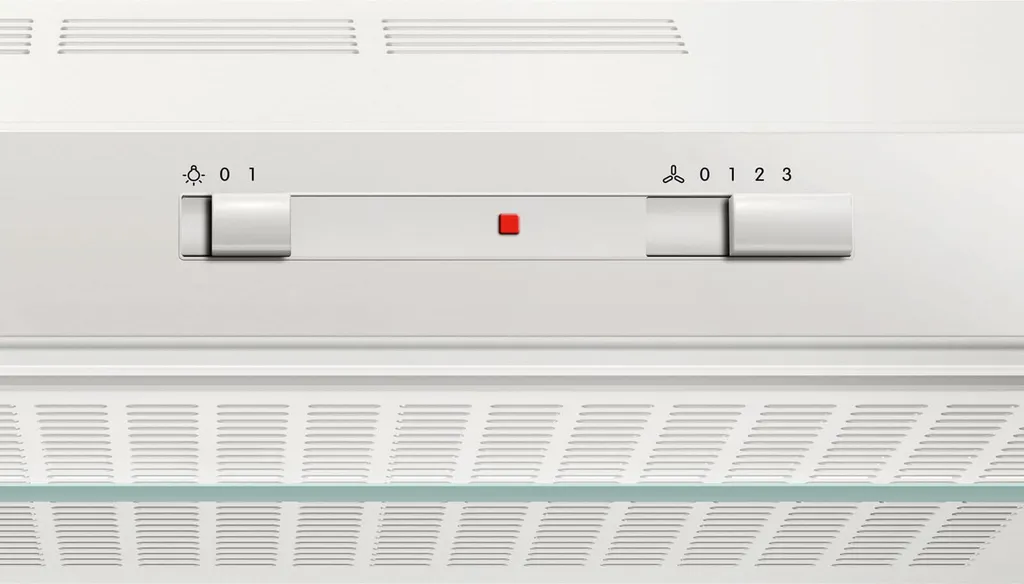

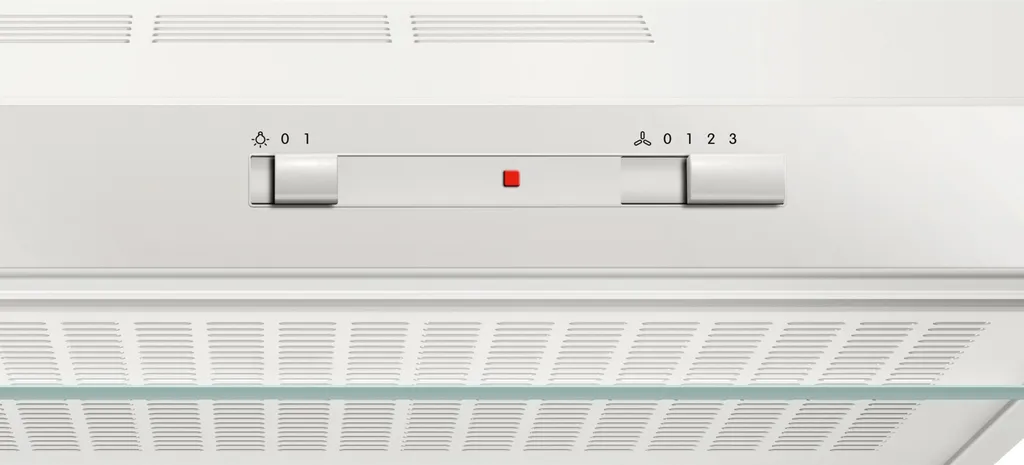

Slide switch
3 power levels
Convertible to ducted or recirculating operation
Supplied with backflow preventer
Environment and safety

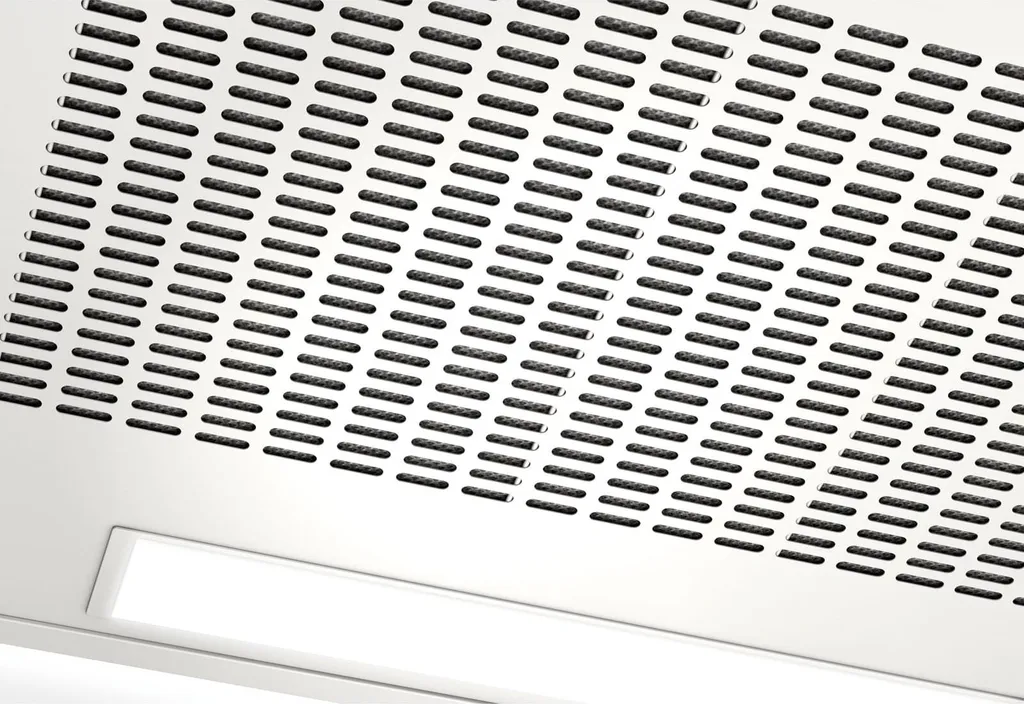

Fleece filter
Infinitely adjustable air guide
made of glass
Technical information

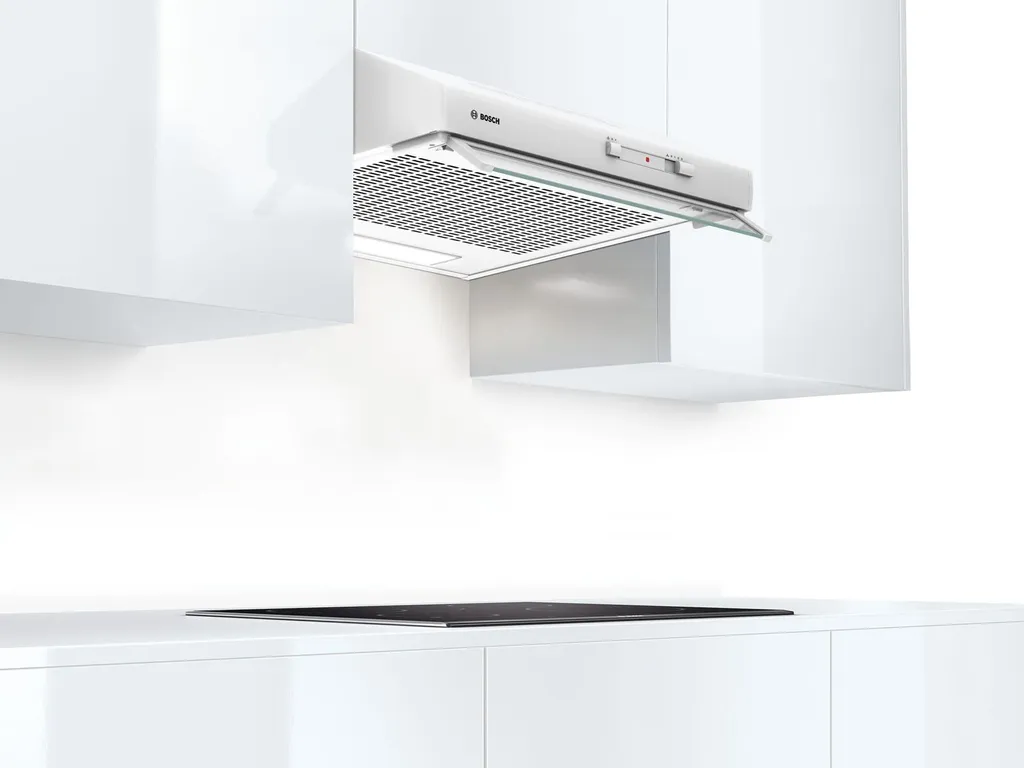

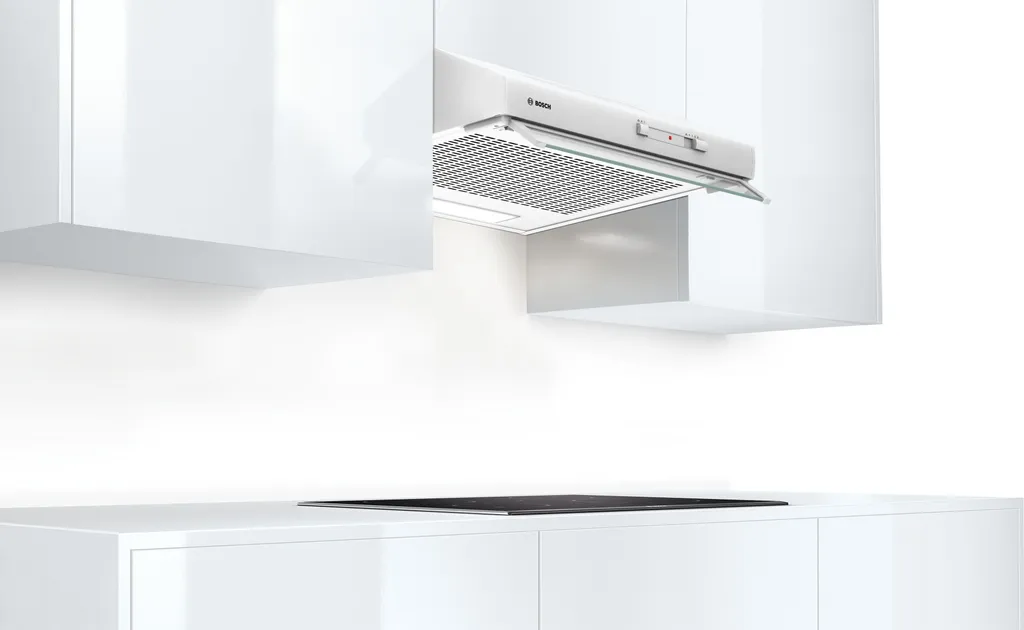

For installation under a wall cabinet or on the wall
A standard activated carbon filter is required for recirculating operation (optional accessory)
Dimensions
Appliance dimensions (H x W x D): 150 x 600 x 482 mm
Exhaust duct Ø 120 mm, 100 mm
Total connected load: 119 W
Technical Data
Product details
- Product group: Cooker hood
- Brand: Bosch
- Product series: Series 2
- International order designation: DUL62FA21
- Article number: DUL62FA21
- Ean number: 4242005133888
- Device color: White
- Housing color: White
- Housing material: Painted
- Design: Fan unit/Intermediate/Under-counter hood
- Control: Mechanical
- Design: Built-in
- Installation type: Under-counter unit
- Controls: Mechanical slider
- Fan position: Motor in housing
- Airflow type: Convertible
- Power consumption: 119 W
- Voltage: 220-240 V
- Minimum voltage: 220 V
- Maximum voltage: 240 V
- Frequency: 50 Hz
- Minimum frequency: 50
- Maximum frequency: 50
- Connection cable length: 145 cm
- Plug type: Schuko/Gardy with grounding
- Device height: 150 mm
- Device width: 600 mm
- Device depth: 482 mm
- Packaged device height: 270 mm
- Packaged device width: 740 mm
- Packaged product depth: 650 mm
- Eprel Registration Number 2010: 167771
- Net weight: 6.0 kg
- Gross weight: 9.8 kg
- Air outlet: Yes
- 2010/30/Eu): D
- Average Annual energy consumption: 69.3 kWh/year (in kWh/year based on standard test results over 24 hours. Actual energy consumption depends on the use and location of the appliance)
- Fluid dynamics efficiency (2010/30/Eu): 8.1
- Fluid dynamics efficiency class (2010/30/Ec): E
- Lighting efficiency (2010/30/Ec): 11.0 lux/Watt
- Lighting efficiency class (2010/30/Ec): E
- Grease filter efficiency (2010/30/Eu): 65.1%
- Grease filter efficiency class (2010/30/Eu): D
- Max. airflow: 250 m³/h
- Minimum airflow: 135 m³/h
- Noise level at max. speed (2010/30/Ec): 68 dB
- Noise level at minimum speed (2010/30/Ec): 53 dB
- Energy consumption in off mode (2010/30/Eu): 0.00 W
- Sound power level: 68 dB(A) re 1 pW
- Energy-efficient device, can optimize consumption (2017/1369/Eu): No
- Wireless communication possible: No
- Control interface type: No
- Remote upgrade capability: No
- Remote update capability for maintenance: No
- Voice control capability: No
- Manual controls: Slide switch
- Remote control: No
- Number of fans: 1
- Total fan power: 115 W
- Max. fan power - exhaust mode: 250 m³/h
- Max. fan output - recirculation mode: 80 m³/h
- Lighting efficiency (2010/30/Ec): On/Off
- Number of lamps: 1
- Total lamp power: 4 W
- Total illuminance: 45 lux
- Grease filter material: Non-washable synthetic
- Exhaust duct diameter: 100 / 120 mm
- Backflow preventer: Yes
- Odor filter: No
- Number of speed settings: 3
Documents

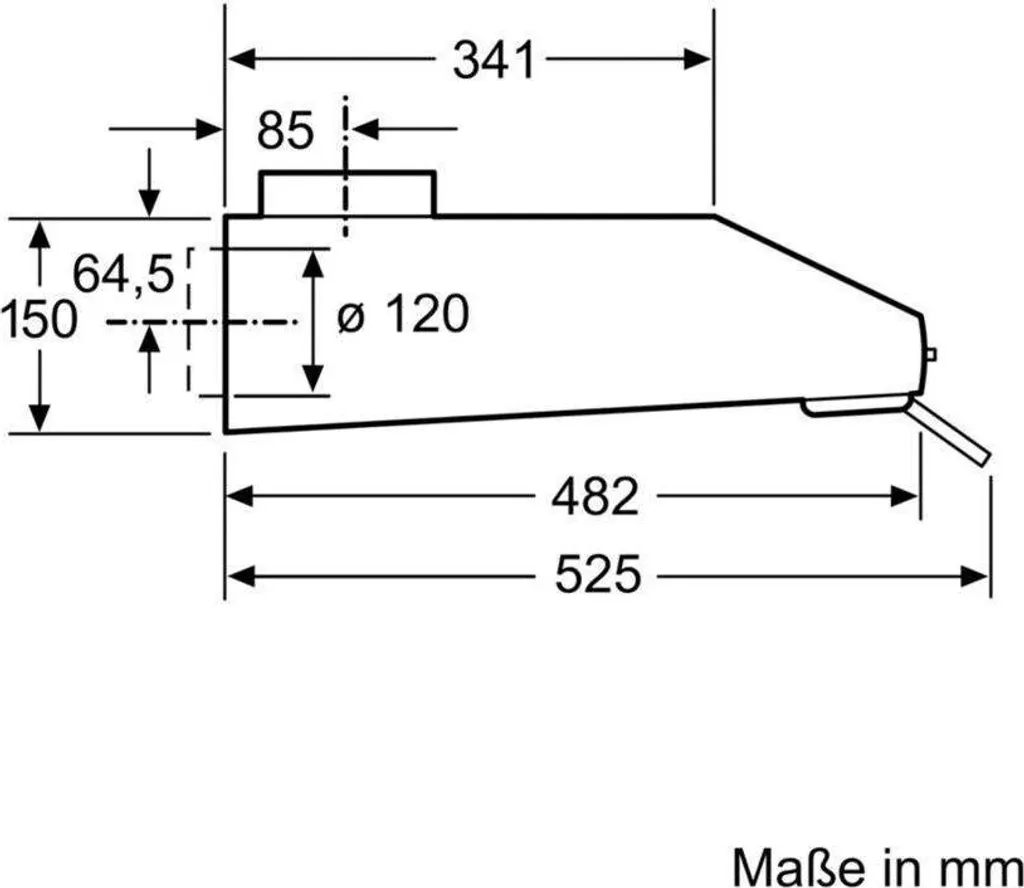

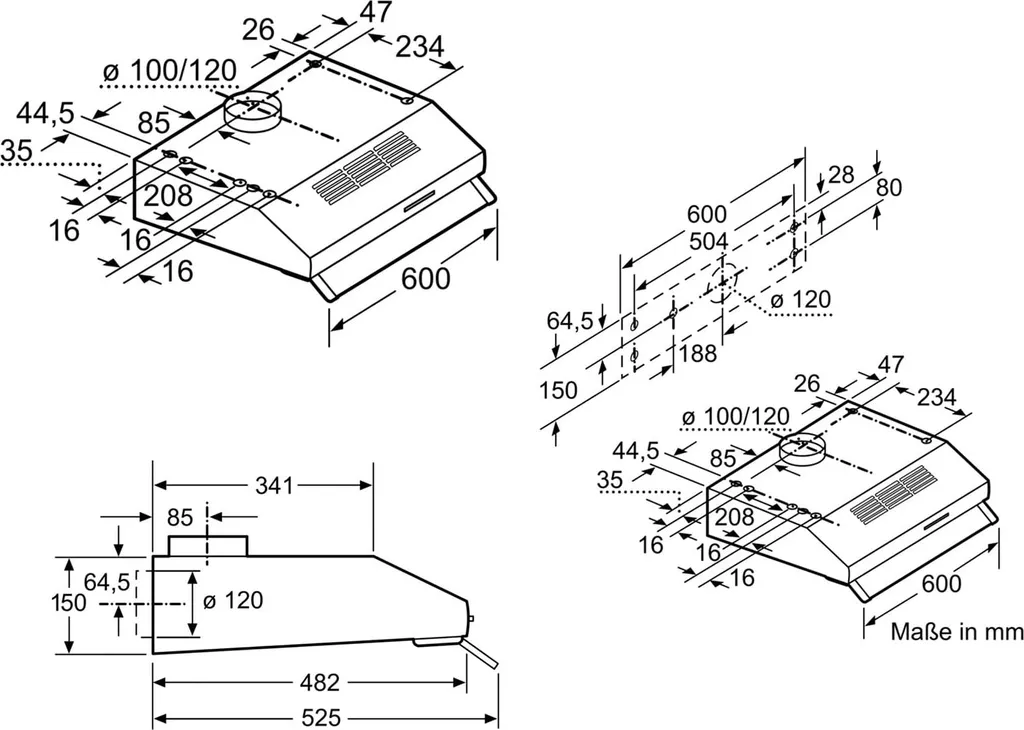

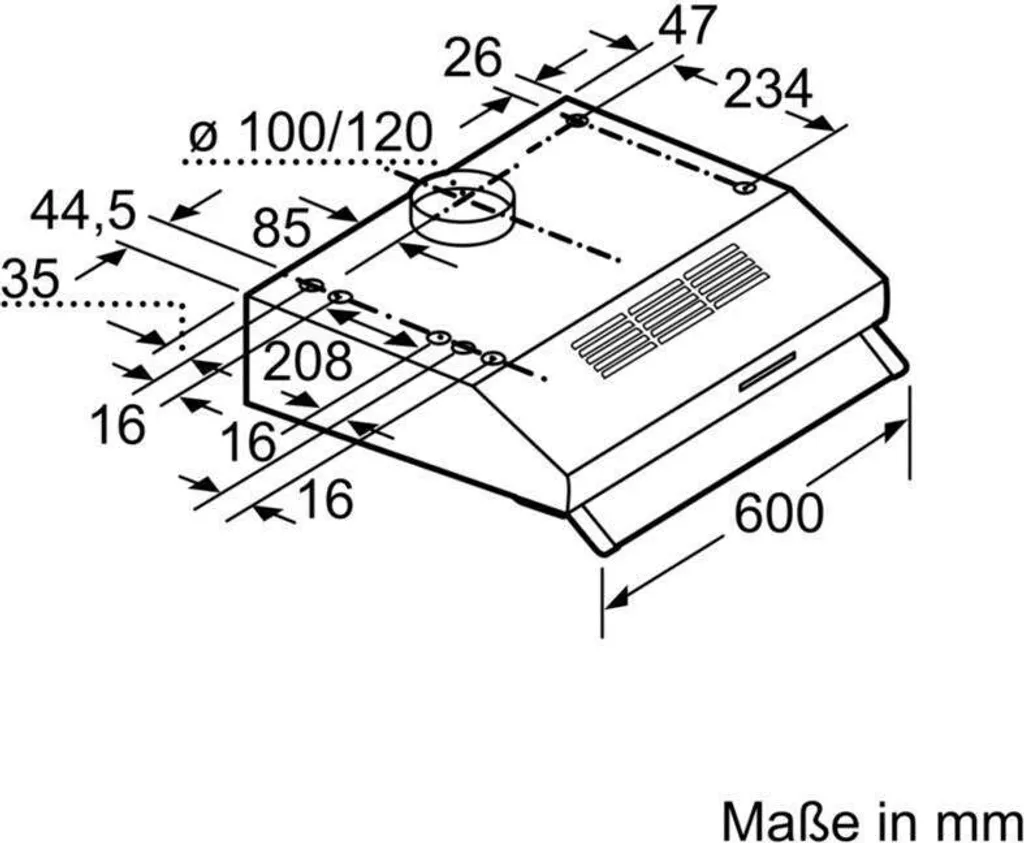

Dimensional drawings

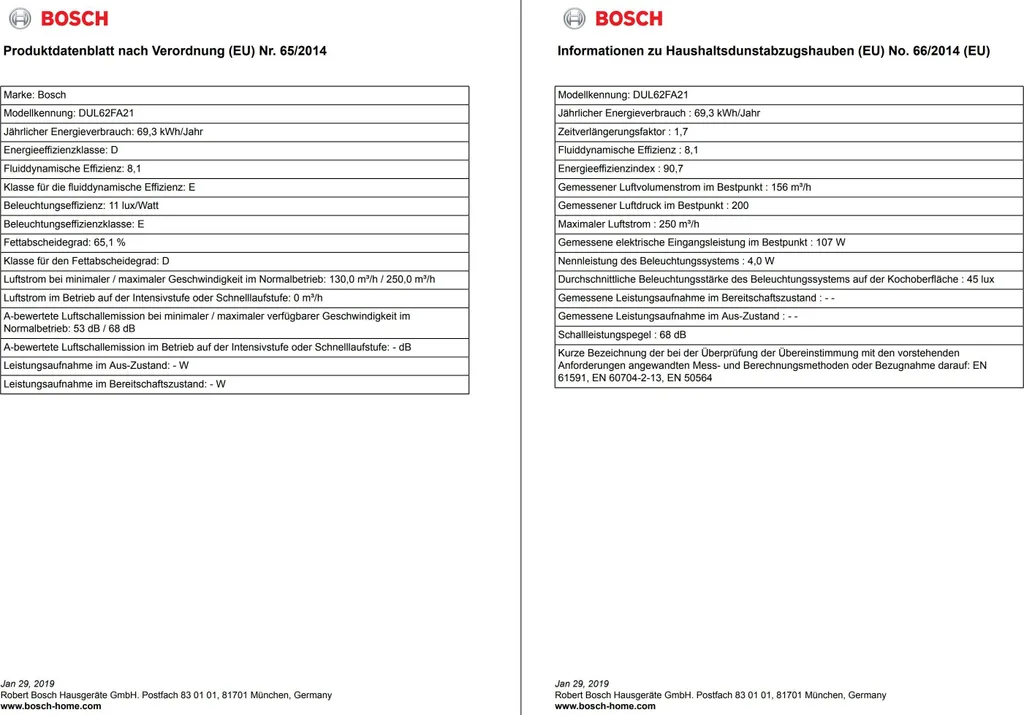

Eu energy label
Features
Operating instructions
User manual
Bosch under-cabinet cooker hood DUL62FA21 60 cm white
Infinitely adjustable glass air deflector
Push-button switch
3 power levels
Exhaust duct dimensions Ø 120 mm, 100 mm
Fleece filter
with backflow flap
Optional

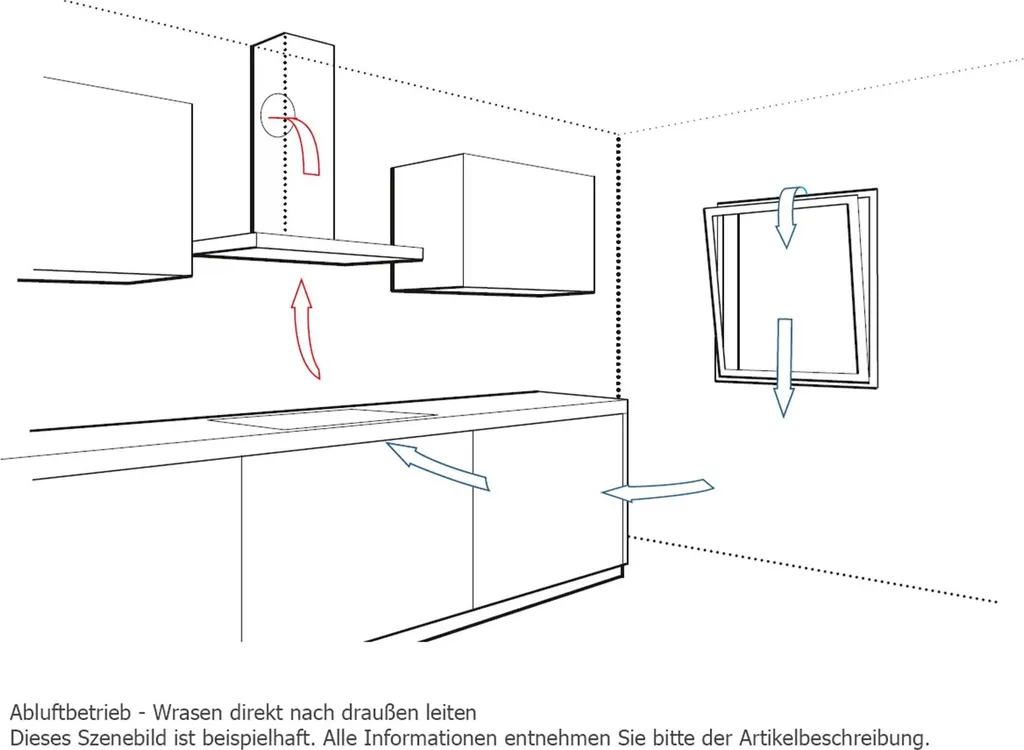

Exhaust air
- or
Recirculation mode
Exhaust air connection possible at the rear or top
For installation under a wall cabinet or on the wall, as the recirculation outlet (air exit) is located at the front

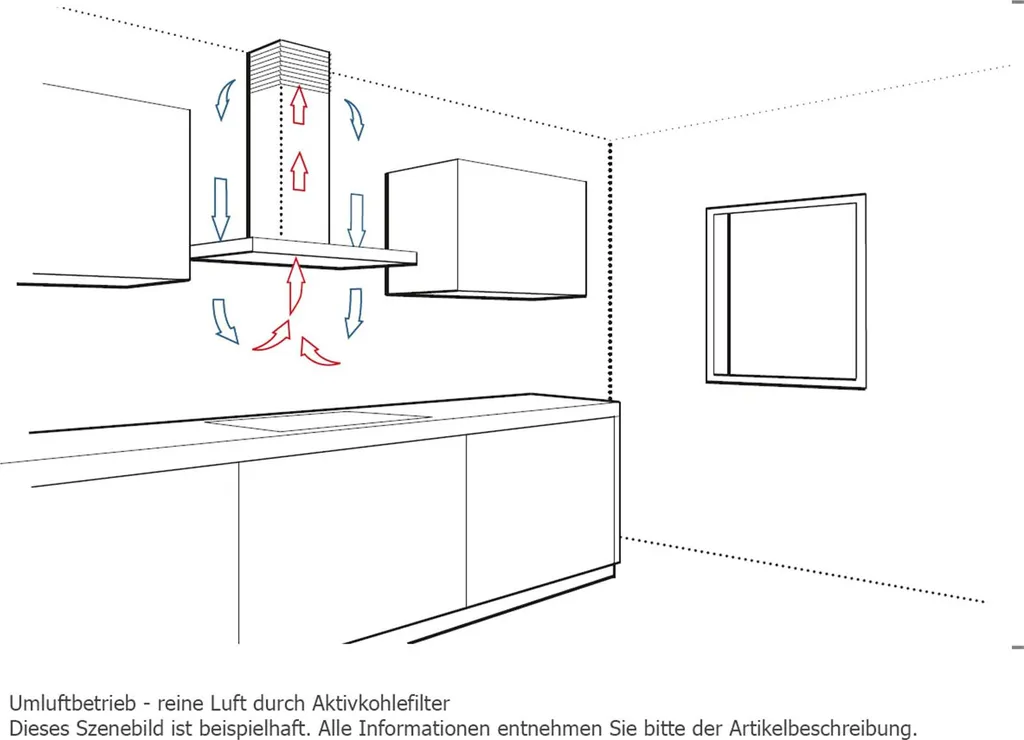

Recirculation mode
Recirculation mode possible; the optional activated carbon filters DHZ2701 available from us neutralize odors in recirculation mode.
Technical information
For installation under a wall cabinet or on the wall
An activated carbon filter is required for recirculation mode
Dimensions
Appliance dimensions (H x W x D): 150 x 600 x 482 mm
Exhaust air connection Ø 120 mm, 100 mm
Total connected load: 119 W

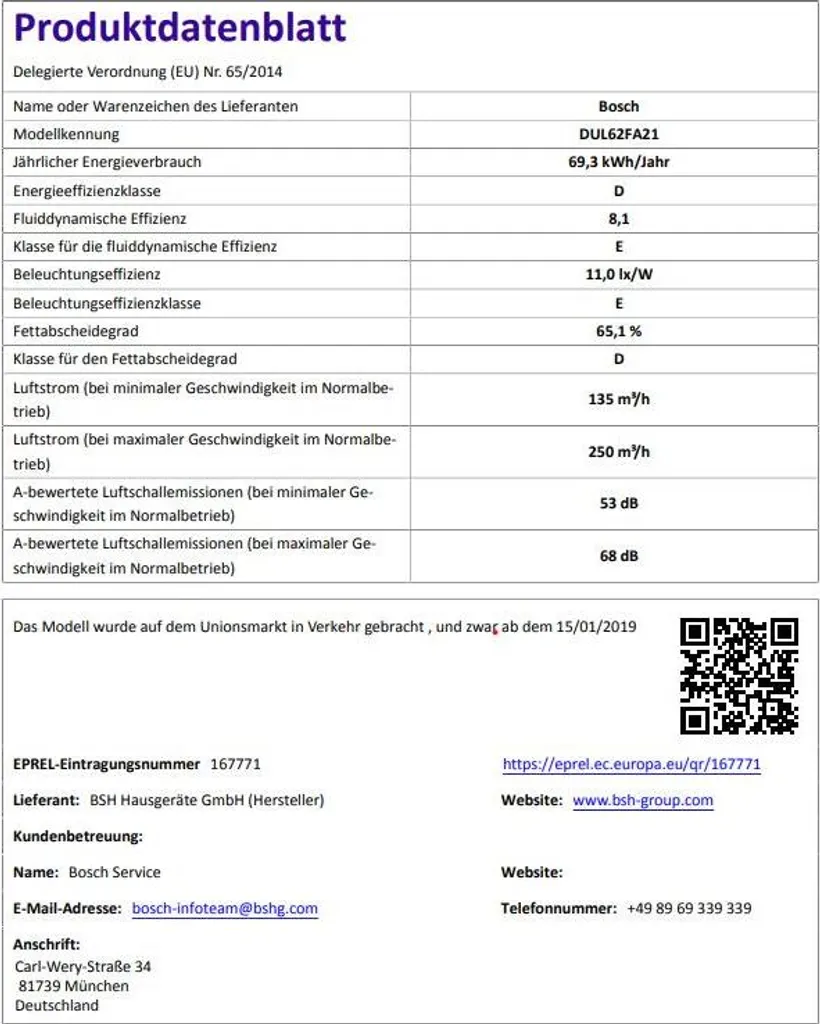

Consumer data:
Weighted annual energy consumption in kWh: 69
Fluid dynamic efficiency (Eu scale) from A to G, best value: A): E
Lighting efficiency (Eu scale from A to G, best value: A): E
Grease filtering efficiency (Eu scale from A to G, best value: A): D
Airborne acoustical noise emissions in dB: 68
Operating mode and performance
Noise levels according to En 60704-3 and En 60704-2-13 max. normal setting exhaust air operation: 68 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
Exhaust air performance according to En 61591: max. 250 m³/h
trong> D (on a scale from
to D
Average energy consumption: 70 kWh/year*
Fan*
Grease filter*
Lighting*
Noise min./max. normal setting: 53/68 dB
Workplace lighting with 1 x Led 4W E14
Illuminance: 45 lux
Color temperature: 3000 K
Discover the Bosch DUL62FA21 under-cabinet extractor hood – an elegant solution that not only makes your kitchen shine but also ensures a clean and pleasant indoor climate. With its continuously adjustable airflow and three power levels, it adapts seamlessly to your cooking habits, while the efficient fleece filter and optional activated carbon filtration neutralize unpleasant odors. Whether wall-mounted or installed under a wall cabinet, this extractor hood integrates perfectly into any kitchen style. Flexibility is offered by the choice between ducted and recirculating operation, as well as the variable connection options at the top or rear. Furthermore, the integrated Led lighting ensures optimal visibility on your work surface without obstructing your view.
Bosch DUL62FA21 Under-Cabinet Extractor Hood 60 cm White
The Bosch DUL62FA21 is a powerful and Space-saving built-in extractor hood from the Bosch Series 2. It combines efficient air purification with easy operation and durable technology. Thanks to its compact design, it fits perfectly under wall cabinets or can be mounted directly on the wall. Ideal for small and medium-sized kitchens.
Technical Data:
Product Type: Built-in Extractor Hood
Manufacturer: Bosch
Model: DUL62FA21
Series: Series 2
Color: White
Material: Painted Steel
Width: 600 mm
Height: 150 mm
Depth: 482 mm
Weight: approx. 5.5 kg
Performance and Consumption:
(Scale A to G)
Maximum Extraction Rate: 250 m³/h
Maximum Recirculation Rate: 80 m³/h
Maximum Sound Power Level: 68 dB
Minimum Sound Power Level: 53 dB
Motor power consumption: 115 W
Total connected load: 119 W
Voltage: 220 to 240 V
Frequency: 50 Hz
Current: 10 A
Annual energy consumption: 69.3 kWh
Operation and functions:
Control: Mechanical with slide switch
Power levels: 3 fan speeds
Operating modes: Extraction or recirculation
Integrated backflow preventer
Led lighting 1 x 4 W warm white approx. 3000 K
Illuminance approx. 45 lux
Filters and accessories:
Grease filter: Fleece filter
Replaceable filter
Activated carbon filter optional for recirculation operation
Exhaust duct diameter 120 mm, alternatively 100 mm
Adapter ring included
Installation and notes:
Installation type: Undercounter or wall mounting
Recommended minimum distance to Cooking zone: 65 cm
Suitable for electric and gas cooktops
Connection cable length: approx. 1.3 m
Mains plug included
Advantages:
Compact design for small kitchens
Efficient air purification with three power levels
Energy-saving Led lighting
Easy operation via slide switch
Robust and durable design
Flexible use in ducted or recirculating mode
Scope of delivery:
Bosch DUL62FA21 extractor hood
Fleece grease filter
Mounting material
Instruction manual
Manufacturer information
in accordance with the information obligations of the Gpsr Product Safety Ordinance
Bsh Hausgeräte GmbH
Carl-Wery-Straße 34
81739 Munich
: bosch-infoteam@bshg.com
Tel.: +49(0)89/4590-00
Bosch Mda Ub Hood DUL62FA21
Manufacturer
: Bosch Mda
Designation
: Ub Hood Series 2
Type
: DUL62FA21
>: D
Spectrum
: up to D
Design
: Undercounter unit
Housing basic color
: white
Type of airflow
: Recirculating air operation
Power control
: 3 stages
Voltage
: 220..240 V
Housing material
: other
Frequency
: 50 Hz
Fan position
: Motor in housing
Perimeter extraction
: no
Connected load
: 119 W
Chimney height
: 150 mm
Overall height
:150 mm
Width
:600 mm
Depth
:482 mm
Switch type
:Slider control
Run-on timer
:No
Max. fan output exhaust mode
:250 m³/h
Max. fan output recirculation mode
:80 m³/h
Noise emission
:68 dB(A) re 1 pW
Noise reduction
:No
Lighting type
:Led
Exhaust duct diameter
:100..120 mm
Grease filter material
:Non-washable synthetic
Average annual energy consumption
:69.3 kWh
Power consumption in off mode
:0 W
for the Fluid dynamic efficiency
Lighting efficiency class
For grease separation efficiency
Bosch Mda Ub hood DUL62FA21: further details
Operating mode and performance Noise levels according to En 60704-3 and En 60704-2-13 max. normal setting Exhaust air operation: 68 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure) Exhaust air performance according to En 61591: max. 250 m³/h (on a scale from to D) Average energy consumption: 69.3 kWh/year* Fan* Grease filter* Lighting* Noise min./max. normal setting: 53/68 dB Workplace lighting with 1 x Led 4W E14 Illuminance: 45 lux Color temperature: 3000 K Comfort Slide switch 3 power levels Selectable exhaust or recirculation operation Supplied with backflow flap Environment and safety Fleece filter Stepless Adjustable glass air deflector. Technical information: For installation under a wall cabinet or on the wall. A standard activated carbon filter is required for recirculation mode (optional accessory). Dimensions: Appliance dimensions (H x W x D): 150 x 600 x 482 mm. Exhaust duct Ø 120 mm, 100 mm. Total connected load: 119 W. Included: Bosch Mda Ub hood Series 2 DUL62FA21, packaging unit: 1 pc., Ean: 4242005133888. Comfort: Slide switch, 3 power levels, convertible to recirculation mode, with backflow preventer. Environment and safety: Fleece filter, continuously adjustable glass air deflector. Technical information: For installation under a wall cabinet or on the wall, an activated carbon filter is required for recirculation mode. Appliance type: Bosch. DUL62FA21 Built-in Hood, Series 2
Ean Number
4242005133888
Appliance Dimensions (H x W x D) (mm)
150 x 600 x 482 mm
Minimum Distance to Cooktop (Electric) (mm)
650 mm
Minimum Distance to Cooktop (Gas) (mm)
650 mm
Design
Built-in Hood
Installation Type
Built-in Appliance
Net Weight (kg)
8.79 kg
Front Color
White
D )* on an efficiency scale from (very efficient) to D (less efficient)
Control
Mechanical
Fan Efficiency Class
E )* on an efficiency scale from A (very efficient) to G (less efficient)
Max. Fan Performance (Exhaust Mode) (m³/h)
250 m³/h
Max. fan output recirculation mode (m³/h)
80 m³/h
Lighting efficiency class
E )* on an efficiency scale from A (very efficient) to G (less efficient)
Number of built-in lights (pcs.)
1 Led lamp with 4W E14
Illuminance (lux)
45 lux
Color temperature (K)
3000 K
Grease filter efficiency class
D )* on an efficiency scale from A (very efficient) to G (less efficient)
Grease filter material
Fleece filter
Sound power level (dB)
53/68 dB
Connected load (W)
119 W
Voltage (V)
220-240 V
Frequency (Hz)
50 Hz
Exhaust duct diameter (mm)
100/120 mm
Connection cable length (mm)
145 mm
Plug type
Schuko/Gardy with grounding
This hood can be used in two operating modes: exhaust or recirculation mode
An activated carbon filter is required for recirculation mode
Fan performance in exhaust mode according to En 61591: max. normal setting: 250 m³/h
Noise min./max. Normal setting: 53/68 dB
Comfort
Slide switch
3 power levels
with backflow preventer
Environment and safety
Fleece filter
Infinitely adjustable glass air deflector
Technical information
For installation under a wall cabinet or on the wall
Appliance dimensions (H x W x D): 150 x 600 x 482 mm

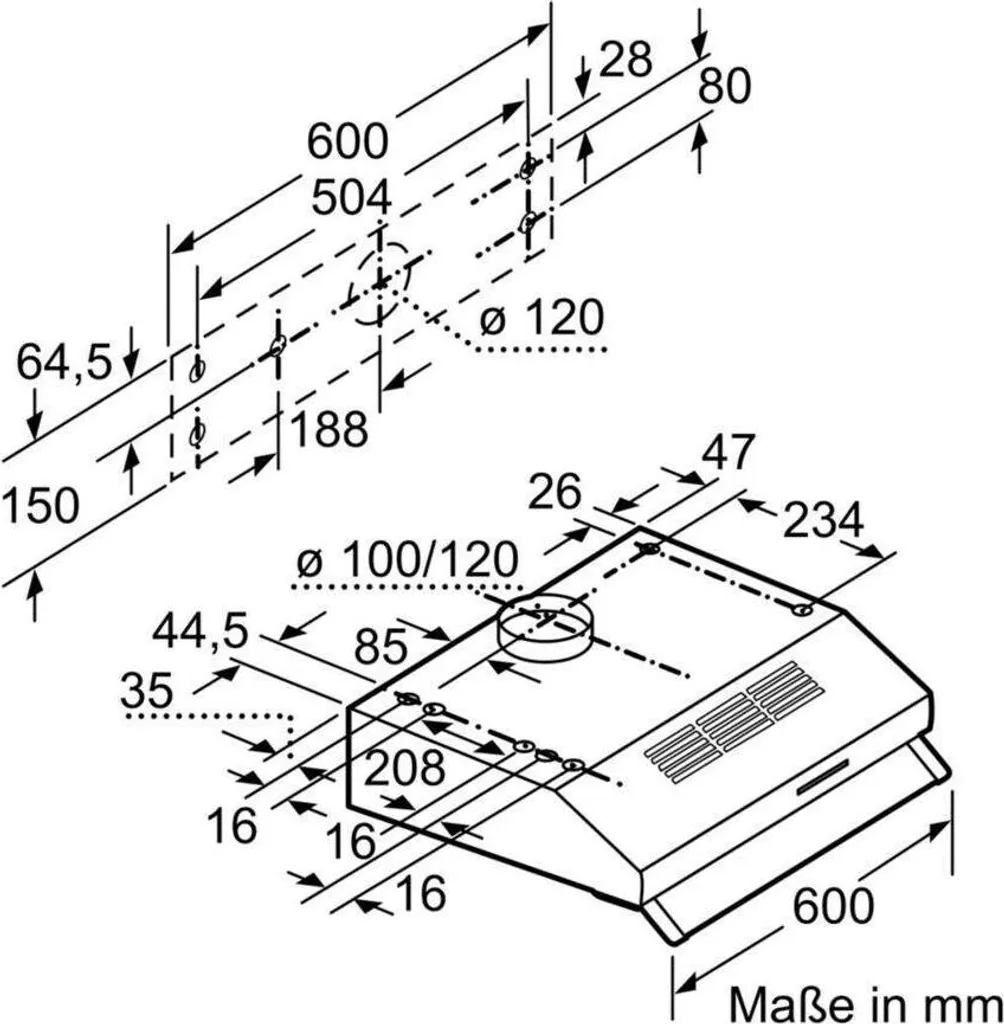

Installation dimensions (H x W x D): 162 x 526 x 290 mm
Exhaust duct: Ø 120 mm, 100 mm
Total connected load: 119 W
Bosch DUL62FA21 Extractor hood
For installation under a wall cabinet or on the wall
Suitable for ducted or recirculating operation
Non-return valve
Fleece filter
3 power levels
Maximum air extraction: 250 m³/h
Maximum air circulation: 80 m³/h
Led lighting
Number of lamps: 1
Dimensions: 60 x 15 x 48.2 cm
Color: white
Bosch DUL62FA21 Series 2 Built-in Cooker Hood 60 cm, White
Led lighting: for perfect illumination of the cooking area with extremely low energy consumption.
Bosch DUL62FA21 Cooker Hood
Bosch DUL62FA21 Cooker Hood
Bosch DUL62FA21 Cooker Hood
Bosch DUL62FA21 Cooker Hood
Bosch DUL62FA21 Cooker Hood
___HtM1P14CEhO1D3R___
Maximum extraction rate:
250 m³/h
Extraction type:
Guided
Fluid dynamic efficiency class:
Lighting efficiency class:
Oil filter efficiency class:
Number of speeds:
Noise level:
68 dB
Noise level (low speed):
53 dB
Type:
Wall-mounted
Product color:
White
Control:
Buttons
Cable length:
1.45 m
Exhaust connection diameter:
12 cm
Grease filter type:
Lamp power:
4 W
Number of lamps:
1 bulb(s)
Bulb type:
Led
Light intensity:
45 lux
Lighting position:
Front
Lighting efficiency (Le):
11 lux per watt
dt>
Annual energy consumption:
69.3 kWh
Scale:
to E
Connection rating:
119 W
Motor power:
115 W
Ac input voltage:
220-240 V
Ac input frequency:
50 Hz
Width:
600 mm
Depth:
482 mm
Height:
150 mm
Weight:
5.68 kg
Grease filter efficiency (Gfe):
65.1%
Fluid dynamic efficiency (Fde):
8.1
Eu plug
Specifications:
Performance:
- Maximum extraction.
Performance: 250 m³/h.
- Grease filter.
- Number of speeds: 3.
- Noise level: 68 dB
Design:
- Light bulb.
Power: 4 W.
- Cable length: 1.45 m.
- Built-in.
Display: N.
- Exhaust connection diameter: 12 cm
Filtration:
- Grease filter type: Fleece.
Power:
- .
- Motor.
Power: 115 W.
Weight & Dimensions:
- Width: 600 mm.
- Depth: 482 mm.
- Height: 150 mm.
- Weight: 5.68 kg.
Width in cm:
Maximum airflow in m³/h:
250
Filter system:
Fleece filter
Extraction system:
Exhaust/Recirculating
Height in cm:
Number of motors:
Number Fan speeds:
Noise emissions dB(A) re1 pW:
Annual energy consumption in kWh:
Product type:
Cooker hood
Fluid dynamic efficiency (Eu):
Lighting efficiency class (Eu):
Grease filtering efficiency class (Eu):
The under-cabinet hood: can be installed under your wall cabinet or on the wall to save space.
Extraction rate: quickly ensures an optimal kitchen climate with up to 250 m³/h.
The Led lighting
Design
Under-cabinet hood 60 cm
Operating mode and performance
Extraction rate according to En 61591 max. 250 m³/h
Noise levels according to En 60704-3 and En 60704-2-13 max. normal setting extraction mode: 68 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
(on a scale from to D)
Average energy consumption: 69.3 kWh/year*
Fan*
Grease filter*
Lighting*
Noise min./max. Normal setting: 53/68 dB
Workplace lighting with 1 x 4W E14 Led
Illuminance: 45 lux
Color temperature: 3000 K
Comfort
Slide switch
3 power levels
With backflow preventer
Convertible to ducted or recirculating operation
An activated carbon filter is required for recirculating operation
Environment and safety
Fleece filter
Technical information
For installation under a wall cabinet or on the wall
Infinitely adjustable glass air deflector
Dimensions H x W x D in mm: 150 x 600 x 482
Exhaust duct Ø 120 mm, 100 mm
Total connected load: 119 W
* In accordance with Eu Regulation No. 65/2014
Bosch Series 2 DUL62FA21. Maximum extraction rate: 250 m³/h, Extraction type: Ducted, Dynamic liquid extraction. Type: Wall-mounted, Product color: White, Control panel type: Buttons. Grease filter type: Fleece. Bulb power: 4 W, Number of bulbs: 1, Bulb type: Led. Annual energy consumption: 69.3 kWh, Connected load: 119 W
Bosch Series 2 DUL62FA21 cooker hood Wall-mounted White D 250 m³/h

Product Information

Dimension : 10000 g
EAN : 4242005133888
Farbe : Weiß
Höhe : 15 cm
Maße : 150 mm (H) x 600 mm (B) x 482 mm (T)
Tiefe : 48.2 cm
Breite : 60 cm
Modell : DUL62FA21
Gewicht : 10000 g
EPREL ID : 167771
Hersteller : Bosch
Montageort : Wand
Lautstärke : 68 dB
Lieferumfang : Bosch DUL62FA21 Unterbauhaube 60 cm Weiß,
Luftdurchsatz : 250 m³/h
Herstellernummer : DUL62FA21
Dunstabzugssystem : Umluftbetrieb
Anzahl Leuchtmittel : 1
Durchmesser Abluftleitung : 120 mm

Images

Reviews

Be the first to review. Login

Does not include VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Qty:

Share on:

Bosch Series 2 DUL62FA21 Under-Cabinet Hoods - Whi...

Cash on Delivery (COD)

Cash on Delivery is a payment method for customer orders of Honest Forwarder throughout the UAE and KSA.

For the Cash on delivery orders, you pay at the time the order is delivered by the delivery driver and the driver only accepts cash.

How cash on delivery (COD) works?

Choose Cash On Delivery as your payment method at the checkout page when you place your order.
Send us the order ID over WhatsApp. The order ID is shown in the Cash On Delivery confirmation page or email. Until this order ID verification is over, we can’t process your order.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
The delivery driver will collect the due amount for the order. The driver only accepts cash. Kindly make sure the exact amount is ready in cash for collection.

Product Return and cancellation

In the event of cancellation of your order, please write to us immediately at support@honestforwarder.com. It must be done as soon as possible, before the order is dispatched to the airport for departure.

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

We can’t accept the product return for a mere change of minds for the exchange or replacement after delivery. The return request is accepted only when it is due to product defect, damage reported on delivery or wrong item.

Credit Card & Debit Card

Honest Forwarder partners with Telr, a payment gateway company with the track record and presence in UAE, to offer a safe and secure credit/debit card processing.

Your transaction will be settled in SAR. Therefore, your bank will not charge any fee for the foreign currency conversion.

How Credit Card/Debit Card works?

Choose Credit Card/Debit Card as your payment method at the checkout page when you place your order.
Press Proceed to Pay at the checkout page and enter your credit card information in the next page of Telr, our Credit card payment gateway partner. Honest Forwarder never stores your credit card information.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
Any issue on processing your order, kindly report to us immediately at support@honestforwarder.com or through Contact Us page.

Product Return and Cancellation

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

Category links

Social Media links

Bosch Series 2 DUL62FA21 Under-Cabinet Hoods - White

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

Bosch Series 2 DUL62FA21 Under-Cabinet Hoods - Whi...

Category links

Social Media links

Bosch Series 2 DUL62FA21 Under-Cabinet Hoods - White

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

Bosch Series 2 DUL62FA21 Under-Cabinet Hoods - Whi...

Cash On Delivery Information

Cash on Delivery (COD)

Credit Card & Debit Card Payment Information

Credit Card & Debit Card

Max weight for health supplements.

VAT and Customs Duty For Oman

VAT and Customs Duty For Qatar

VAT and Customs Duty For Bahrain

Ask for price
