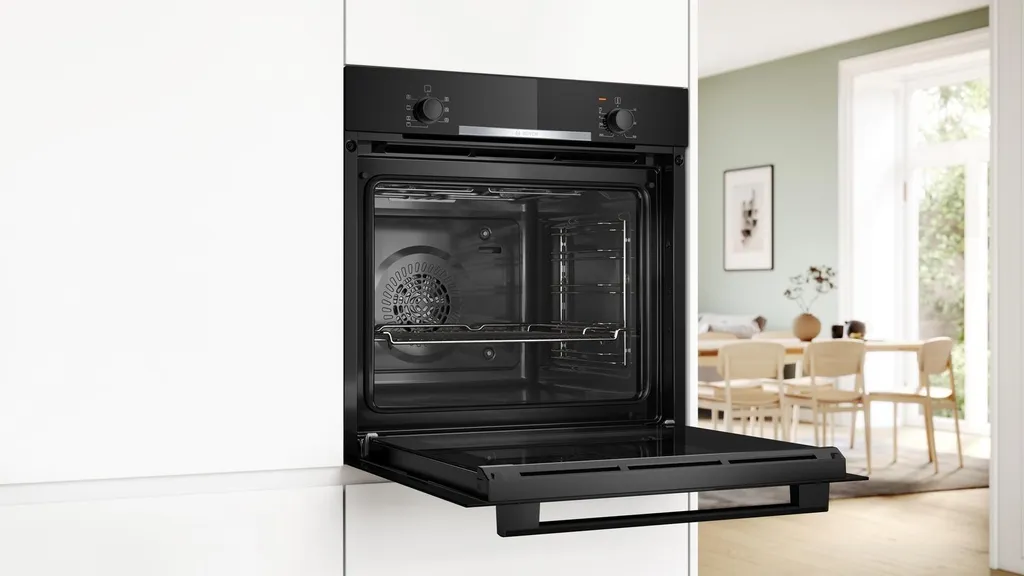

Bosch HBA510BA3 Pyrolytic Oven Black

Bosch

SAR 1,975.00
+ SAR 4,806.00 Air Shipping

Includes any applicable VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Description

Oven Type and Heating Modes
Oven with 5 heating modes: 3D hot air, top/bottom heat, convection grill, large-area grill, gentle hot air
Temperature control from 50 °C - 275 °C
Oven capacity: 71 l
Accessory rack / pull-out system:
Shelf levels: 5
Pull-out system can be retrofitted
Design
Rotary selector, round control knobs
Oven interior: anthracite
Cleaning
Full glass inner door
Convenience
Visual heating indicator
Auto start
Aluminum oven handle
Rapid heating: Quickly reaches the target temperature without increased energy consumption
Halogen interior lighting
Cooling fan

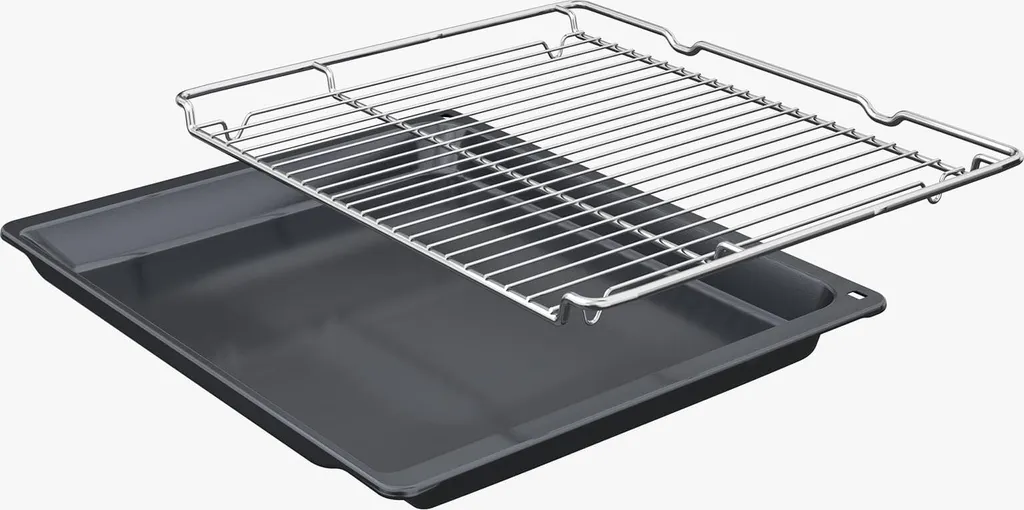

Accessories
Combination rack
Large universal pan
Environment and Safety
Low door temperature
Triple-glazed door
Technical Information
Length of connection cable: 120 cm
Nominal voltage: 220 - 240 V
Total electrical connection rating: 3.4 kW

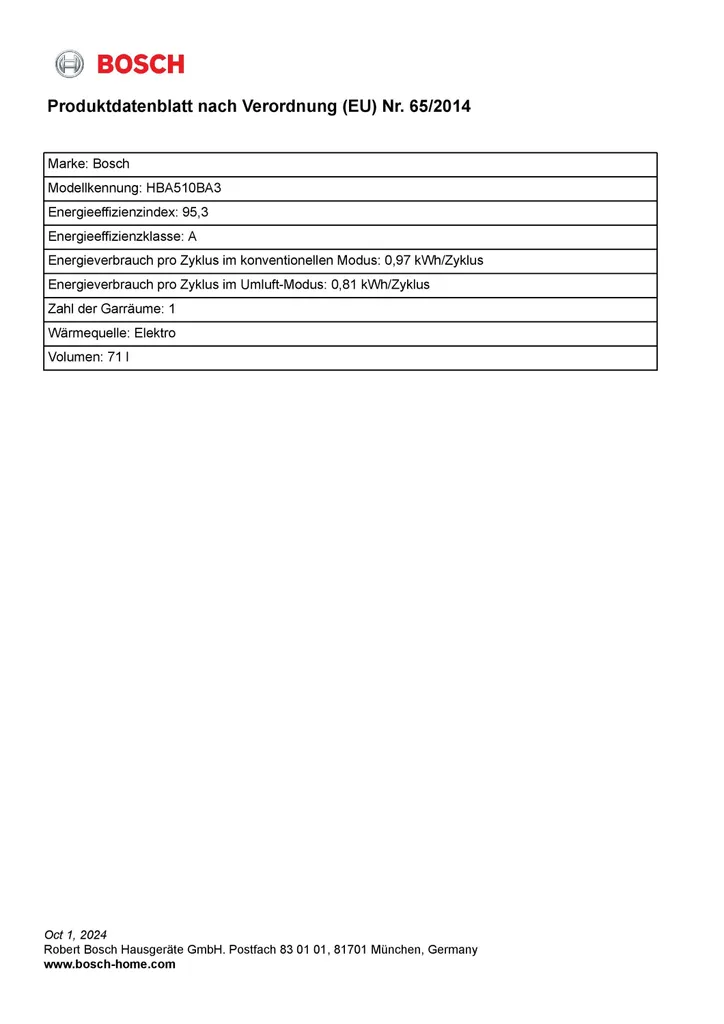

em. Eu No. 65/2014): A (on a scale from A+++ to D)
Energy consumption per cycle in conventional mode: 0.97 kWh
Energy consumption per cycle in fan-assisted mode: 0.81 kWh
Number of cooking compartments: 1
Heat source: electric
Interior volume: 71 l
Dimensions
Appliance dimensions (H x W x D): 595 x 594 x 548 mm
Niche dimensions (H x W x D): 595 mm x 560 mm x 550 mm

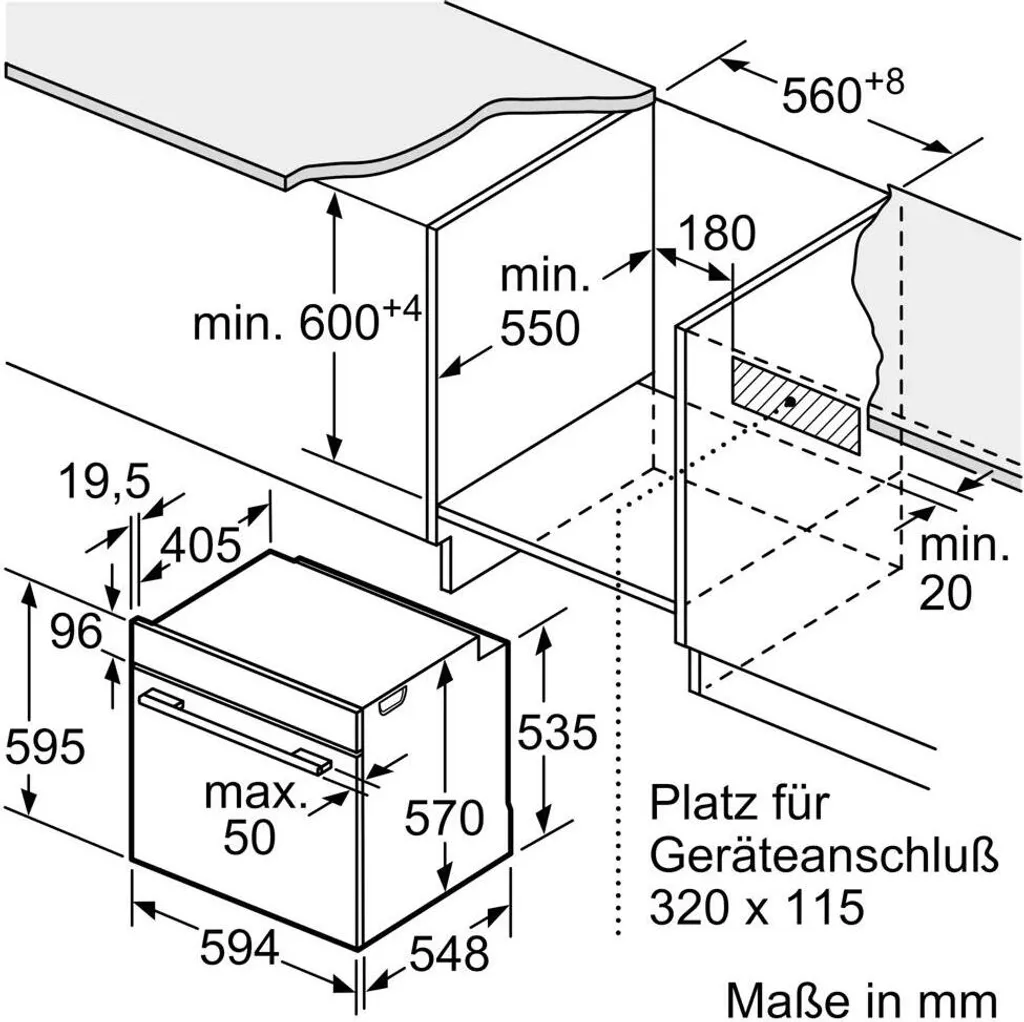

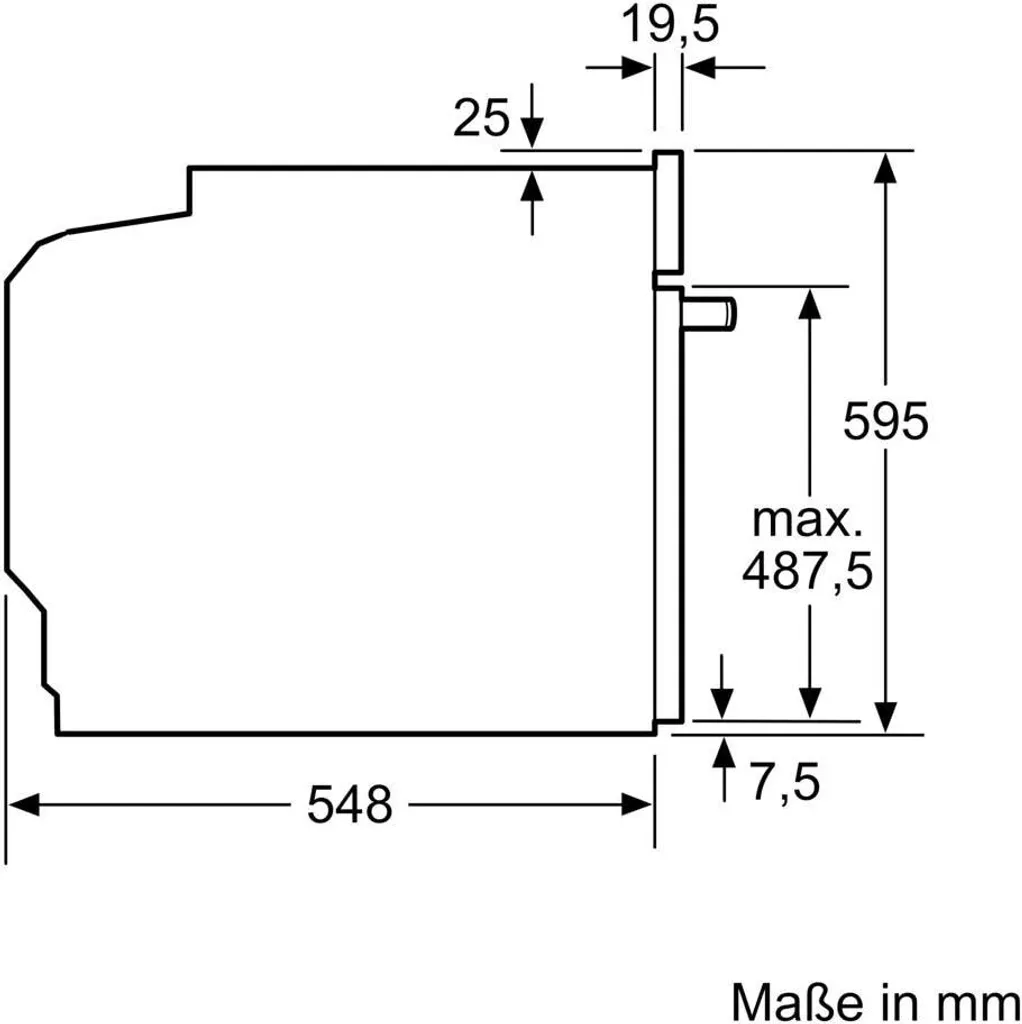

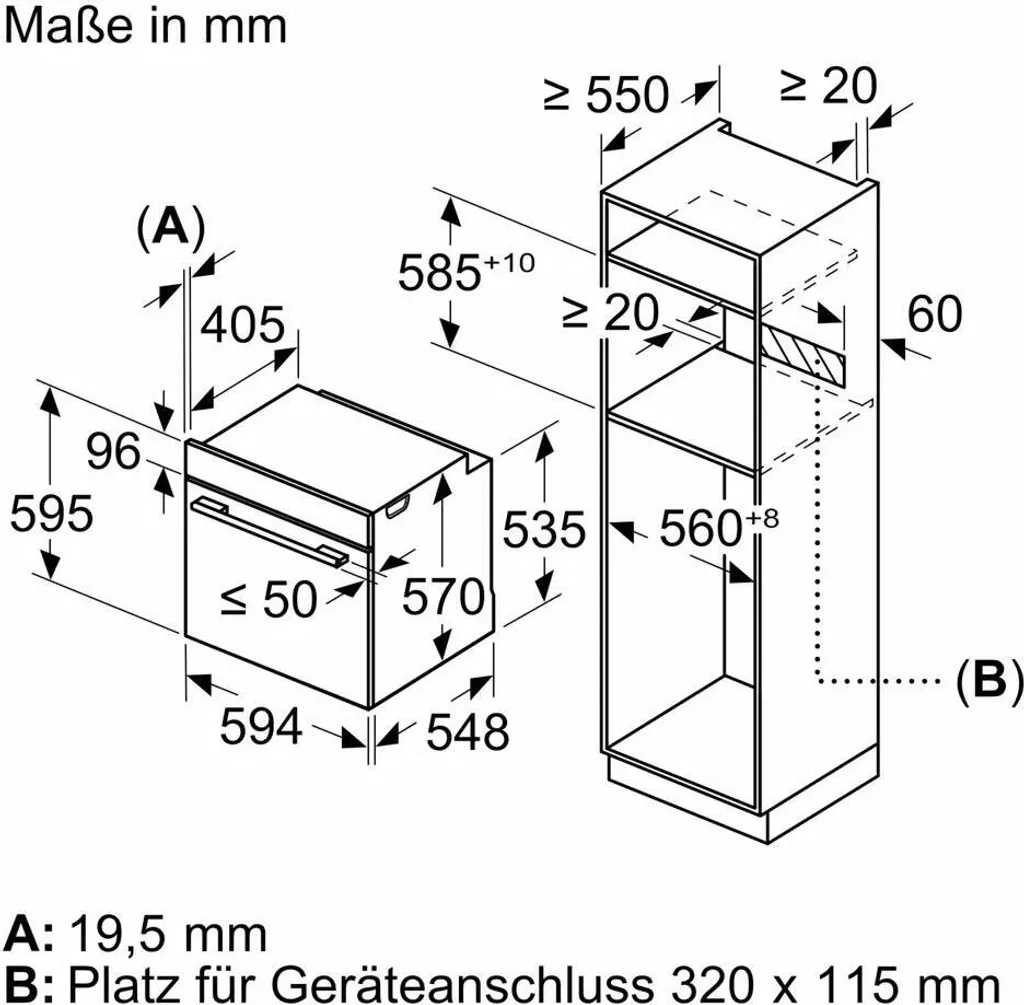

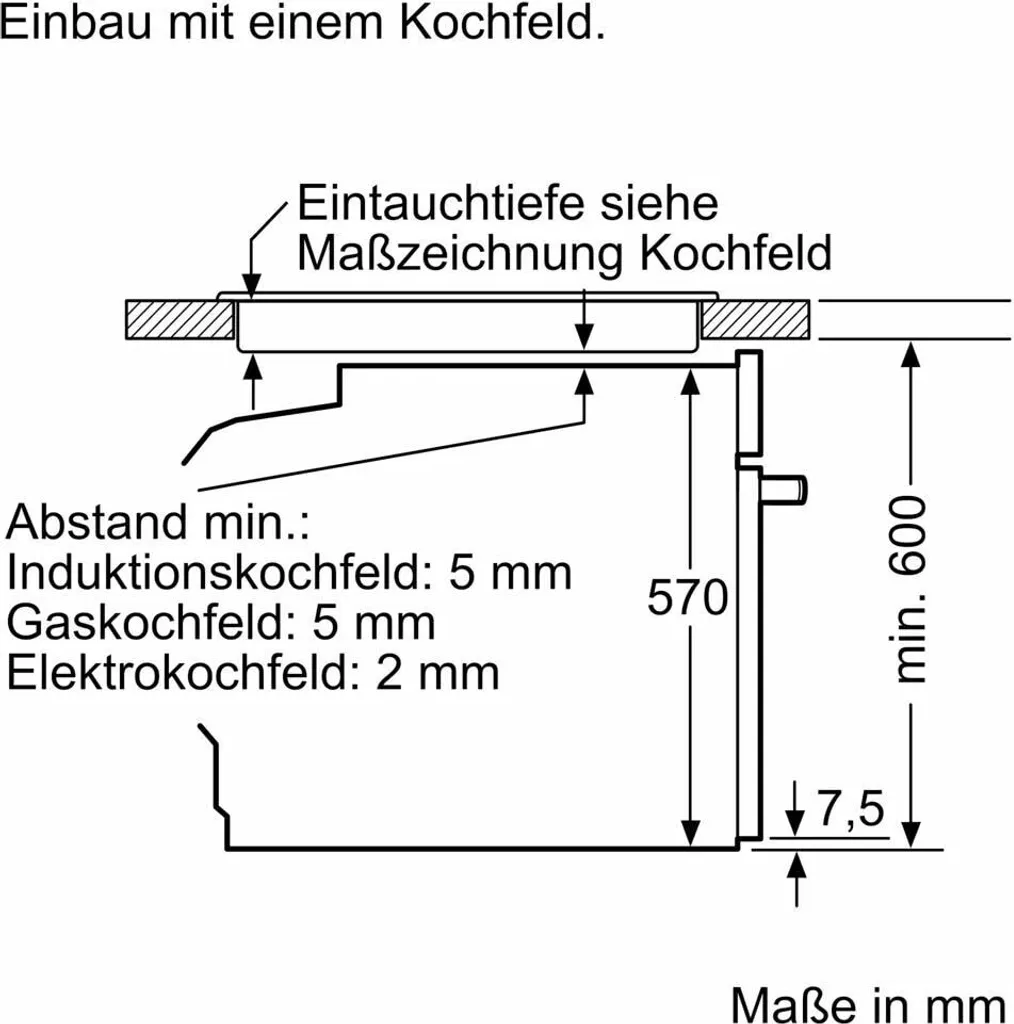

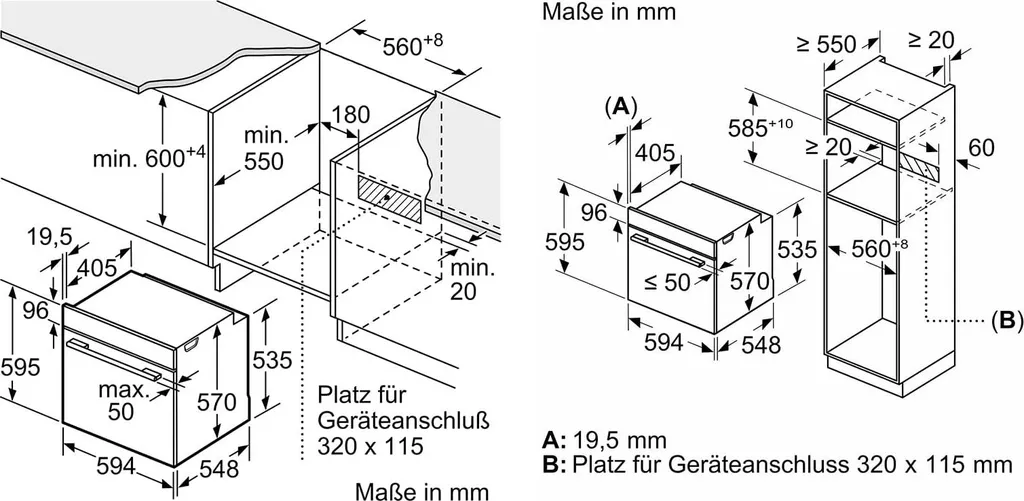

"Please refer to the technical drawing for dimensions and installation instructions for this appliance"
Product series
: Series 2
Appliance color
: Black
Product base color
: Black
Oven door color / material
: Black
Air fry function
: No
Design
: Built-in
Control
: Mechanical
Control Panel Material
: Glass
Control Elements
: Rotary Control
Integrated Hob Control Units
: No
Oven Capacity
: 71
Door Material
: Glass
Door Hinge
: Hinged Door
Energy Source
: Electric
Connected Load
: 3400 W
Fuse Rating
: 16
Voltage
: 220-240 V
Minimum Voltage
: 220 V
Maximum Voltage
: 240 V
Frequency
: 50; 60
Minimum frequency
: 50
Maximum frequency
: 60
Connection cable length
: 120 cm
Plug type
: Schuko/Gardy with grounding
Product depth with door open (90°)
: 104 cm
Appliance height
: 59.5 cm
Interior depth
: 41.5 cm
Interior height
: 35.7 cm
Oven width
: 48 cm
Appliance width
: 59.4 cm
Appliance depth
: 54.8 cm
Packaged height
: 67.5 cm
Packaged width
: 66 cm
Packaged depth
: 69 cm
Niche height Minimum niche height: 58.5 cm; Maximum niche height: 59.5 cm; Minimum niche width: 56 cm; Maximum niche width: 56.8 cm; Niche depth: 55 cm; Net weight: 32.6 kg; Gross weight: 34.1 kg; Energy type: Electric; Operating modes: Large-area grill, hot air, gentle hot air, top/bottom heat, fan-assisted grill; Energy consumption per top/bottom heat cycle (2010/30/Ec): 0.97 kWh/cycle; Eprel Registration Number 2010: 2088474; Energy consumption per hot air cycle (2010/30/Ec): 0.81 kWh/cycle kWh/cycle
index (2010/30/Eu)
: 95.3 %
Usable volume (of the interior) (2010/30/Ec)
: 71 l
Net volume
: 71 l
Energy-smart appliance, can optimize consumption behavior (2017/1369/Eu)
: No
Wireless communication possible
: No
Network broadband technology
: Not applicable
Type of interface for control
: No
Remote upgrade capability
: No
Remote update capability for maintenance capability
: No
Voice control capability
: No
Camera integrated into the appliance
: No
Automatic program
: No
Display on the front panel
: Environmental printing
Rotisserie with Motor: No Fuse: No Included Accessories: 1 x Combination Rack, 1 x Universal Pan Restore Function: No Interior Lighting: Yes Interior Lighting Location: Top Oven Interior Material: Enameled Steel Integrated Cleaning System: No Side Racks/Shelves: Hanging Rack Timer: No Door Opening Type: Drop-Down Door Electronic Clock: No Lockable Door: No Interior Lighting Type: Round Halogen Lamp Baking Tray Guide: Grid Software Update: No bsh-group.com/Product_Shots/3000x3000/20271876_CB734G1B1_PGA6_def.jpg
bosch-home.com/Documents/eudatasheet/de-De/HBA510BA3.pdf
bsh-group.com/Product_Shots/3000x3000/27132417_HBA510BA3_PGA8_def.jpg
bsh-group.com/Product_Shots/3000x3000/25536941_HBA510BA3_PGA2_def.jpg
bsh-group.com/Product_Shots/3000x3000/25715974_HBA510BA3_PGA3_def.jpg[De]
COMBINED_NOMENCLATURE_CODE: 85166080
RECYCLING_WEIGHT_CARDBOARD: 0.970
RECYCLING_WEIGHT_EPS: 0.000
RECYCLING_WEIGHT_PLASTIC: 0.139
RECYCLING_WEIGHT_WOOD: 0.270
RECYCLING_WEIGHT_OTHER: 0.100
RECYCLING_WEIGHT_PACKAGING: 1.479
Oven type and heating mode
Oven with 5 heating modes:
3D hot air, top/bottom heat, convection grill, large-area grill, gentle hot air
Temperature control from 50 °C - 275 °C
Oven capacity: 71 l
Accessory rack / pull-out system
Shelf levels: 5
Pull-out Retrofittable
Design
Rotary selector, round control knobs
Oven interior: anthracite
Xxl oven
Cleaning
Full glass inner door
Comfort
Visual heating indicator
Auto start
Aluminum oven handle
Rapid heating: Quickly reaches the target temperature without increased energy consumption
Halogen interior lighting
Cooling fan
Accessories
1 x combination rack, 1 x universal pan
Environment and safety
Low door temperature
Triple-glazed door
Technical information
Length of connection cable: 120 cm
Rated voltage: 220 - 240 V
Total electrical connection rating: 3.4 kW
em. Eu No. 65/2014): A
)* On a scale from A+++ (very efficient) to D (less efficient)
Energy consumption per cycle in conventional mode: 0.97 kWh
Energy consumption per cycle in fan-assisted mode: 0.81 kWh
Number of cooking compartments: 1 Heat source: electric Interior volume: 71 l
Dimensions
Appliance dimensions (H x W x D): 595 x 594 x 548 mm
Niche dimensions (H x W x D): 595 mm x 560 mm x 550 mm
"Please refer to the technical drawing for dimensions and installation instructions for this appliance"
Product group
Baking and cooking
Brand
Bosch
Appliance type
Built-in oven
International order designation
HBA510BA3
Ean number
4242005464401
Where can the appliance be installed?
Base cabinet, tall cabinet
Integrated hob controls
No
Combinable hob
Appliance color
Black
Operating concept
Rotary knobs only
Number of heating modes
Heating modes
Available temperature range
50-275 °C
Steam technology
Integrated cleaning system
No
Pull-out system
Pull-out can be retrofitted
Door hinge
Bottom
Usable capacity (of the interior) (2010/30/Ec)
71 l
)* On a scale from A+++ (very efficient) to D (less efficient)
Safety features
Integrated accessories
1 x combination rack, 1 x universal pan
Dimensions of the appliance
595 x 594 x 548 mm
Minimum niche height
585 mm
Maximum niche height
595 mm
Minimum niche width
560 mm
Maximum niche width
568 mm
Niche depth
550 mm
Net weight
34.8 kg
Plug type
Schuko/Gardy with grounding
Connection cable type
Connection cable length
120.0 cm
Voltage
220-240 V
Power consumption
3400 W
Fuse rating
16 A
Operating instructions
Supporting functions
No preheating thanks to coolStart
No
Rapid preheating
Pizza setting
No
Crisp function
No
Air-fry function
No
Sensors
Hot air
3D (simultaneous baking on up to three levels)
Oven assistant with voice control
Automatic door opening via voice control
No
Connected home appliances with Home Connect
No
Home Connect features
Special accessories
Key features:
Appliance type: Built-in oven
Design: All black (housing and handle)
Operation: Manual control via fixed knobs
Display: Minimalist design without display
Cleaning: Manual cleaning
Performance and functions:
Heating modes: 5 functions
Important modes: Top/bottom heat, hot air and grill
Oven capacity: 71 liters (Large)
Door: Standard bottom-hinged door
Energy and efficiency:
Energy consumption (Conventional): 0.97 kWh
Energy consumption (Hot air): 0.81 kWh
Index: 95.3%
Dimensions and Installation:
Height: 60 cm
Width: 60 cm
Connection: Electrical connection
Bake on up to three levels simultaneously.
Now you can bake a whole batch of your favorite cookies at once – on up to three levels simultaneously. With 3D hot air, the heat is distributed quickly and evenly throughout the entire oven. You can also prepare two different dishes simultaneously, for example, lasagna for dinner and muffins for the next day, without the flavors mixing.
Number of ovens:
Oven size:
Medium
Oven type:
Electric oven
Total oven capacity:
71 l
Net oven capacity:
71 l
Grill:
Fan-assisted cooking:
Top and bottom heat:
Rapid heating:
Oven thermostat range:
50 - 275 °C
3D fan-assisted cooking:
Number of cooking programs:
Appliance placement:
Built-in
Product color:
Black
Controls:
Rotary knobs
Control position:
Front
Handle color:
Black
Knob color:
Black
Door hinge:
Down
Door material:
Glass
Oven door opening:
Drop-down opening
Cable length:
1.2 m
Energy consumption (conventional):
0.97 kWh
Energy consumption (forced convection):
0.81 kWh
Scale:
A+++ to D
Connected load:
3400 W
Ac input voltage:
220 - 240 V
Ac input frequency:
50 - 60 Hz
Index (Eei):
95.3
Current:
16 A
Power connection type:
Mains plug
lt):
Plug type:
Type F
Interior lighting:
Lamp type:
Halogen
Bosch technologies (Cooking):
3D Hot Air
Installation space width:
56.8 cm
Installation space depth:
55 cm
Installation space height:
59.5 cm
Width:
594 mm
Depth:
548 mm
Height:
595 mm
Weight:
34.8 kg
Installation compartment width (min):
56 cm
Installation space height (min):
58.5 cm
Packaging width:
660 mm
Packaging depth:
690 mm
Packaging height:
675 mm
Baking tray:
Bosch oven HBA510BA3 Usable volume 71 l Dimensions WxHxD 59.4 cm x 59.5 cm x 54.8 cm
n/a.

Product Information

Dimension : 34 kg
EAN : 4242005464401
Farbe : Schwarz
Höhe : 59.5 cm
Maße : 60 x 60 cm
Tiefe : 54.8 cm
Bauart : Einbau
Breite : 59.4 cm
Modell : HBA510BA3
Gewicht : 34 kg
EPREL ID : 2088474
Bluetooth : Nein
Hersteller : Bosch
Lieferumfang : Bosch HBA510BA3 Pyrolyse Backofen Schwarz,1 x Kombirost,1 x Universalpfanne,
Dampffunktion : Nein
Fassungsvolumen : 71 l
Herstellernummer : HBA510BA3
Versenkbare Drehknöpfe : Nein

Images

Reviews

Be the first to review. Login

Does not include VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Card payment to be settled in SAR. No conversion fee.
Credit card

Qty:

Share on:

Bosch HBA510BA3 Pyrolytic Oven Black

Cash on Delivery (COD)

Cash on Delivery is a payment method for customer orders of Honest Forwarder throughout the UAE and KSA.

For the Cash on delivery orders, you pay at the time the order is delivered by the delivery driver and the driver only accepts cash.

How cash on delivery (COD) works?

Choose Cash On Delivery as your payment method at the checkout page when you place your order.
Send us the order ID over WhatsApp. The order ID is shown in the Cash On Delivery confirmation page or email. Until this order ID verification is over, we can’t process your order.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
The delivery driver will collect the due amount for the order. The driver only accepts cash. Kindly make sure the exact amount is ready in cash for collection.

Product Return and cancellation

In the event of cancellation of your order, please write to us immediately at support@honestforwarder.com. It must be done as soon as possible, before the order is dispatched to the airport for departure.

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

We can’t accept the product return for a mere change of minds for the exchange or replacement after delivery. The return request is accepted only when it is due to product defect, damage reported on delivery or wrong item.

Credit Card & Debit Card

Honest Forwarder partners with Telr, a payment gateway company with the track record and presence in UAE, to offer a safe and secure credit/debit card processing.

Your transaction will be settled in SAR. Therefore, your bank will not charge any fee for the foreign currency conversion.

How Credit Card/Debit Card works?

Choose Credit Card/Debit Card as your payment method at the checkout page when you place your order.
Press Proceed to Pay at the checkout page and enter your credit card information in the next page of Telr, our Credit card payment gateway partner. Honest Forwarder never stores your credit card information.
While we process the international shipping and delivery of your products, please stay updated on the order status through Member page or Order Tracker and emails from us.
Any issue on processing your order, kindly report to us immediately at support@honestforwarder.com or through Contact Us page.

Product Return and Cancellation

In the unlikely event of receipt of a defective product, we either replace the product or refund the money paid for the product, depending on the stock availability by the Seller.

For the payment made by credit/debit card, our payment gateway company will refund the amount in full to your bank account of the card.

For Cash On Delivery orders, we will request your bank account info and wire the refund in full to your bank account, except the COD fee SAR 15 for KSA.

The following are the refund timeliness associated with each payment method.

Payment Method	Refund Method	Refund Timeliness
Credit Card / Debit Card	Credit Card / Debit Card	2-3 Business working days
Cash On Delivery	Refund to Bank Account	2 business working days

Category links

Social Media links

Bosch HBA510BA3 Pyrolytic Oven Black

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

Bosch HBA510BA3 Pyrolytic Oven Black

Category links

Social Media links

Bosch HBA510BA3 Pyrolytic Oven Black

Categories

Description

Product Information

Images

Reviews

Qty:

Categories

Share on:

Bosch HBA510BA3 Pyrolytic Oven Black

Cash On Delivery Information

Cash on Delivery (COD)

Credit Card & Debit Card Payment Information

Credit Card & Debit Card

Max weight for health supplements.

VAT and Customs Duty For Oman

VAT and Customs Duty For Qatar

VAT and Customs Duty For Bahrain

Ask for price
